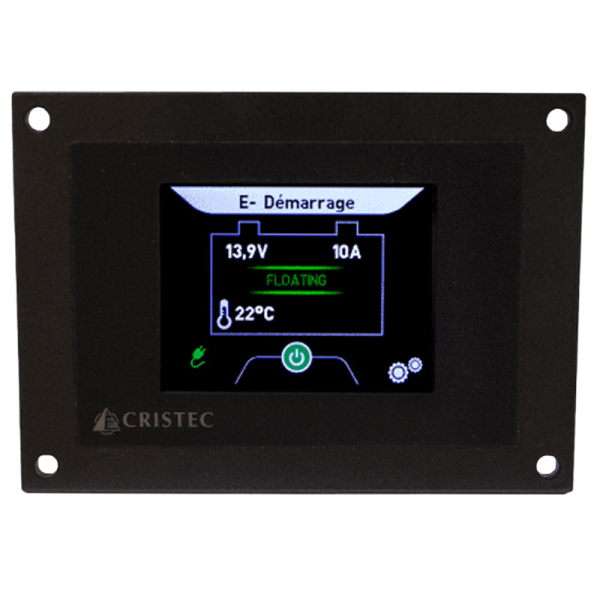

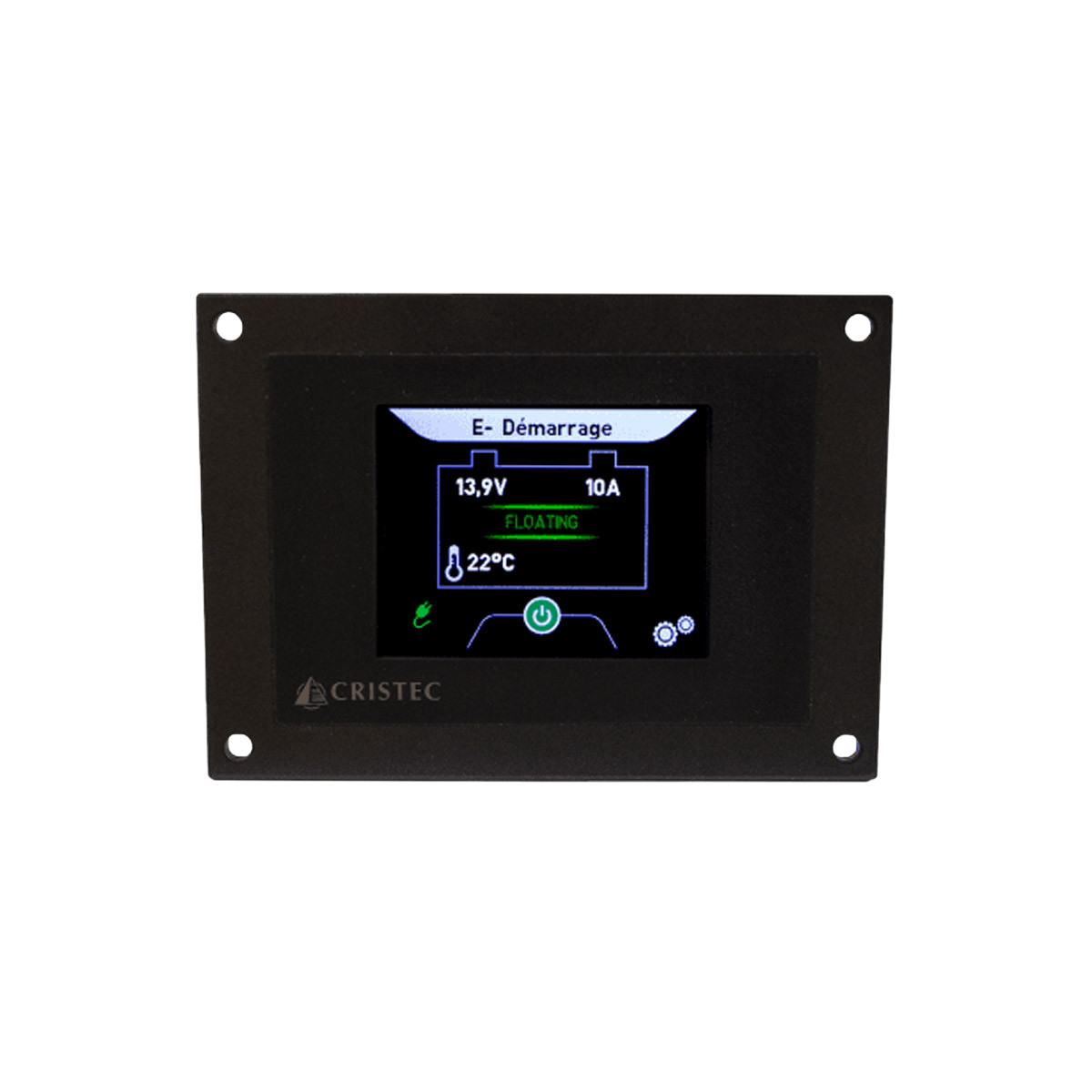

Ypower remote touch display

Ref. YPO-DISPLAY-R

This remote digital display is compatible with all YPOWER chargers and energy units.

Color and touch-sensitive , it features a high-definition reading front panel. It displays in real time all parameters related to battery charging and AC input network.

Read more Features
€248.90 Tax included
Public price
€259.00
Price tax excl. / DOM TOM €207.42
Quantity
IN SUPPLIER STOCK
Delivery times and costs
By buying this product you can collect up to 248 loyalty points. Your cart will total 248 points that can be converted into a voucher of €2.48.
YPO-DISPLAY-R

Data sheet

Product type
Remote control
Description

CRISTEC - YPOWER TOUCH DISPLAY - HD COLOR SCREEN

The display shows all charging parameters when the charger is running, and provides supervision of batteries when not in use.
The 2.5" color screen is touch-sensitive , making navigation simple and intuitive.


SETTINGS

  • Languages
  • Charger: On / Off
  • Backlight: brightness
  • Charger current adjustment: from 100% to 30
  • Alarms: low battery voltage, battery overvoltage, etc.
  • Charger parameters: battery type, Boots ON/OFF, etc.
  • Night mode: enables timed shutdown of charger fan
  • Number and designation of batteries: up to 3 for service, starting, thruster, etc

MAIN FEATURES

  • Weight: 0.5 kg
  • Day/night mode
  • Water resistance: IP65
  • Total charger current
  • Battery voltage (up to 3)
  • Screen dimensions: 51 x 39 mm
  • Dimensions: 105 x 75 x 25 mm
  • AC network status: voltage and frequency
  • Charging status (Boost, Absorption, Floating)
  • Battery pack temperature (if optional sensor connected)

BOX CONTENTS

  • 1 - YPOWER touch display
  • 1 - Grommet
  • 1 - 7 m cable
  • 1 - Interface card
  • 6 - Cable ferrules
  • 2 - 3-point connectors
  • 1 - PDF documentation

Download

Manual CRISTEC YPO Display

CRISTEC YPO Display operating instructions (FR-EN)

Download (2.89M)
