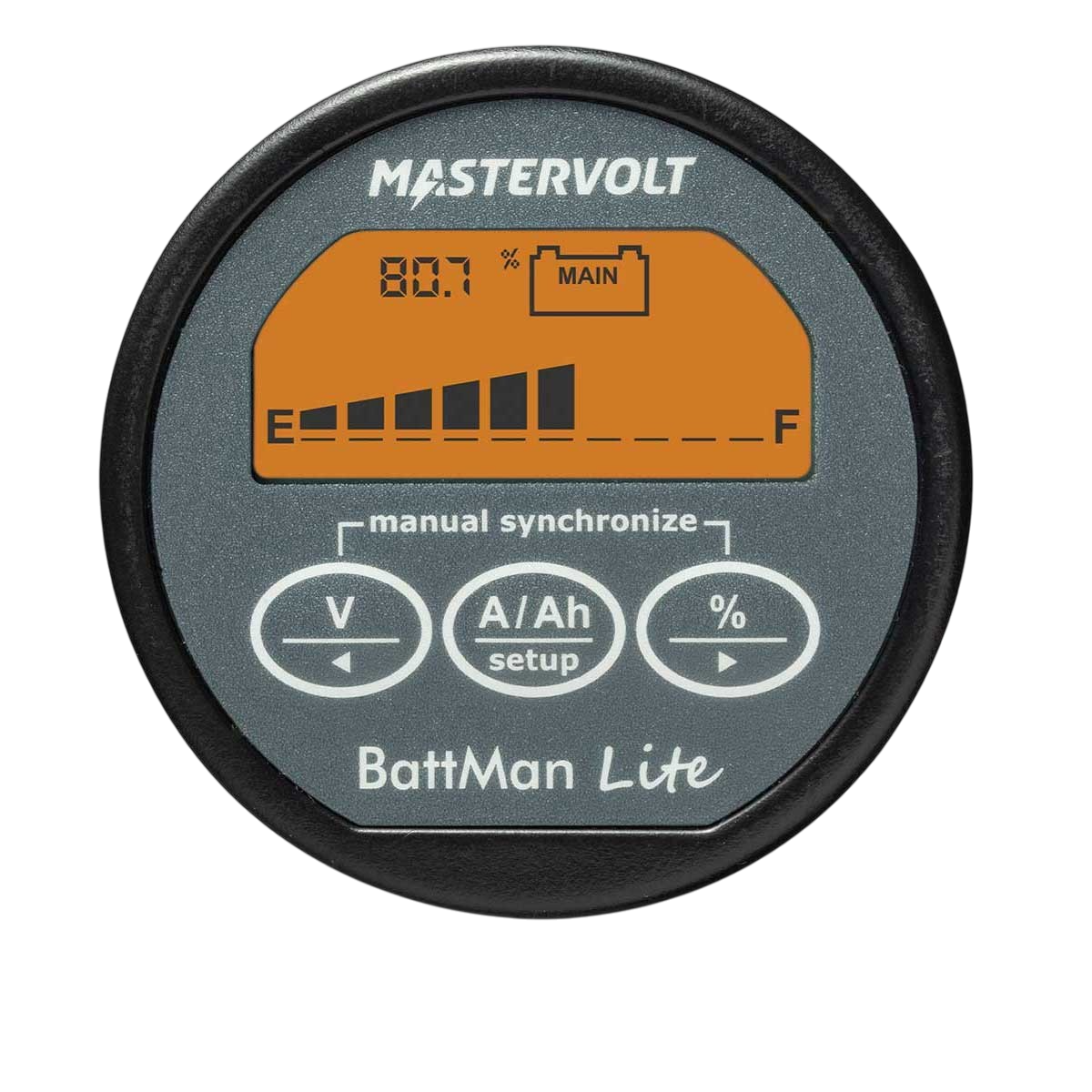

BattMan Lite 12/24V battery controller with shunt

Ref. 70405060

The BattMan Lite battery monitor provides important information on the condition of your batteries (voltage , current , percentage of battery capacity ...).

It warns you when your batteries are almost discharged .

BATTMAN LITE BATTERY CONTROLLER SPECIFICATIONS

Number of battery outputs	2: service (full) & start (voltage)
Display/indicator	voltage, current, amp-hours, percentage of battery capacity
Language display	universal
Depth	72.5 mm
Dimensions	Ø 64mm, depth 79mm
Shunt dimensions, HxWxD	87 x 45 x 35 mm
Weight	150 g
Maximum Ah capacity	9999 Ah (Amperes - hour)
Supply voltage	9-35 V
Voltage range	0-35 V
Shunt specification	500 A/50 mV (service set)
Current measurement range	0-500 A
Battery alarm contact	yes, potential-free
MasterBus compatible	no
Connection cable required (6 wires)	yes

Download

Instruction manual Battman Lite

PDF User Manual BattMan Lite Battery Controller

Download (354.69k)
