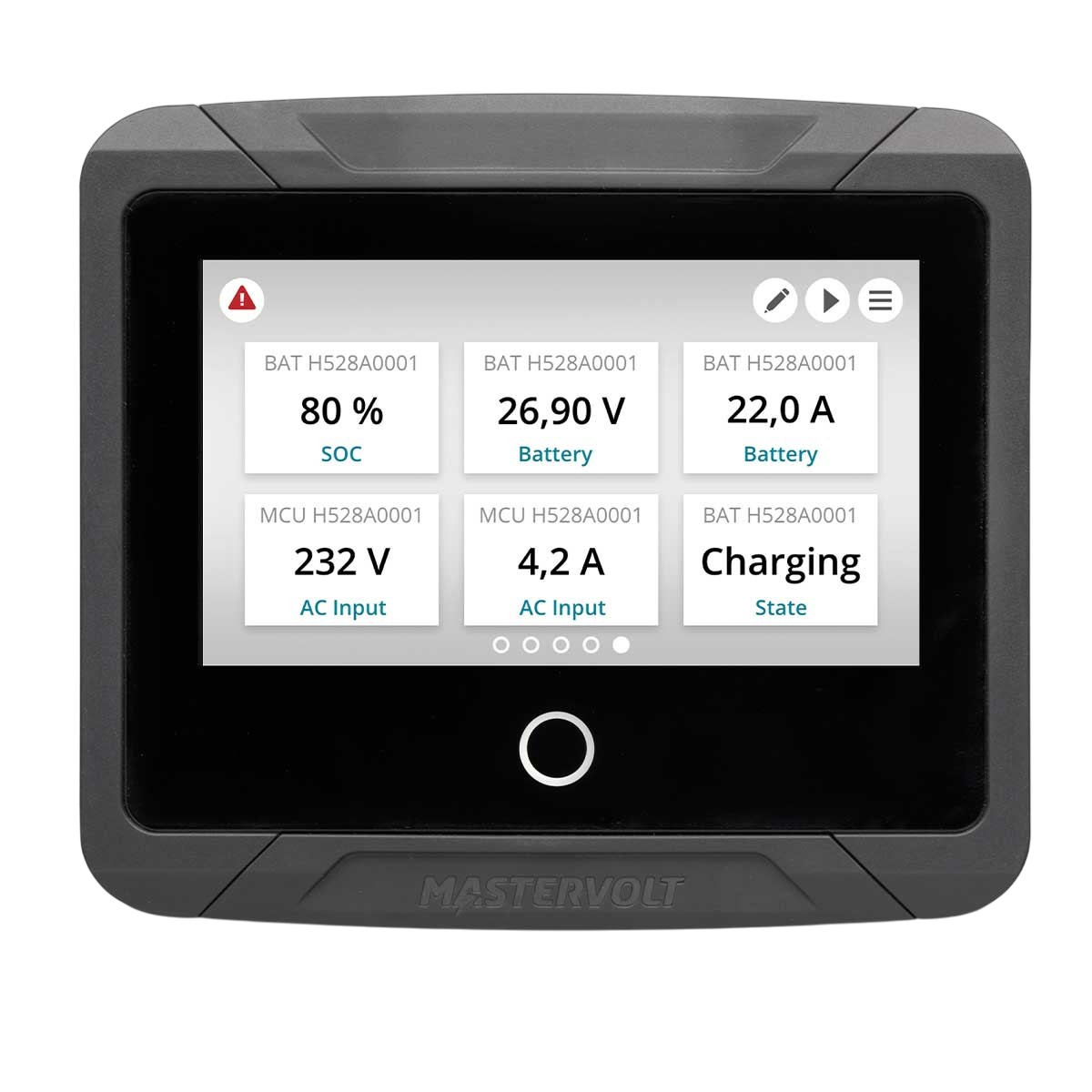

EasyView 5 display
Ref.
77010310
Thanks to its "daylight " control panel and intuitive touchscreen interface , EasyView 5 lets you control your plant with ease Mastervolt with ease.
The EasyView 5 has an elegantly designed, waterproof screen that's highly visible in daylight. This color touchscreen offers you a pleasant experience with its multilingual menu . You can customize the pages to display all the information you need to monitor your plant at a glance.
Read more Features
€356.90
Tax included
Public price
€397.92
Price tax excl. / DOM TOM
€297.42
77010310
Data sheet
- Product type
- MasterBus display
MASTERVOLT - DISPLAY EasyView 5
The EasyView 5 fits into any MasterBus installation . It's perfect for boats , vehicles and fixed installations , thanks to its useful functions and compact size. It can be used in a variety of fields, including boating , mobile (leisure and pro ), infrastructure , offshore , autonomous and industrial . There are no limits!
The display offers many possibilities, such as :
- Creating useful pages to show the data you want to manage your installation
- Modify parameters such as shore power fuse or inverter activation
- Keep your system up to date with notifications . Logs record alarm history , giving you useful information about your plant 's operation .
EASYVIEW 5 TECHNICAL FEATURES
| Power supply | Power supply via MasterBus or 12/24V (9-32V) input |
| Resolution | 480 x 272 pixels |
| Display/indicator | 4.3" high-contrast display |
| Mounting | Surface-mounted, flush-mounted and retrofit of a MasterView Easy |
| Alarms | Integrated buzzer |
| Dimensions, HxWxD | 113 x 127 x 43 mm |
| Weight | 315g |
| MasterBus connection | yes |
| Power consumption | |
| Connections | 2x MasterBus, USB, 12/24V |
| Protection class | iP67 waterproof front panel |
