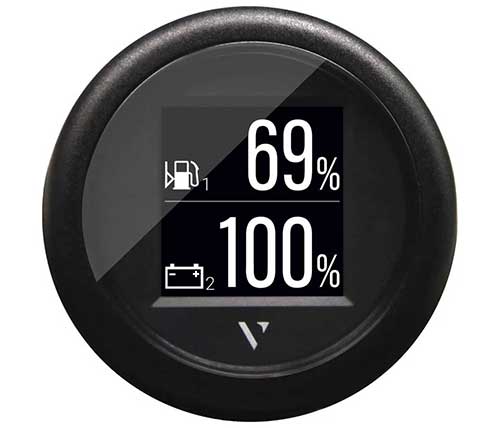

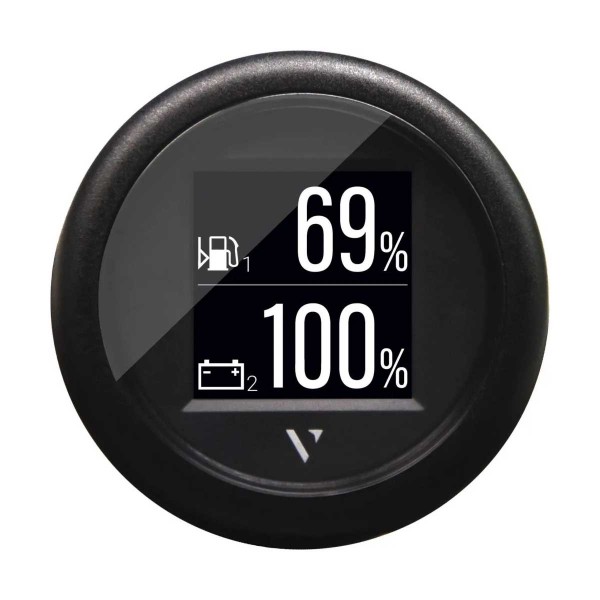

Intelligent battery monitoring kit VL Flex 52 12V

Clear information to manage your battery

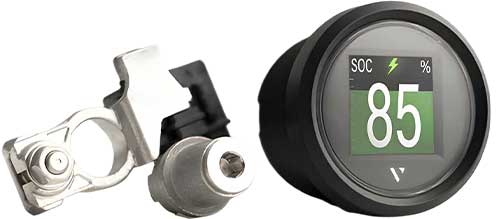

The IBM system combines the VL Flex display and the IBS sensor to keep track of what's really happening to your battery. Displays scroll via the supplied push-button, for fast reading even in bright sunlight.

• Battery voltage in Volts and current in Amperes
• Charge or discharge indication with directional arrow
• SOC and SOH display in percent
• Graphic bar and visual alarms

At a glance, you can visualize remaining autonomy and charge progress, so you can adapt your on-board usage and plan recharges in port or at anchor.

NFC configuration and easy integration

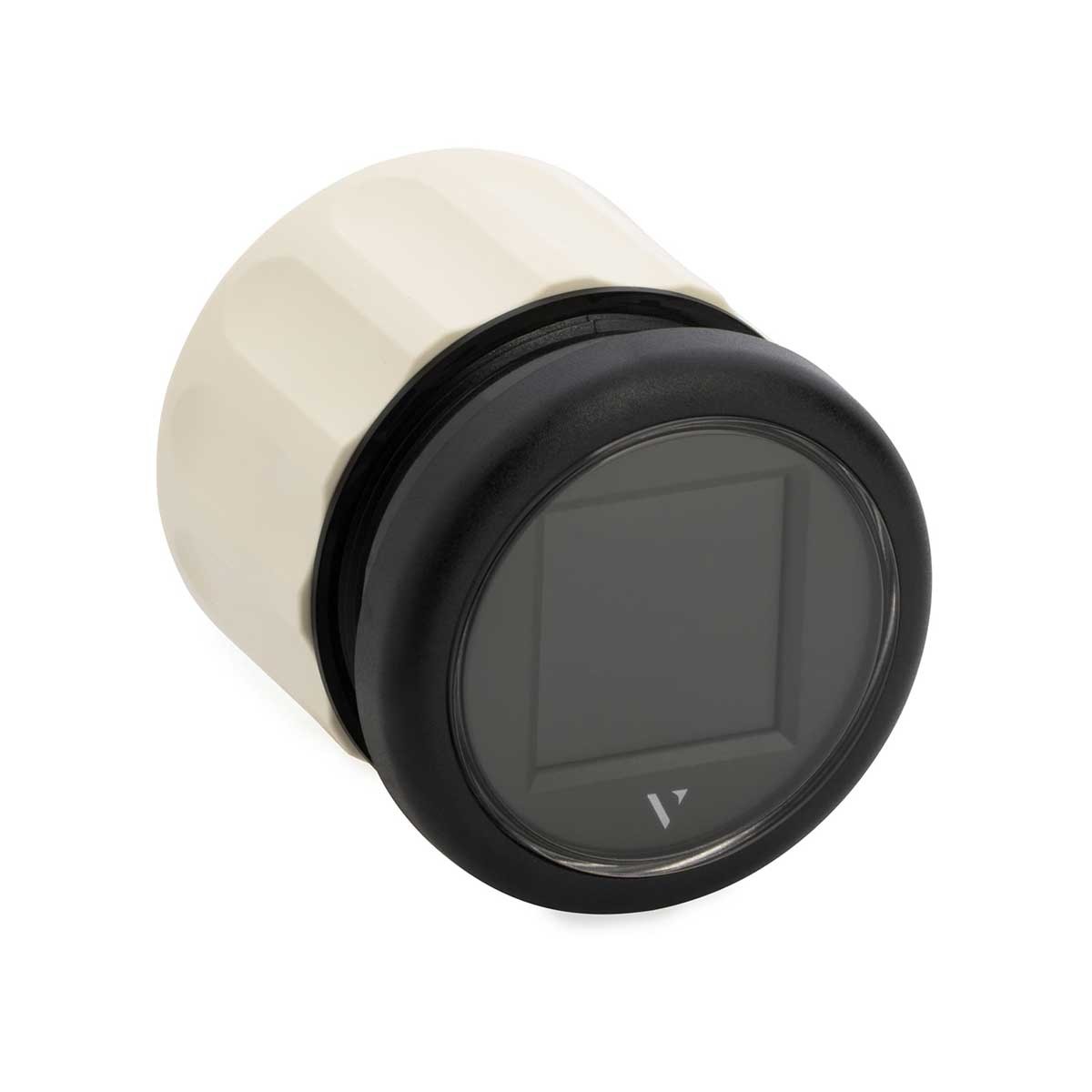

The VL Flex 52 is configured via a smartphone app, then programmed by simply touching the NFC window. Configuration can be carried out without powering the instrument, ideal before installation. On the installation side, the 52 mm format and Spinlock mounting facilitate integration on most panels.

• 1.44" TFT color display
• 125 x 125 pixel resolution
• 8 to 32 V operation with protections
• IP67 front panel and standard 52 mm mounting
• Battery capacity up to 500 Ah with IBS 12 V

KEY FEATURES

• Color TFT display
• Standard 52 mm format
• Voltage and current measurement
• IBS sensor on negative pole
• NFC configuration via application
• Up to 500 Ah and 200 A continuous rating
• State of charge and battery health

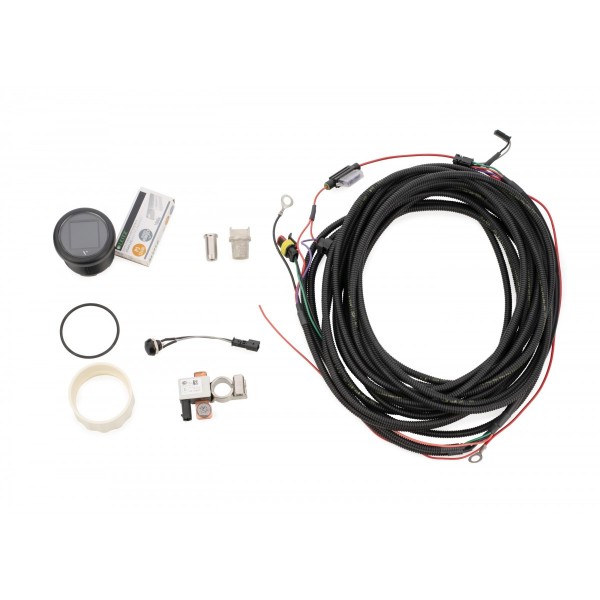

BOX CONTENTS :

• 1 - Display VL Flex 52 IBM 12 V
• 1 - Intelligent Battery Sensor IBS 12 V
• 1 - M6 battery pole adapter
• 1 - IBS 12 V wiring harness, 6 m long
• 1 - Spinlock 52 mm fixing nut
• 1 - Push button for harness
• 1 - PDF documentation
