Multifunction display VMH-70

Name: Multifunction display VMH-70
Brand: Veratron

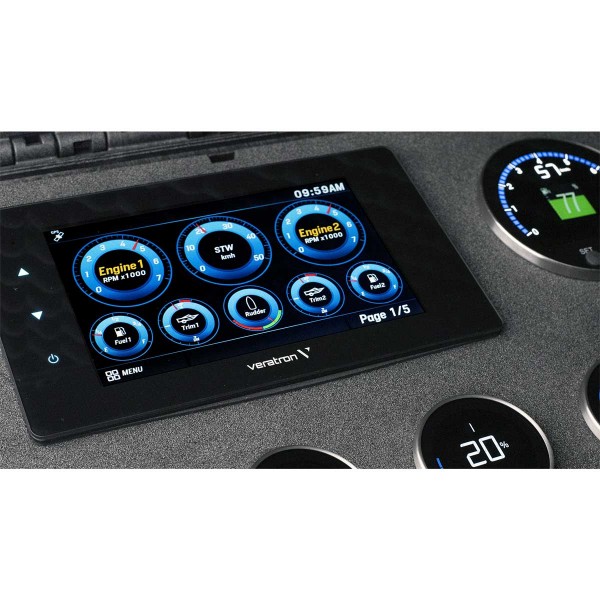

Designed to modernize your dashboard, the Veratron VMH-70 multifunction display brings together all engine and navigation information on a 7" touchscreen.

It facilitates monitoring and alarms, and the display can be customized, integrating with the onboard NMEA 2000 network and existing J1939 installations or sensors. Sturdy and waterproof to IPX7, it's perfect for cruising or fishing.

VERATRON - Multifunction display VMH-70 - Everything you need on board, on a single screen

The VMH-70 is a multifunction display designed to group engine information and navigation data in one place.

It integrates with the NMEA 2000 network, supports SAE J1939, and can also convert analog sensors into NMEA 2000 data. The result is a clearer, more modern and easy-to-customize instrument panel.

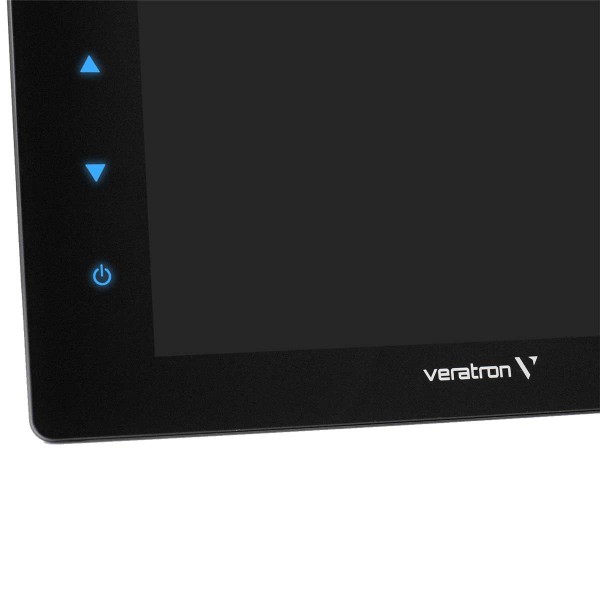

	7-inch screen At the helm, reading counts. The VMH-70 features a 7-inch, 800 x 480 px, IPS TFT touchscreen, with high brightness for readability in sunlight. The mineral glass front and aluminum casing add a real premium feel, while remaining suitable for nautical use. 7-inch IPS screen - multitouch 800 x 480 pixel resolution Mineral glass front panel Side buttons for brightness adjustment Standby mode allows you to turn off the screen without shutting down the system, conveniently at night or at anchor. So you can stay focused on the essentials, without the glare.

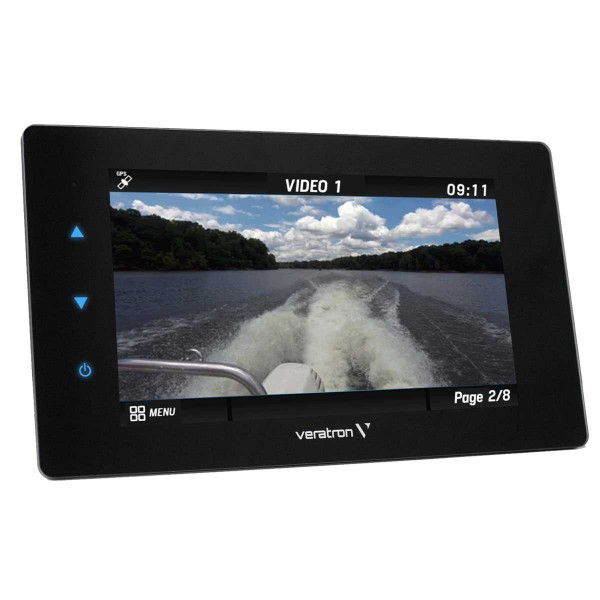

Integrated NMEA 2000 gateway The VMH-70 can monitor up to 4 engines from a single display. It collects data via NMEA 2000, SAE J1939, or directly from analog sensors, then converts and broadcasts them on the NMEA 2000 network. Ideal for centralizing information on engines, fuel, batteries, tanks, trim, rudder and more. Up to 4 engines on a single screen NMEA 2000 compatible - SAE J1939 - EasyLink Configurable analog inputs and NMEA 2000 gateway 2 composite video inputs for cameras Display pages are easily customized, with up to 10 screens and numerous layouts. And thanks to two EasyLink channels, you can distribute data to VMH 14 satellite gauges to complete your marine instrumentation.
