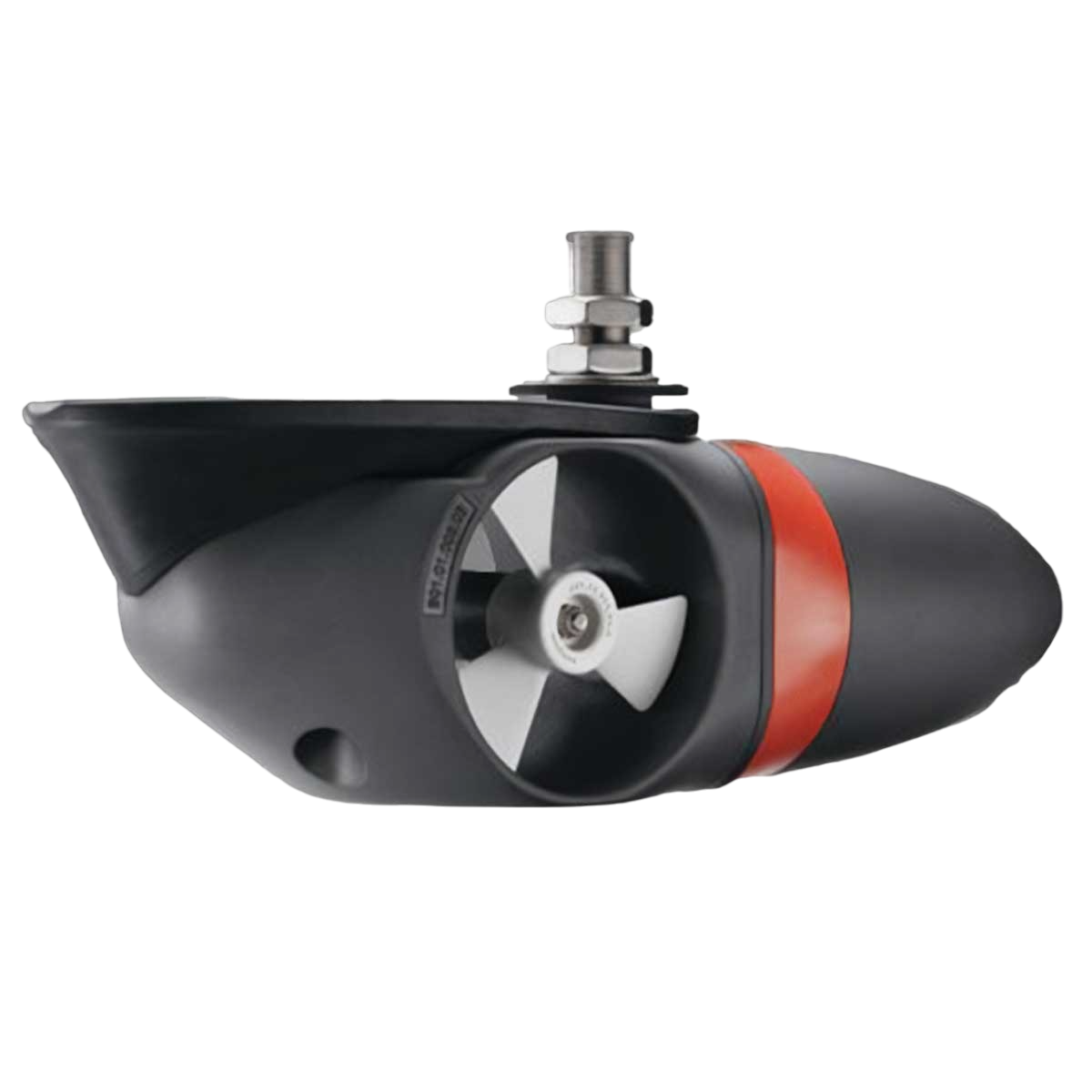

External thruster EX95S 70/95KG 24V

Thruster construction

Its hollow shaft with cable routing is made of steel with neoprene and rubber fittings to ensure the connection is watertight and to provide the suspension function.

The electric motor is specially designed and built to ensure exceptional performance. Up to 5 minutes of non-stop operation.

IPC i-Box control system (Intelligent Power Control) : Improves thruster reliability and safety. If the relay becomes stuck during operation, the thruster is automatically stopped.

Sealed gearleg: sealed gearleg supplied pre-filled with oil. The propeller shaft seal is made with a ceramic/graphite mechanical seal for maximum reliability.

S-Single: Single propeller : the most efficient in terms of performance. Its compact shape easily fits a narrow bow.

Analog : analog signal cables with color-coded Plug & Play connectors to match the wiring diagrams and ensure correct installation.

Specifications:

• Single model: EX95S
• Voltage: 24V
• Power: 3kW / 4 HP
• Nominal thrust: 67 kg
• Equivalent thrust: 95 kg
• Nominal current: 175A
• Boat size: 12-15m
• Weight: 19.5 kg

Comptoir Nautique nevertheless recommends oversizing the thruster power in relation to the size of your boat.

The data is provided for guidance only and must take into account the specific characteristics of the boat (weight, construction materials, hull type, windage, current and wind in your navigation area).

If you have any questions, please contact us by email (contact@comptoirnautique.com).

For the installation of a thruster, we recommend using a professional!

KEY POINTS:

• Hydrodynamic
• Easy installation
• 24V power supply
• Thrust up to 95 kg
• Mounting on all types of boats

BOX CONTENTS:

• 1 - Sleipner EX95 external thruster
• 1 - i-Box
• 1 - 5m cable
• 1 - Mounting kit
• 1 - PDF documentation
