Lecomble & schmitt

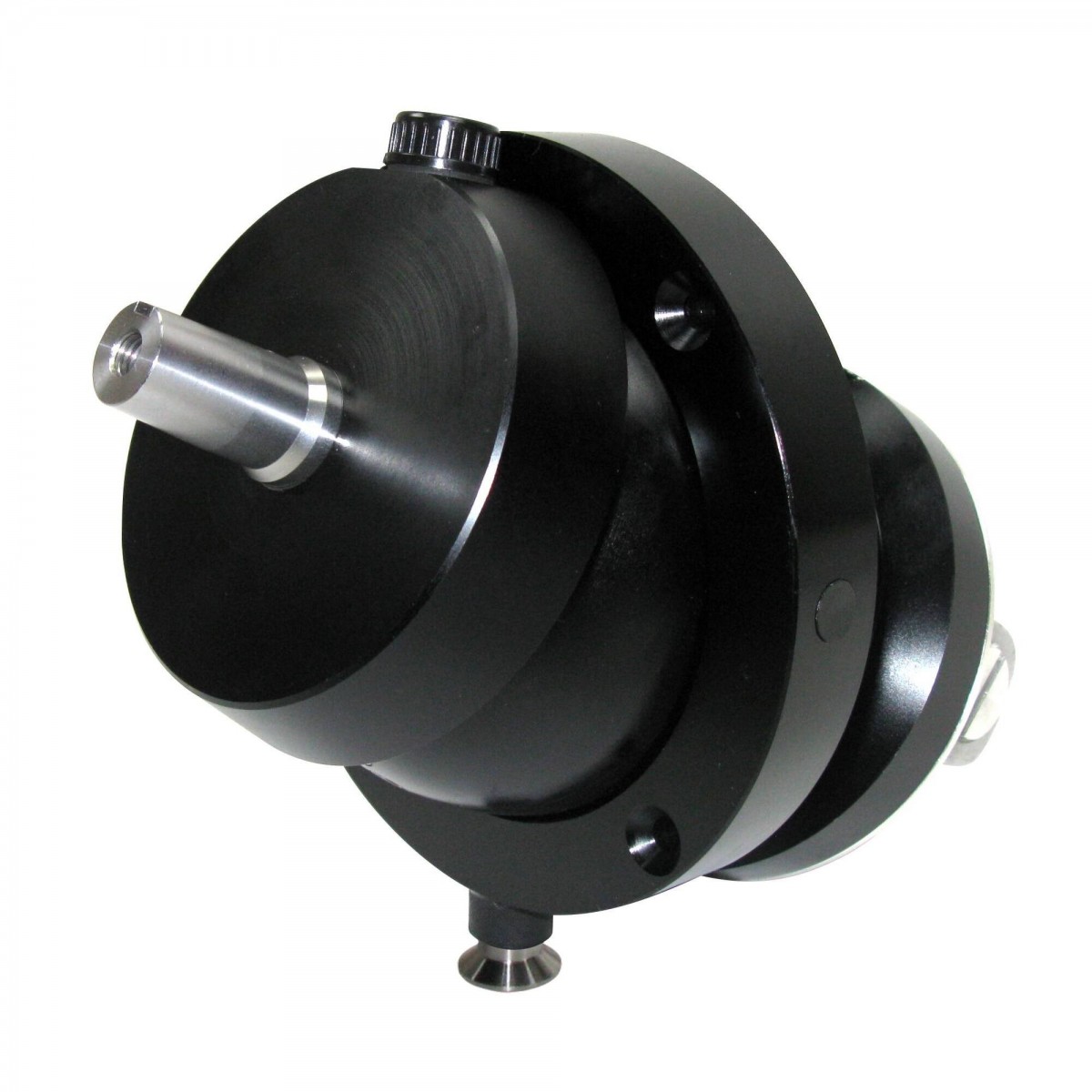

HB 5 Tilt Pumps

Ref. ALM-VDM-2203658

Hydraulic Tilt Pump HB 5 - 20 CT designed for outboard motor steering systems. This Lecomble & Schmitt model weighs 4.9 kg. Its dimensions are 20 x 29 x 14 mm, to be considered for on-board integration.

Configuration
Hb 5 tilt pumps :
Tilt HB 5 Pump -, 20 CT
€1,067.42 Tax included
-10%
€1,191.75
Pay in installments
3x 4x 10x 12x 24x 60x
or pay in
24x 60x
Quantity
OUT OF STOCK
1067 loyalty points Earn €10.67 in rewards
Experts’ advice Contact us from 8 AM to 5 PM
Trustpilot reviews 94% satisfaction based on 3,800 reviews
Reseller Premium
Payment 100% secure
ALM-VDM-2203658

Data sheet

Product type
Hydraulic pump
Description

LECOMBLE & SCHMITT - Tilt Pump HB 5 - 20 CT - For hydraulic steering

The Tilt HB 5 - 20 CT hydraulic pump is a component of the steering circuit for boats equipped with outboard motors. Manufactured by Lecomble & Schmitt, it is designed to be integrated into hydraulic steering systems.

Its function is to pressurize the hydraulic fluid to operate the steering cylinder, thus allowing the engine to be maneuvered. Its design is intended for installation within the boat's technical environment.

Design and Specifications

This pump is a central element of the steering system. Its physical characteristics must be taken into account for proper installation.

  • Type: Hydraulic pump for tilt function on outboard motors.
  • Weight: 4.9 kg, a parameter to consider for weight distribution on the vessel.
  • Dimensions: Footprint of 20 mm in length, 29 mm in width, and 14 mm in height.

KEY POINTS:

  • Designed for hydraulic steering circuits
  • Suitable for outboard motor configurations
  • Weight of 4.9 kg
