-€72.99

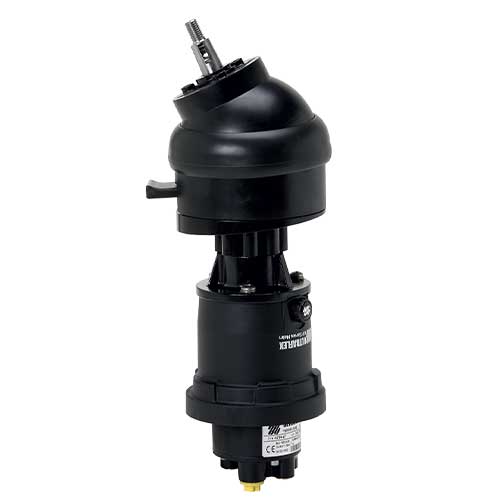

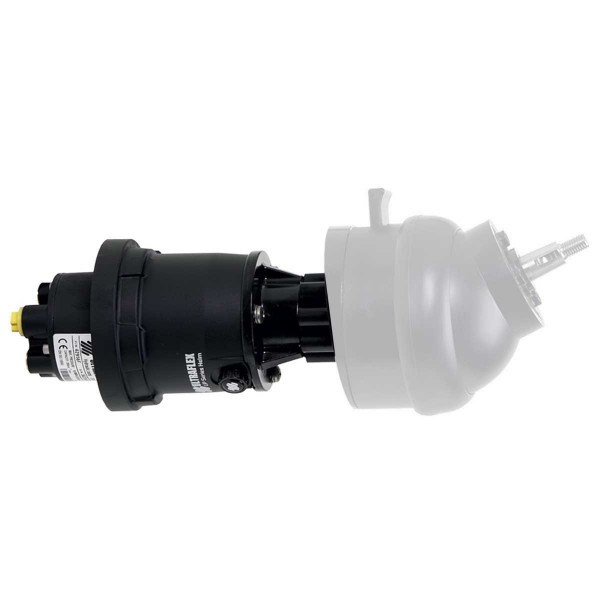

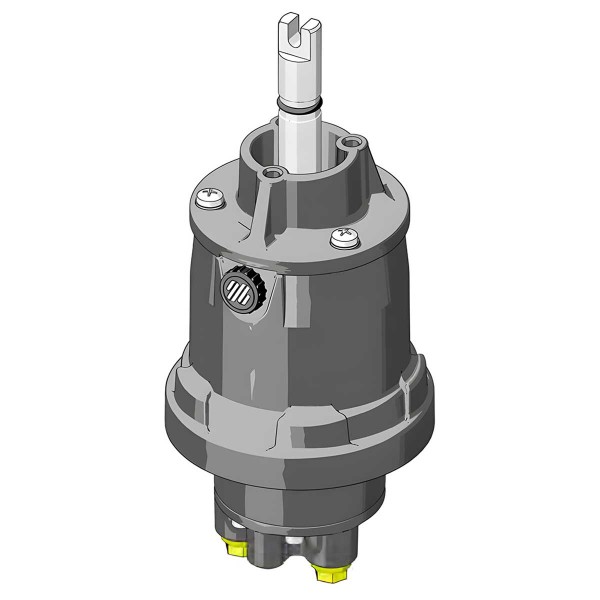

UP20T tilt-mount front pump

Name: UP20T tilt-mount front pump
Brand: Ultraflex

The Ultraflex UP20T front-mounted pump, designed for tilt mounting, offers precise, reliable hydraulic control on any pleasure or fishing boat.

Ideal for both pleasure and professional boating, it can be integrated into any dashboard

Ultraflex - UP20T tilt-mount front pump

The UP20T front-mounted pump fromUltraflex is specially designed for tilt-mounted marine hydraulic steering systems. Its 5-piston technology guarantees smooth, precise and safe steering in all configurations. It can be used with tilt X52 (optional), and is suitable for UC68, UC69 and UC95 cylinders.

Its robust, compact design ensures a long service life even in demanding marine conditions. It is easy to fill and drain, and compatible with OL150 marine hydraulic oils.


	PRECISE, SMOOTH CONTROL The UP20T pump offers a capacity of 20 cc per revolution and uses 5 pistons, for progressive steering and optimum feedback to the helm. Ideal for all types of boats with steering wheels up to 16 inches. It's designed to limit effort, even when sailing long distances or performing delicate maneuvers. Weight: 3.9 kg Capacity 20 cc per revolution Max. valve pressure: 70 bar Mounting on tilt X52 (optional) OL150 and equivalent oils compatible 5-piston technology for greater flexibility Multi-cylinder compatibility: UC68, UC69, UC95 Suitable for handwheels up to 406 mm in diameter The tilt assembly allows perfect adjustment of the flywheel inclination to your preferences.

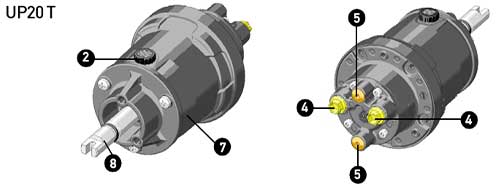

PUMP COMPONENTS 2- Tank cap with vent 4- Cylinder connection 5- Additional station connection 7- UP20T pump 8- Tilt connection shaft X52
