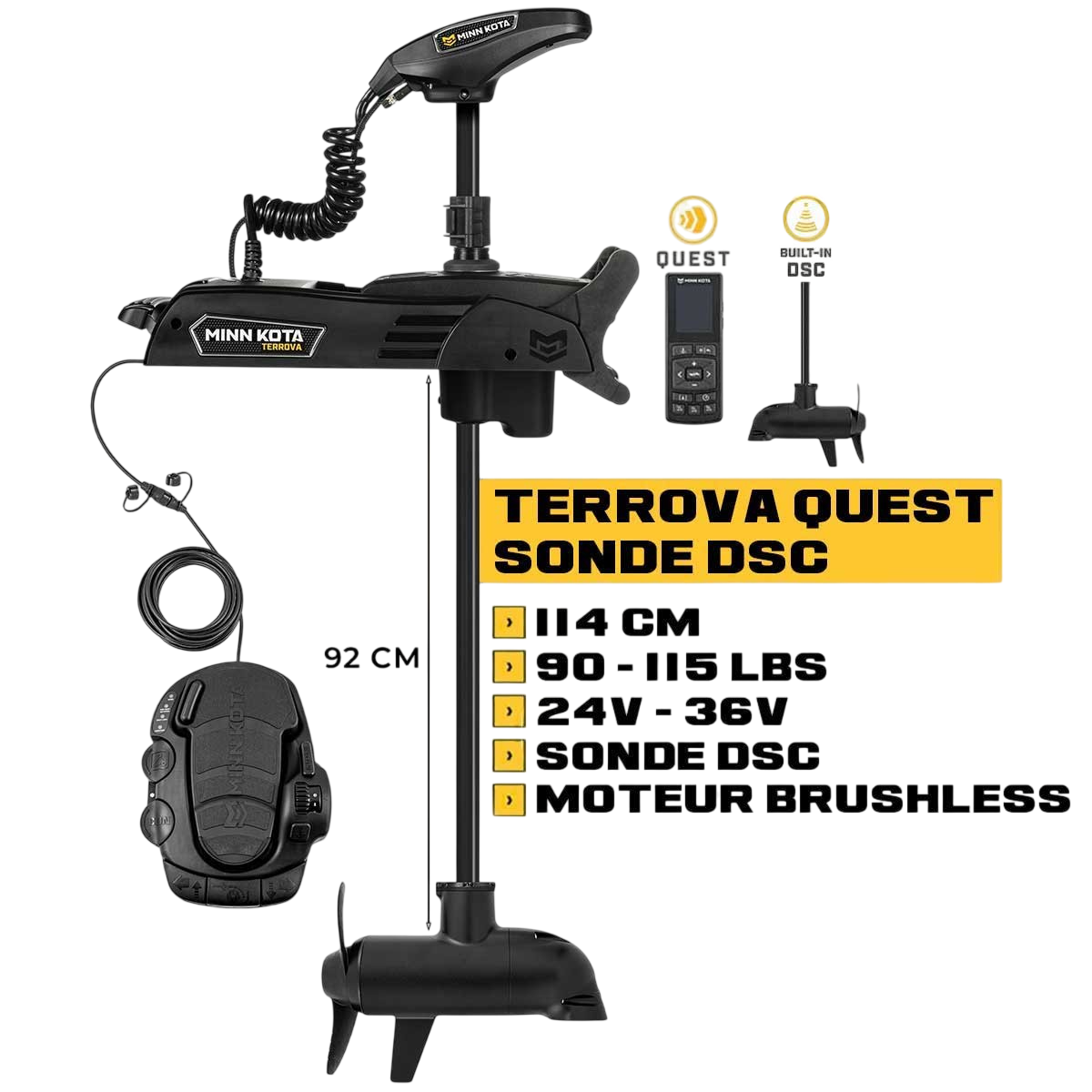

TERROVA QUEST front engine + DSC sensor

Minn Kota RANGE QUEST

The range Quest from Minn Kota features advanced electric motor technologies. These include rotors brushless , , Eliminating frictional wear using magnets and coils to create a magnetic field. These improvements increase range by up to 30% compared with previous models. What's more, a eco mode is available for extend battery life .

This 24/36V dual-voltage motor offers a enhanced thrust , of 90 lbs for 24V motors and 115 lbs for 36V motors , guaranteeing enhanced manoeuvrability , even in extreme environments such as seagrass beds.

Visit reinforced frame with fewer parts ensures enhanced durability , integrating a robust support to withstand high levels of thrust and torque. With a carbon fiber shaft to combine strength and flexibility , the motor is equipped with a power Pro propeller ensuring optimum performance in terms of power, torque and efficiency.

Finally, the Quest integrates automatic lashing function. When the lock pedal is pressed, the motor head moves into position for motor lift.

DSC: DUAL SPECTRUM probe CHIRP for fishing

The probe CHIRP uses a wide frequency range to better fish detection . It emits more pulses for a clearer, more detailed image. It also incorporates a temperature sensor.

• Target separation : Fish will be better defined on screen thanks to advanced target separation capabilities, distinguishing fish echoes from each other and from the background.
• Clearly defined fish arches: Fish will appear in long, well-defined arcs for quick identification and accurate presentation of lures.
• Loud and quiet echoes return: A high signal-to-noise ratio means better-defined targets, less clutter and greater certainty that what you're looking at on the screen is legitimate.

Features :

• Wide beam From 140 to 240khz . Optimizes scanning area, detection and lure tracking.
• Narrow beam From 180 to 240khz. Optimizes detail, background reading and target separation.

Compatible with handsets Humminbird with Ethernet functionality.

Advanced GPS and navigation modes

Minn Kota has also improved GPS system Which Automates boat position and control , while giving the total control over the fisherman via wireless remote control. A multitude of navigation modes :

• Drift mode : solves the problem of maintaining course and speed in the face of changing environmental conditions. By combining the course indicator and cruise control , this mode simplifies boat movement management , this eliminates the need for floating anchors or other trajectory control devices.
• Tracking mode : Am automatically a custom contour on a handset Humminbird depending on zone depth, bottom hardness and vegetation density.
• Dodge mode: allows you to quickly exit automatic navigation mode to maneuver manually through waves and around structures, then resume navigation without resetting the route.
• Spot Lock & Jog Log : Locks in the position of your fishing spot with unrivalled precision and allows you to move around if necessary
• Autopilot mode : follow a route predefined on your handset Humminbird
• Back/return mode : Retraces your route up to 3 km back
• Circle mode : Scans a fishing zone around a defined point
• Itracks & Track Offsets mode : Create, store, trace or return to fishing or navigation areas
• Routes mode : Links multiple Waypoints and Spot-Locks to create a single route

Remote control and foot pedal: stay in control

The range Quest brings a new wireless remote control (wireless) combining the features of Minn Kota's renowned CoPilot, I Pilot and I Pilot Link remote controls.

Lightweight and waterproof , this remote control offers easy navigation thanks to intuitive menus and simplified keyboard including four customizable buttons Via One-Boat Network (three on the keyboard and one on the side).

The programmable electric pedal, meanwhile, allows you to versatile control with the management , the speed , of on/off propeller , from Spot-Lock , and a customizable button One-Boat Network for easy access to the most frequently used functions.

What is the motor shaft length Quest ? ?

It is important to choose the right shaft length minn Kota engine Quest in relation to the boat. If it's too short, the propeller won't be sufficiently submerged. Comptoir Nautique recommends :

• Measure the distance between the bow and the waterline.
• Add 10 cm to the waterline measurement for rough water fishing.
• Add 30 cm to the waterline measurement to steer a hand-operated motor while standing in the boat.

Connectivity Minn Kota & Humminbird

With the Minn Kota One-Boat Network, you benefit from simplified and easy-to-use control of on-board fishing equipment , enabling seamless integration of technologies (iPilot, iPilot Link, Talon, Raptor, Fish Smart).

Minn Kota products, Humminbird and Cannon are compatible with each other, allowing the connection of various devices such as minn Kota electric motors Several handsets Humminbird compatible, the winches Cannon, the anchors (Raptor or Talon) and even a smartphone application (including all boat functions). This compatibility makes it possible to create a fully connected fishing boat and high-performance.

Finally, we also discover the Battery gauge Quest , exclusive to handsets Humminbird. Once the on-board battery system has been configured, this gauge can be used to monitor :

• Autonomy in
• Motor battery voltage
• Available operating time
• The time when it will be empty

When autonomy reaches 20%, a alarm goes off and the motor automatically switches to eCO mode . . (Data are accurate only when the motor is running, i.e. when the propeller is turning)

Introducing the Minn Kota Terrova front engine Quest

Minn Kota engine features Quest

MAIN POINTS :

• Enhanced GPS
• Integrated DSC sensor
• Intelligent & resistant
• Quiet & efficient
• Connectivity Humminbird
• Battery monitoring
• Several shaft lengths
• Different navigation modes

BOX CONTENTS :

• 1 - Minn Kota Terrova front engine Quest 114 cm
• 1 - Terrova control pedal Quest
• 1 - Wireless remote control
• 1 - Power Propeller
• 1 - Network cable (9m)
• 1 - Ethernet network adapter
• 1 - PDF documentation
