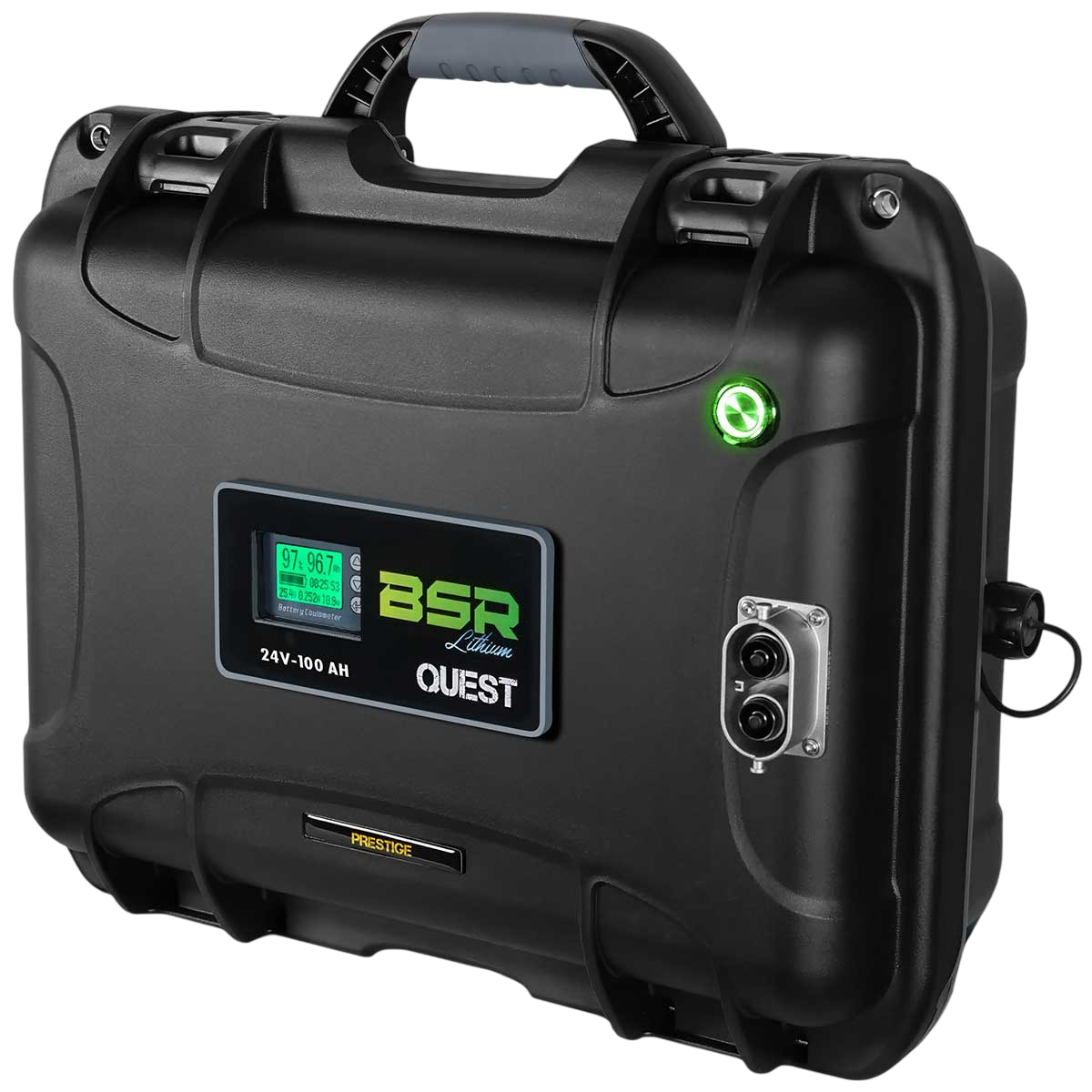

Lithium case BSR Prestige Brushless LifePo4 Gen2 24V-100A

Name: Lithium case BSR Prestige Brushless LifePo4 Gen2 24V-100A
Brand: BSR

Designed for frequent, intensive use in navigation, the BSR Prestige Brushless LipePO4 Gen2 24V-100A lithium case has been specifically developed to power Brushless electric motors.

Packaged in a case, it features a powerful motor output, plus an additional output for fishfinders and other electronic accessories.

BSR - VALISE LITHIUM PRESTIGE BRUSHLESS LIFEPO4 GEN2 24V-100A - FOR MORE FISHING

Brushless motors are quite power-hungry, which is why BSR has released a lithium battery pack specially designed for brushless electric motors. This lithium case BSR Prestige Brushless LifeP04 Gen2 24V-100A will be the perfect choice to equip your boat and power Brushless electric motors and electronic equipment.

It is ideally suited to Brushless electric motor ranges such as the minn Kota freshwater front engines Quest or Garmin Kraken Force but also to minn Kota outboard motors Quest or Garmin Force Kraken sea.

To feed the fishing sounders, the GPS plotter/fishfinder or other electronic accessories (electric reel, scrambler, electric cooler) the Lithium Brushless case is equipped with a sealed regulated output 12V-18A.


	LifePO4 for marine batteries LiFePO4, or lithium iron phosphate, is a type of lithium battery-ion recognized for its safety, durability and stability. In contrast to other types of lithium batteries, LiFePO4 is less prone to overheating or fire hazard, which makes it a safe choice for marine applications. The battery has a extended service life, with a charging capacity up to several thousand cycles, making it ideal for use in the most demanding intensive use such as fishing boats. In addition, it retains a stable voltage during discharge, ensuring constant, reliable supply electric motors and fishfinders, even in difficult sea conditions. Finally, it often withstands high discharge rates, which is particularly useful for electric motors power peaks when fishing in rough waters or for the variable energy requirements of the fishing sounders.

LCD DISPLAY BATTERY CASE The LCD display shows : Battery temperature Voltage Load rate Low voltage alarm But also thanks to the Gen2 discharge indicator: Remaining range in percent Remaining capacity in Ampere/hour Remaining usage countdown Instantaneous consumption in Ampere and in Watts Voltage

	Motor socket, AUTO VALVE-PRESSURE & BMS The battery BSR for integrated brushless motors is supplied with two sockets for electric motors. A male plug integrated on the lithium case and a female plug to be connected to the brushless motor. An auto valve-integrated pressure from NANUK Equalizes atmospheric pressure difference. Using state-of-the-art technology, the micro-Vent allows air to pass through while preventing water from penetrating to prevent the formation of condensation. It also makes it possible to to make it easier to open the case. Finally, the battery BSR Brushless integrates a BMS (70A discharge and 35A load). It allows optimize battery performance, , ensure its longevity and prevent damage by controlling operating parameters and balancing the load between individual cells.

Care and use of your Lithium battery BSR

How to choose your battery BSR Prestige Brushless ?

Model	24V - 100A - 1 output	36V - 100A - 1 output
Technology	Life P04 / 2560 wh	Life P04 / 3840 wh
Voltage	25.2V	38.4V
Weight	21 kg	32 kg
Dimensions (W x D X H)	401 x 173 x 337 mm	475 x 208 x 376 mm
Max. load voltage	29.2V	43.8V
Max. discharge voltage	21.2V	30V
Load	1C max. i.e. up to 100A
Discharge	2C max, i.e. up to 200A
Discharge cycle	2000 at 100% / 4000 at 50%
Number of outputs	1 output
Sounder output power	20A
Sounder socket with ON/OFF button	IP69 waterproof screw-in - 13.6V
Motor connector	1 motor connector 120A / IP67
