ULTREX BT 112 Lbs front motor

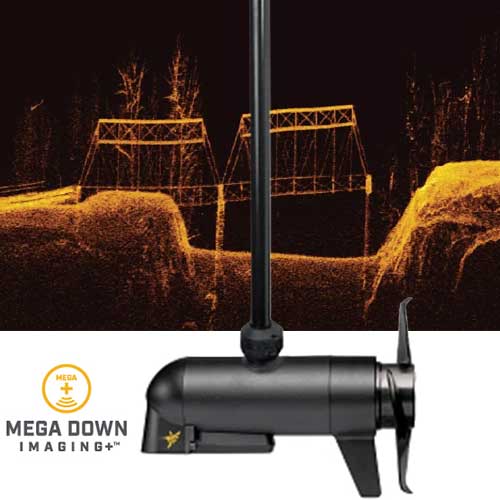

MEGA DOWN IMAGING PROBE FOR FISHING

The integrated MDI+ probe (Mega Down Imaging) was created for a perfect integration with Minn Kota engines. The motor/combiner link allows the sensor to be used without interference.

Integration in front-engine units also makes it possible to see what's directly under the boat's bow (structures, fish...) .

2 beam types :

• Narrow 180-240 kHz optimizes background reading and the target separation
• Large 140-200 kHz optimizes detection area and lure tracking

You can also combine beam types for greater versatility.

Mega probe frequencies Down Imaging :

• High : 1100-1200 Khz
• Average : 800-860 Khz
• Bass : 435-535 Khz

Compatible with handsets Humminbird with Ethernet functionality.

Advanced GPS and navigation modes

The Ultrex 112 GPS front engine features a gPS system improved for a multitude of navigation modes :

• Drift mode : combines course indicator and cruise control For simplify management of boat movements, this eliminates the need for floating anchors or other trajectory control devices.
• Tracking mode : Am automatically a custom contour on a handset Humminbird depending on zone depth, bottom hardness and vegetation density.
• Dodge mode: allows you to quickly exit automatic navigation mode to maneuver manually through waves and around structures, then resume navigation without resetting the route.
• Spot Lock & Jog Log : Locks in the position of your fishing spot with unrivalled precision and allows you to move around if necessary
• Autopilot mode : follow a route predefined on your handset Humminbird
• Back/return mode : Retraces your route up to 3 km back
• Circle mode : Scans a fishing zone around a defined point
• Itracks & Track Offsets mode : Create, store, trace or return to fishing or navigation areas
• Routes mode : Links multiple Waypoints and Spot-Locks to create a single route

Minn Kota wireless pedal & remote control

Lightweight and waterproof, the minn Kota micro remote control Ultrex offers a simplified, compact control. It provides quick access to the main functions: Spot-Lock, speed, direction and AutoPilot.

If you would like a remote control with more functions You can add the wireLess remote control - advanced GPS (sold separately).

The Minn Kota wired foot switch has a small footprint and a heel/toe use.

It provides access to the main functions: propeller on/off, management speed and direction, activation or deactivation of modes Spot-Lock / Jog Log and the AutoPilot.

From lED indicators On the pedal confirm the use of the navigation modes Spot-Lock, AutoPilot and speed.

It incorporates a steering lock That when you take your foot off the pedal, the motor head remains pointed in the same direction in which you left it.

What is the motor shaft length ?

It is important to choose the right shaft length of the Minn Kota motor in relation to the boat. If it's too short, the propeller won't be sufficiently submerged. Comptoir Nautique recommends :

• Measure the distance between the bow and the waterline.
• Add 10 cm to the waterline measurement for rough water fishing.
• Add 30 cm to the waterline measurement to steer a hand-operated motor while standing in the boat.

MAIN POINTS :

• Enhanced GPS
• Easy to control
• Quiet motor
• Anti-algae propeller
• Integrated DSC sensor
• Connectivity Humminbird
• Different navigation modes
• Lift-assist (deployment assistance)

BOX CONTENTS :

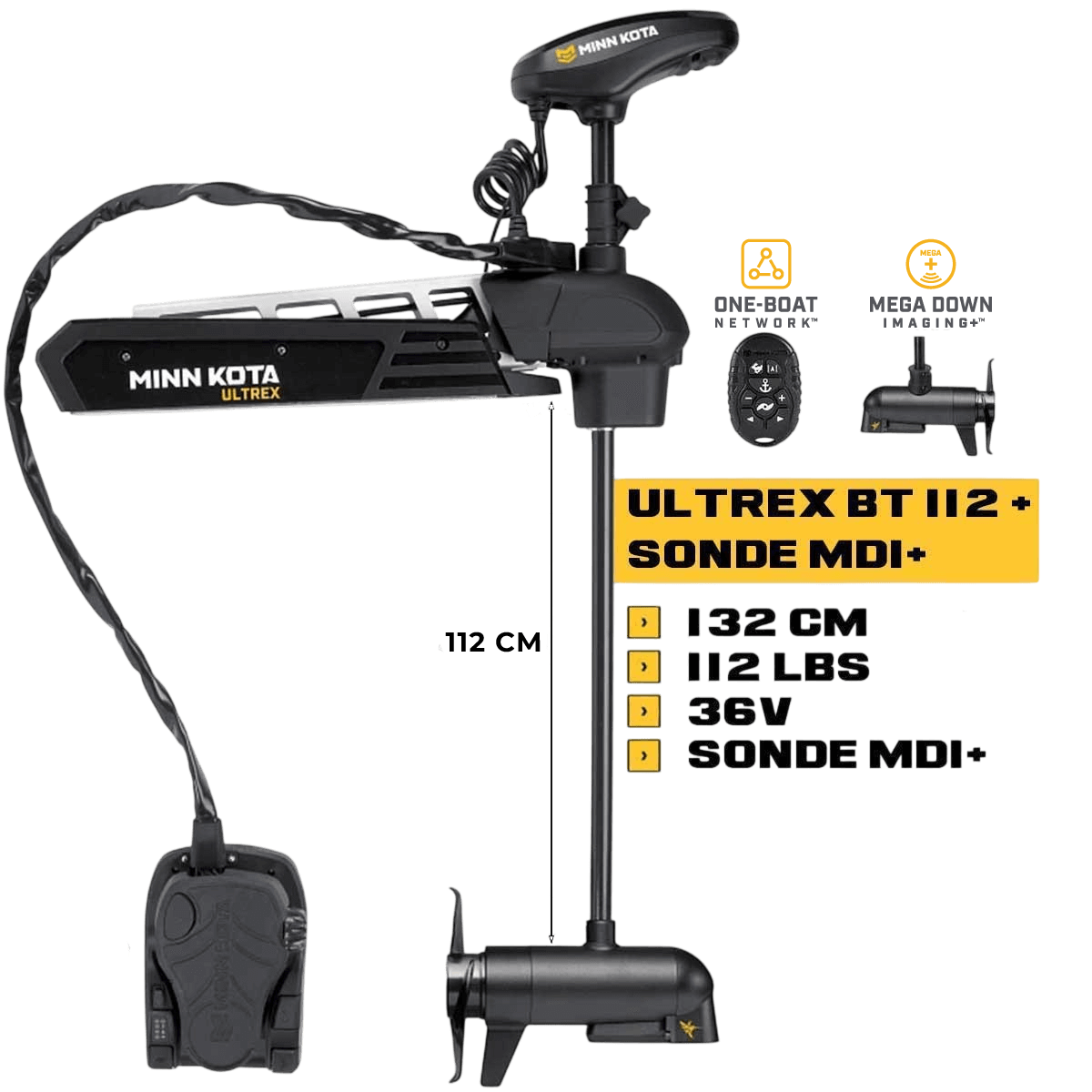

• 1 - Minn Kota Ultrex 112 LBS GPS 36V 132 cm front engine
• 1 - Mega probe Down Imaging+ integrated
• 1 - Wired control pedal
• 1 - Micro remote control Minn Kota
• 1 - Weedless Wedge propeller 2 MKP-38
• 1 - Ethernet network cable (9m)
• 1 - Remote gyroscopic sensor
• 1 - Probe adapter
• 1 - PDF documentation
