⭐️ Best Seller

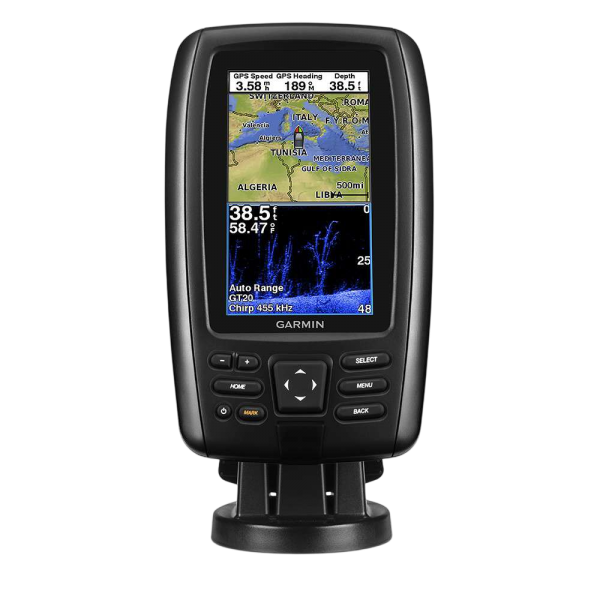

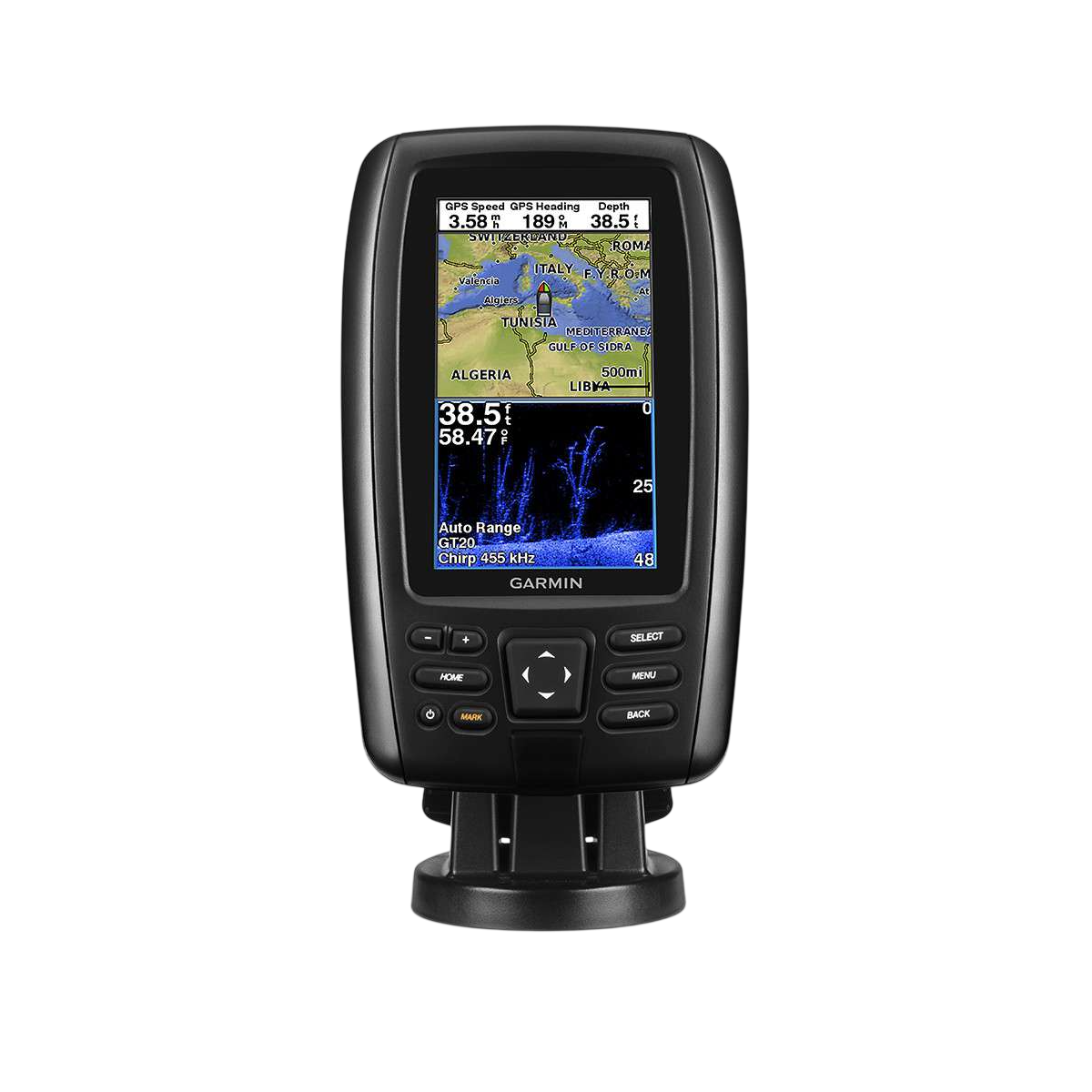

EchoMAP Plus 42CV

Ref. 010-01884-00

The EchoMAP Plus 42cv CHIRP from Garmin is a hybrid GPS chartplotter/fishfinder with a 4" keyboard display. It integrates an ultra-sensitive GPS antenna and a 500W sounder with the best technologies: 2D CHIRP and ClearVü CHIRP for excellent fish detection performance.

⚠️ Only compatible with BlueChart G3 charts.

Read more Features
€319.90 Tax included
Public price
€369.00
-13%
Price tax excl. / DOM TOM €266.58
Sensor type
Quantity
By buying this product you can collect up to 319 loyalty points. Your cart will total 319 points that can be converted into a voucher of €3.19.
010-01884-00

Data sheet

Screen size
4"
Sounder technology
2D + Down Imaging
Screen type
Knobs
Our opinion
★★★★
Range
EchoMAP
Device compatibility
Autorouting function, AIS
NMEA compatibility
NMEA 0183
Sounder power
500w
Bathymetry included
Yes
Ease of use
Beginner
Activity
Fishing, Cruising
Product type
GPS sounder, Chartplotter Sounder
Description

GARMIN - ECHOMAP PLUS 42HP CHIRP - CHIRP POWER

The EchoMAP Plus 42cv CHIRP from Garmin is a GPS sounder plotter with a keyboard display. It features different sounder technologies depending on the probe selected: 2D Traditional CHIRP / ClearVü CHIRP mode. It's the smallest screen in the range, with a vertical format; its big brother is the ECHOMAP UHD 62cv + GT24 probe.

The integrated 5Hz GPS/GLONASS antenna refreshes data 5 times faster than other antennas on the market (1Hz). Heading and position data are updated up to 5 times per second , enabling more accurate reproduction of the boat's position and storage of up to 5,000 waypoints with the utmost precision - even at low speed. Sounder data and GPS position history are stored simultaneously. In this way, you can create a waypoint at any time via the sounder recordings.



echomap 92 sv 2D.jpg

TRADITIONAL 2D CHIRP SOUNDER

The Echomap Plus 42cv features traditional CHIRP echo sounder: one of the most innovative technologies on the market. This allows ideal detection at depths of up to 240m (manufacturer's data), thanks to its high-frequency CHIRP coverage on a wider beam than usual .

  • Denser information and sharper, high-resolution images
  • Better target separation and sharper rendering of fish arches
  • Improved bottom tracking and fish detection even at high speed

The device also supports probes integrated into Minn Kota® and MotorGuide® electric motors (optional adapter).



CLEARVÜ TECHNOLOGY

ClearVü technology is the most powerful on the market . It provides clear, photo-quality images of everything happening beneath the water's surface. Highly accurate, you'll be able to see structures, fish and submerged objects.

  • See thermoclines: the boundary between water layers and oxygen-rich zones.
  • Identify fish: no room for interpretation, it identifies clearly.
  • Reveal structures: wrecks, vegetation, bridge piers, mortises...

Not available on 2D probe version



echomap 92 sv 2D.jpg

QUICKDRAW CONTOURS FUNCTION

Quickdraw Contours software creates HD fishing charts in real time. It's now possible to create your own maps without any special knowledge.

With the Echomap Plus 42cv, you can store the equivalent of 8,000 km² of Quickdraw Contours maps , with bathymetric curves displayed every 30 cm.



SAILASSIST FUNCTION

SailAssist allows you to sail with greater peace of mind, thanks to the sail line and tacking aid. The tacking aid indicates the best moment to tack.

The function features a virtual starting line indicator and a programmable countdown timer. Evaluate your journey time.



echomap 92 sv 2D.jpg

THE BEST MAPS

Echomap Plus 42cv provides you with the best maps: BueChart g3 or BlueChart g3 Vision.

Use a microSD card (32GB max) to store all your maps.



MAIN FEATURES :

    • Keyboard screen
    • CHIRP technology
    • ClearVü technology

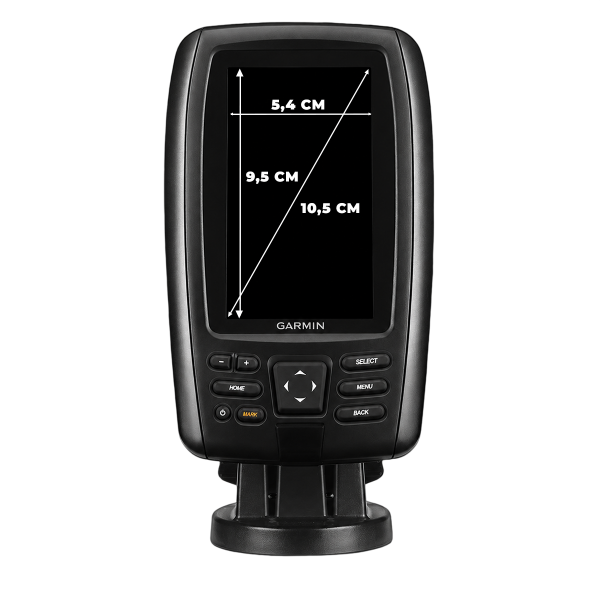

    • Dimensions: 54 x 95 mm
    • 5Hz GPS/GLONASS antenna
    • 500W HD-ID sounder module
    • Resolution: 480 x 272 pixels
    • Frequency: 50/77/83/200 kHz
    • MicroSD™ card slot Garmin

BOX CONTENTS:

    • 1 - Garmin EchoMap Plus 4"
    • 1 - Probe(depending on model)
    • 1 - Power/data cable
    • 1 - Swivel mounting bracket
    • 1 - PDF documentation
