EchoMAP UHD2 52cv

TRADITIONAL 2D CHIRP SOUNDER

The Echomap UHD 52cv features the traditional CHIRP echo sounder: one of the most innovative technologies on the market. This provides ideal detection at depths of up to 240m (manufacturer's data), thanks to its high-frequency CHIRP coverage over a wider than usual beam.

• Denser information and sharper, high-resolution images
• Better target separation and sharper rendering of fish arches
• Improved bottom tracking and fish detection even at high speed

CHIRP frequency: 70/83/200 kHz

CLEARVÜ UHD TECHNOLOGY

ClearVü UHD technology is the most efficient on the market . It provides clear, high-quality images in Ultra High Definition of everything going on beneath the water's surface. You'll be able to see submerged structures, fish and objects with pinpoint accuracy.

• See thermoclines: boundary between water layers and oxygen-rich zones.
• Fish identification: no room for interpretation, it identifies clearly.
• Reveal structures: shipwrecks, vegetation, bridge piers, mortises...

ClearVü UHD frequency: 260/455/800 kHz

QUICKDRAW CONTOURS FUNCTION

Quickdraw Contours software creates your hD fishing cards in real time. It's now possible to create your own maps without any special knowledge.

With the Echomap UHD2 52cv, you can store the equivalent of 8000 km² of maps Quickdraw Contours with bathymetric curves displayed every 30 cm.

Download maps or share your own by connecting via WI-FI to the free ActiveCaptain app. Receive on-screen notifications of new updates to your echo sounder via the app.

WIFI AND ECHOMAP UHD2 CONNECTIVITY

Visit Garmin Echomap UHD2 enables wifi connection of a smartphone to use the Active Captain applicationiOS andAndroidBut above all connecting 2 Echomap UH2 echo sounders to each other to share the sounder view and user data.

With this system, you can, for example, have your 1st sounder cabled to your stern transducer, while a second sounder located forward receives the sounder view of the 1st wireless via wifi allowing you to fish from all sides of the boat, while always keeping an eye on one of the screens.

The 2nd useful feature of wireless is the ability to share certain sounder settings, in addition to screen copy. Here's what you need to know: sensitivity, range and interference filter.

This means you can fine-tune these sounder settings on either screen. For other settings, however, you'll need to use your main screen.

The wifi connection also lets you share updates. So you can put an SD update card in your first sounder, launch the update and then, once it's complete, re-launch it for the 2nd sounder via wifi, without moving the SD card from one to the other.

⚠️No map sharing via wifi. You'll need a map on each of the 2 fishfinders

THE BEST CARDS

Echomap UHD2 52cv gives you the best maps Garmin Navionics+ and Garmin Navionics Vision+. These include all the data Navionics, autoguiding technology and a host of other options. Use a microSD card (max. 32 GB) to store all your maps.

Thanks to built-in Wi-Fi, pair your device with the free ActiveCaptain app and access OneChart to update, buy or download new maps.

MAIN POINTS :

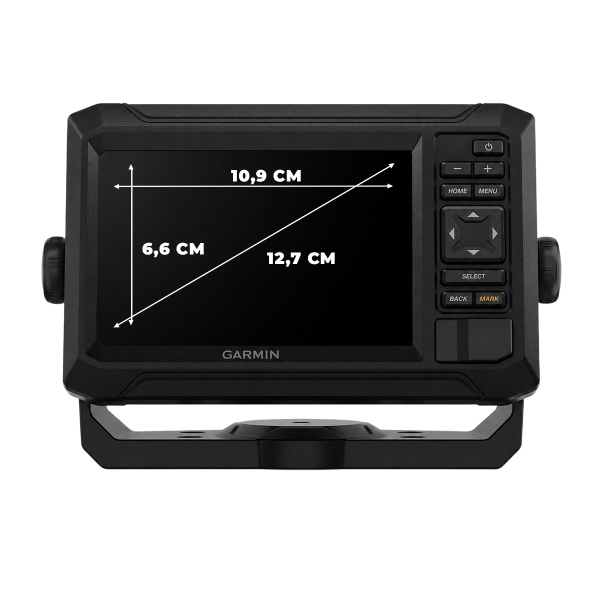

• 5" display
• Wifi compatible
• CHIRP technology
• 5Hz GPS/GLONASS antenna
• 500W HD-ID sounder module
• Resolution: 800 x 480 pixels
• Dimensions: 18.8 x 12.2 x 6.2 cm
• MicroSD card slot (32 GB max)

BOX CONTENTS :

• 1 - Garmin EchoMap UHD2 52cv
• 1 - Swivel and tilt bracket
• 1 - GT20-TM probe (depending on Pack)
• 1 - Power/data cable
• 1 - PDF documentation
