EchoMAP UHD2 92sv Touch

Name: EchoMAP UHD2 92sv Touch
Brand: Garmin
Rating: 5 (1 reviews)

Ref. 010-02687-00

1 reviews

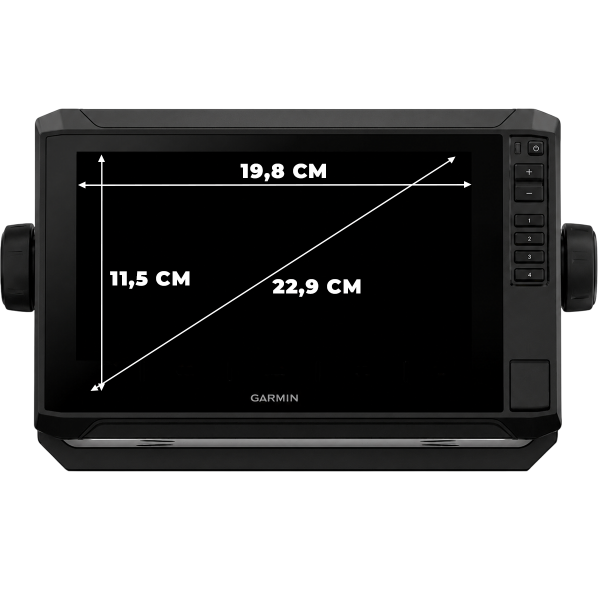

The Garmin ECHOMAP UHD2 92sv chartplotter features a bright, sunlight-readable 9" hybrid display with high-resolution. This scanning sounder uses traditional Chirp 2D, ClearVü and SideVü technology. It is also compatible with LiveScope real-time scanning technology.

Supplied as a stand-alone unit, the EchoMap UHD2 92sv is available in various package versions.

GARMIN - ECHOMAP UHD2 92SV - KNOWING WATER BETTER THAN A LOCAL

L'ECHOMAP UHD2 92sv from Garmin features 500W of sonar power with ClearVü and SideVü sonar technology, as well as CHIRP traditional single-channel. We also feature the Vivid for clear, high-contrast views all around your boat.

This UHD2 range features a new interface, similar to that of the GPSMAPs, which is more fluid and faster than the Echomap UHD 92sv with a high-resolution 1024 × 600 pixel touchscreen and keyboard assistance. There's a slot for a microSD card up to 32GB, which will store 5,000 Waypoints.

Its swiveling, tilting clamp allows cables to be plugged directly into the quick-release bracket, so you can install/uninstall your device quickly and easily.

The integrated Wi-Fi connection enables you to connect your smartphone to the Active Captain app, as well as share user data between devices via Wi-Fi-Fi . It also allows the connection of two devices ECHOMAP UHD2 to share user and sounder data.

It also incorporates a multi-10Hz refresh band, which uses several frequencies to improve position accuracy, particularly in areas where signals are reflected or weak.

L'ECHOMAP UHD2 92sv Garmin is also compatible with electric motor FORCE for complete wireless motor control from the handset display, with the option of create and follow routes, navigate to waypoints, control speed, check battery life and more.


	TRADITIONAL 2D SOUNDER CHIRP L'ECHOMAP UHD2 92sv features the traditional sounder CHIRPOne of the most innovative technologies on the market. This provides ideal detection down to a depth of 240m (manufacturer's data) thanks to its coverage CHIRP on a wider beam than usual. Denser information and sharper, high-resolution images Better target separation and sharper rendering of fish arches Improved bottom tracking and fish detection even at high speed Frequency: 2D CHIRP Traditional Wide Angle: 150-240khz (300W)

SIDEVÜ UHD TECHNOLOGY SideVü technology lets you see what's happening on both sides of the boat. You'll be able to spot structures and, above all, fish. It's precise, with a highly detailed, high-resolution image. This function makes it possible to locate fishing areas more quickly, thanks to an extremely wide 180° scanning field. Frequencies : SideVü UHD 455 kHz (425-485 kHz) SideVü UHD 800 kHz (790-850 kHz) SideVü UHD 1000 kHz (940-1100 kHz) As a result, you'll enjoy ultra-high-definition SideVü with 20% greater range at 1000 kHz (up to 150 meters on either side of your boat).

	CLEARVÜ UHD TECHNOLOGY ClearVü UHD technology is the most powerful on the market. It provides clear, high-quality images in Ultra High Definition of everything going on beneath the water's surface. You'll be able to see submerged structures, fish and objects with pinpoint accuracy. See thermoclines: boundary between water layers and oxygen-rich zones. Fish identification: no room for interpretation, it identifies clearly. Reveal structures: wrecks, vegetation, bridge pillars, corpses-dead... Frequencies : ClearVü UHD 455 kHz (425-485 kHz) ClearVü UHD 800 kHz (790-850 kHz) ClearVü UHD 1000 kHz (940-1100 kHz)

COMPATIBLE PANOPTIX LIVESCOPE LVS32 & LVS34 Connect an optional probe Panoptix LiveScope and benefit from an instant LIVE survey ! You have access to both LiveScope Down and LiveScope Forward modes from a single probe. You can also easily adjust the probe mode to suit your fishing techniques. Use LiveScope Forward mode to display razor-sharp images of your lure and the fish around your boat, and LiveScope Down mode to see what's happening directly under the boat. Probe LiveScope LVS32 or LVS34 optional.

	QUICKDRAW CONTOURS FUNCTION Quickdraw Contours software creates your hD fishing cards in real time. It's now possible to create your own maps without any special knowledge. With the Garmin ECHOMAP UHD2 92sv, you can store the equivalent of 8000 km² of maps Quickdraw Contours with bathymetric curves displayed every 30 cm. Download maps or share your own by connecting to WI-FI to the free ActiveCaptain app. Receive on-screen notifications of new updates to your echo sounder via the app.

WIFI AND CONNECTIVITY ECHOMAP UHD2 Visit Garmin ECHOMAP UHD2 enables wifi connection of a smartphone to use the Active Captain application iOS and Android, but above all the connection of 2 probes Echomap UHD2 between them to share the sounder view and user data. With this system, you can, for example, have your 1st sounder cabled to your stern transducer, while a second sounder located forward receives the sounder view of the 1st wireless via wifi allowing you to fish from all sides of the boat, while always keeping an eye on one of the screens. The 2nd useful feature of wireless is the ability to share certain sounder settings, in addition to screen copy. Here's what you need to know: sensitivity, range and interference filter. This means you can fine-tune these sounder settings on either screen. For other settings, however, you'll need to use your main screen. The wifi connection also lets you share updates. So you can put an SD update card in your first sounder, launch the update and then, once it's complete, re-launch it for the 2nd sounder via wifi, without moving the SD card from one to the other. ⚠️ No map sharing via wifi. You'll need a map on each of the 2 fishfinders

	THE BEST CARDS L'ECHOMAP UHD2 92sv gives you the best cards Garmin Navionics+ and Garmin Navionics Vision+. These include all the data Navionics, autoguiding technology and a host of other options. Use a microSD card (max. 32 GB) to store all your maps. You can record up to : 5000 waypoints 50,000 plot points 50 tracks 100 routes Thanks to Wi-Fi, pair your device with the free ActiveCaptain app and access OneChart to update, buy or download new maps.

Characteristics of ECHOMAP UHD2 SV Garmin at Comptoir Nautique

Global presentation Garmin ECHOMAP UHD2 SV

COMPARISON OF GARMIN STRIKER / UHD / UHD2 CV / UHD2 SV GPS HANDSETS

	STRIKER VIVID	ECHOMAP UHD	ECHOMAP UHD2 CV	ECHOMAP UHD2 SV
Screen type	WVGA with buttons	WVGA touchscreen (except UHD 62cv)	WVGA, TN with buttons	WVGA, TN Tactile + Buttons
Card reader	❌	✅	✅	✅
Techno sounder	2D+ClearVü+SideVü (on SV version)	2D+ClearVü+SideVü (on SV version)	2D + ClearVü	2D + ClearVü + SideVü
Wifi sharing	❌	❌	Partial (see description)	Partial (see description)
Probe	GT20 transom sensor-TM or GT52HW-TM (on SV version)	Transom sensor GT24UHD-TM or GT56UHD-TM (on SV version)	ClearVü GT20 transom sensor-TM	Transom sensor GT54UHD or GT56UHD (depending on model)
Quick-release bracket	❌	✅	❌	✅
NMEA2000/NMEA0183 port	❌	✅	❌	✅ (NMEA2000 only)
Network port/Panoptix	❌	✅ (except UHD 62cv)	❌	✅ (LiveScope compatible)
Ancillary connections	❌	✅ (Force geostationary, Mercury engine, Yamaha)	❌	✅ (Force geostationary, Mercury engine, Yamaha)
Screen cover	Optional	Included	Optional	Included
Sounder power	500W	500W	500W	500W
