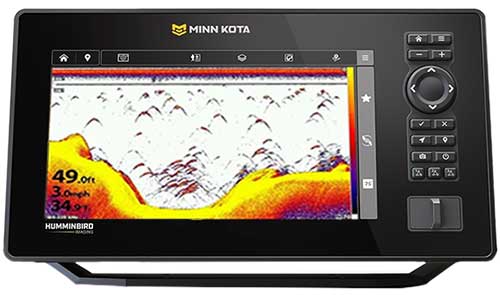

X9 2D CHIRP

TRADITIONAL 2D SONAR CHIRP

The Minn Kota X9 fish finder is equipped with a traditional fish finder CHIRP 1,000-watt single-channel transducer. It provides detailed images that make it easier to distinguish fish, underwater structures, and variations in the seabed.

• More detailed information and sharper images
• Better target separation, with fish arcs that are easier to distinguish
• Improved seafloor monitoring for fish detection

The probe holder accepts the probes CHIRP single-channel, whether they operate at low, medium, or high frequencies.

Supported frequencies:

• 50 / 83 / 200 kHz (HW DSC CHIRP & Airmar CHIRP (High/Medium/Low)

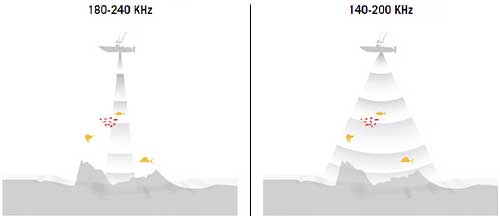

DUAL SPECTRUM TECHNOLOGY

Technology Dual Spectrum CHIRP covers a scanning range from 140 to 240 kHz. It uses low-Q ceramics to minimize parasitic vibrations and produce a clearer image of the water column.

The narrow beam, ranging from 180 to 240 kHz, emphasizes detail and bottom reading. The wide beam covers a larger area. You can also combine the two to take advantage of their respective features depending on fishing conditions.

Available frequencies and angles:

• Narrow Beam 180-240 kHz at 25°
• Wide beam 140-200 kHz at 42°
• Combination of the two beams 150-220 kHz

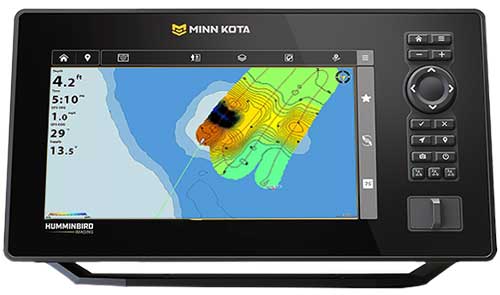

AUTOCHART LIVE

With AutoChart Live, create your own depth charts of the bodies of water you're exploring, for your personal use. The map is displayed directly on the fishfinder and is updated as you move.

The AutoChart Live software comes preloaded with 8 hours of recording capacity. In addition to the seabed topography, it can display changes in vegetation and seabed hardness. This provides you with a detailed map of your fishing areas, based on your own surveys.

To increase the memory capacity of the AutoChart Live feature, the AutoChart map is necessary.

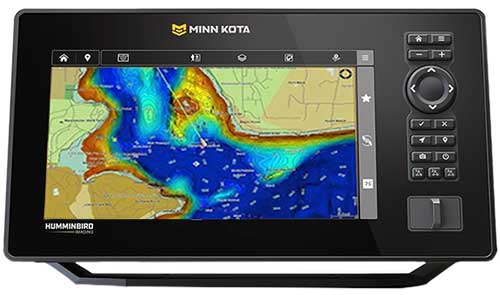

GPS & MAPS

The Minn Kota X9 features a built-in 10 Hz GPS antenna to accurately track your location while navigating and help you find your fishing spots.

Waypoint and route management has been updated. With a capacity of up to 10,000 waypoints and routes, you can save your locations, search for them, organize them, and import or export them more easily.

The Model X is compatible with cards Navionics+, , Platinium+, , CoastMaster and LakeMaster.

Please note that the navigation map is not included with the device.

CONNECTIVITY AND NETWORKING

Thanks to its Ethernet port, the Minn Kota X9 can be connected to other compatible devices installed on your boat.

It also supports NMEA2000, Bluetooth, and Wi-Fi connections-Fi, which makes it easy to integrate into a system comprising multiple devices.

Depending on the equipment on board, you can, for example, connect it to a radar CHIRP, an AutoPilot system, a VHF radio, or a Audio equipment Fusion compatible.

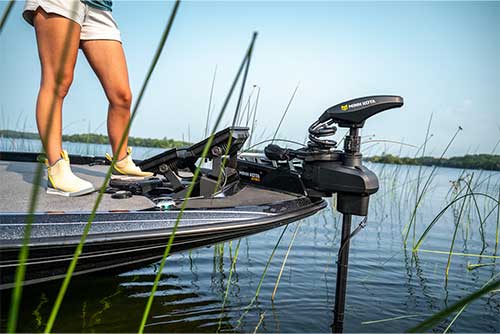

MINN KOTA FISHING ECOSYSTEM

The Minn Kota X9 offers more than just fishfinder and GPS functions. When connected wirelessly to a compatible Minn Kota motor, it provides access to a variety of navigation and boat management controls directly from the screen.

• Draw & Navigate: Draw a route that your compatible Minn Kota motor can follow
• Intelligent Depth Control: Monitor the depth as you move
• Wireless connection: Communicate directly with your compatible Minn Kota motor
• Minn Kota Fishing: Manage your gear and waypoints in the app
• Minn Kota Live Sonar: Record and Share Your Sonar Images
• Wi-Fi: Download updates and manage compatible devices
• Minn Kota Maps: Access mapping features with premium maps (optional)

This allows you to plan your routes, monitor your fishing areas, and manage the compatible features of your system without having to use multiple controls on board.

KEY POINTS:

• Wi Update-Fi
• Internal GPS
• Power: 1,000 W
• Improved interface
• NMEA2000 Connection
• Faster processor
• Resolution: 1280 x 720 px
• CrossTouch: Touchscreen & Buttons

BOX CONTENTS:

• 1 - Minn Kota X9 Display CHIRP 2D
• 1 - Silicone protective cover
• 1 - Screen Mounting Bracket
• 1 - 12V Power Cable
• 1 - PDF Documentation
