NSX UltraWide

QUICK AND EASY CONFIGURATION

The NSX UltraWide has been designed to be quick and easy to use, thanks to a clear configuration wizard and the integration of the Simrad application.

Step by step, the wizard guides you through the process of getting your system up and running quickly and smoothly.

In particular, you can easily enter your boat's main parameters:

• Engine and tank configuration
• Engine tuning and optimization autopilot
• Dockside and underway radar calibration

Combined with the Simrad Navigation application, the NSX UltraWide centralizes your boat's information and uses data from your equipment connected via NMEA2000 or Ethernet to provide you with an accurate, consistent reading of your installation.

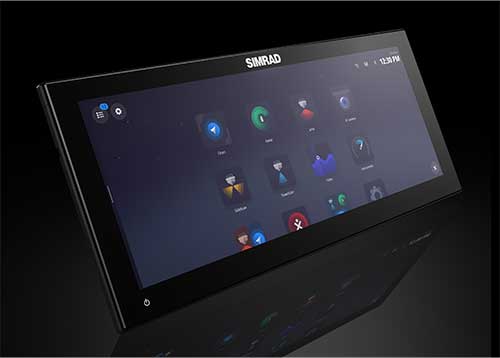

INTUITIVE 12" MULTITOUCH DISPLAY

Its UltraWide format provides real comfort at the helm. Mapping remains perfectly legible, while leaving room for side-by-side display of instrument panel, sonar view or engine data. So you have all the essential information at a glance, without the feeling of a cluttered screen.

• SolarMAX IPS touchscreen, perfectly sunlight-readable
• 1920 x 720 px resolution for crisp, detailed display
• Day and night modes for enhanced visual comfort
• Customizable interface with configurable instruments

At the touch of a button, you can switch from one application to another, adapting the display to your needs, whether you're sailing, fishing or at anchor.

HALO RADAR COMPATIBILITY

Halo Dome and Open Array radars are supported by the NSX UW, with the ability to use multiple radars simultaneously.

You can immediately spot nearby dangers while keeping a more distant view of your surroundings, directly on the same screen.

This is a real asset for navigating more serenely in crowded areas, maintaining a good perception of your surroundings in reduced visibility, monitoring weather trends offshore or spotting birds indicating an area suitable for fishing.

The NSX UltraWide also offers several display modes for both novice and experienced sailors, with tools that can be accessed quickly: VelocityTrack, guard zone, target tracking and much more.

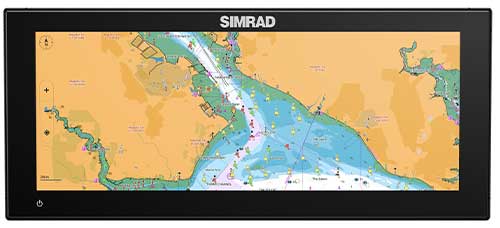

CARTOGRAPHY C-MAP

The NSX 3012 UltraWide is designed to take full advantage of C-MAP Discover X and Reveal X cartography. The display is particularly clear on the high-definition panoramic screen, for fast, comfortable reading of navigation information.

• Compatible with C-MAP Discover X and Reveal X maps
• Quick access to display settings
• Updates and enhancements manageable directly from the device
• MicroSD drive for mapping and data storage

The configuration wizard also makes it easy to set up your cockpit, even for a complete, advanced installation.

SIMRAD SMARTPHONE APPLICATION

Stay connected to your NSX UltraWide with the Simrad app, available on iOS and Android.

Prepare your routes in advance, find your waypoints, synchronize your tracks between your screen and your smartphone, and access many useful functions before, during and after your sea outings.

Simple, practical and free of charge, the Simrad Navigation app quickly becomes a real complement to the on-board handset.

NSX ULTRAWIDE presentation

NSX presented by the developers

MAIN POINTS :

• 1kW depth sounder
• 10Hz internal GPS
• 1000 nits brightness
• IP camera compatible
• NMEA2000 compatible
• Integrated Ethernet and Wifi
• Micro SD card reader
• Dimensions: 337 x 148 x 88 mm

BOX CONTENTS :

• 1 - NSX UltraWide 3012 display
• 1 - Mounting bracket
• 1 - Protective cover
• 1 - Power cable
• 1 - Mounting kit
• 1 - PDF documentation
