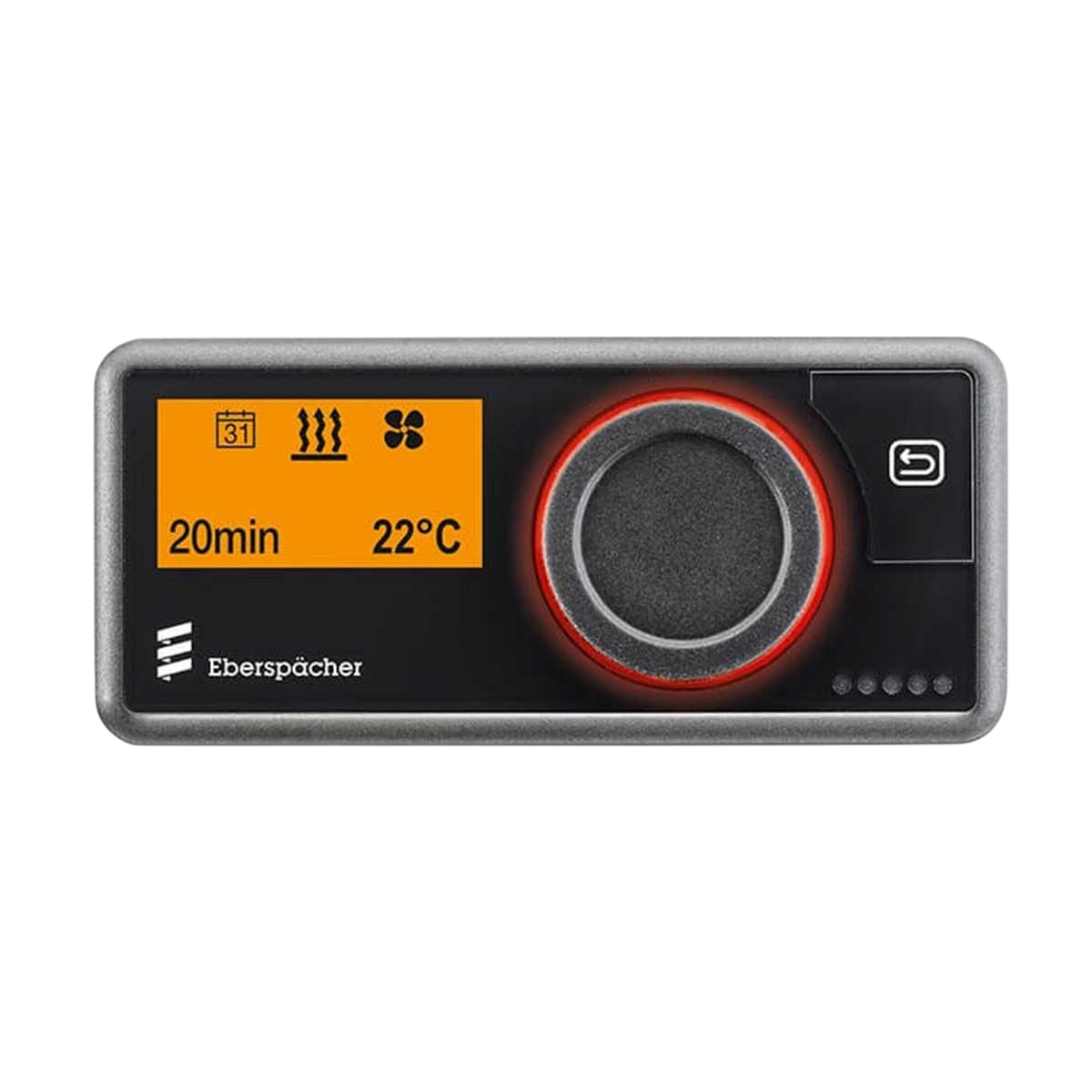

Easystart Pro control

Benefits :

• Intuitive control knob navigation
• Integrated temperature sensor
• Control of one to two separate heaters or a group of two identical heaters (Airtronic 2 or Hydronic HS3)
• Easy-to-use text-based diagnostic function
• Detailed workshop diagnostics
• Integrated residual heat function for Hydronic heaters: efficient heating mode using engine residual heat
• Clear device status display (home screen)
• Timer function: up to three programs can be configured
• Display and LED light ring for easy status identification in all operating conditions
• Various mounting options (surface-mounted with concealed or visible cable feed-through, flush-mounted)
• Flat cable for optimized mounting
• Possibility of setting unlimited heater runtimes (Airtronic 2 or Hydronic HS3)
• In addition to English and German, menus are available in 25 other languages (from T4/2018 via EasyScan)

Other features :

• Wizard for simplified installation
• Maintenance interval setting
• Express heating via "Long press" function
• Possibility of connecting another CAN control element :
• EasyStart Web (from T4/2018) or another EasyStart Pro
• Display can be permanently illuminated
• Easy diagnostics via EasyScan without disassembly

The coloured light ring on the control knob indicates the operating mode in use:

• Red: Heating
• Blue: Ventilation
• Orange: Use of residual heat when motor is hot

Operating information:

• Supply voltage: 12/24V
• Dimensions: 81.8 x 37 x 13.5mm (without control knob), 81.8 x 37 x 18.6mm (with control knob)
• Protection rating: IP5K2
• Standby power consumption
• Permissible ambient operating temperature range : -40 to +85°C
