Italwinch

Obi 1000 horizontal windlass

Ref. OSC-02.408.05

The Italwinch Obi 1000 12V 1000 W horizontal windlass is ideal for motorized anchoring on pleasure boats up to 15 meters.

Compact and easy to integrate on deck, it is designed for an 8 mm chain and helps lift the anchor effortlessly. It's a practical solution for anchoring faster and setting sail again with greater peace of mind.

from
€1,258.20 Tax included
-12%
€1,443.52
Pay in installments
3x 4x 10x 12x 24x 60x
or pay in
24x 60x
Quantity
Choose a version
In stock in 8 to 10 days
Fast delivery learn more
1258 loyalty points Earn €12.58 in rewards
Experts’ advice Contact us from 8 AM to 5 PM
Trustpilot reviews 94% satisfaction based on 3,800 reviews
Reseller Premium
Payment 100% secure
  • In the same family
    • Article
    Type Motor - V Motor - W Average consumption A Sprocket Ø chain mm Max. towing capacity kg Working load kg peso
    In stock in 8 to 10 days
    Obi500 12 500 60 6 270 90 8,2
    €621.49
    In stock in 8 to 10 days
    Obi500 12 700 90 6 300 100 8,8
    €661.23
    In stock in 8 to 10 days
    Obi500 12 700 90 8 300 100 8,8
    €661.23
    In stock in 8 to 10 days
    Obi1000 12 1000 115 8 420 130 17,3
    €1,258.20
    In stock in 8 to 10 days
    Obi1500 12 1500 130 8 450 150 17,6
    €1,323.38
    In stock in 8 to 10 days
    Obi1500 12 1500 130 10 450 150 17,6
    €1,323.38
    In stock in 8 to 10 days
    Obi1500 24 1500 70 8 480 160 17,6
    €1,355.97
    In stock in 8 to 10 days
    Obi1500 24 1500 70 10 480 160 17,6
    €1,355.97
    OSC-02.408.05

    Data sheet

    Voltage
    12V
    Power
    1000 W
    Doll
    Without doll
    Sprocket diameter
    8 mm
    Description

    Italwinch - Obi 1000 horizontal windlass

    The Obi 1000 is a horizontal electric windlass designed for boats looking for a compact, reliable mooring solution. In a 12V, 1000 W version, it facilitates chain winding and significantly reduces on-board effort.

    Its sprocket is designed for 8 mm chain, making it ideal for a wide range of yachting applications. For efficient operation, installation and wiring must be correctly dimensioned, with appropriate protection.

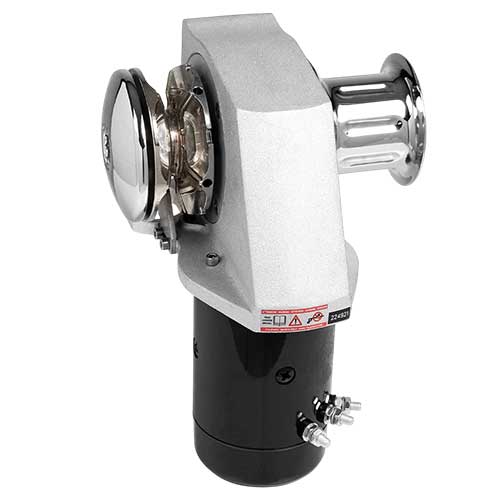

    Guindeau horizontal Italwinch Obi 1000 12V 1000W chaîne 6 mm

    Discreet integration on deck

    The horizontal format of the Obi 1000 windlass is ideal when a compact, easy-to-install and simple-to-use windlass is required. It supports daily mooring maneuvers, reducing fatigue when lifting the anchor.

    • Compact horizontal design
    • More comfortable anchoring maneuvers
    • Suitable for 8 mm chain
    • Equipped with chain tensioner
    • Integrated chain counter sensor

    Once at anchor, the load must be taken up by a chain stopper or solid attachment point, not by the windlass.

    TECHNICAL SPECIFICATIONS OF THE OBI 1000 HORIZONTAL WINDLASS

    OBI 1000 1000 W

    OBI 1000 12V 1500 W

    OBI 1000 24V 1500 W
    Headstock ✔️ ✔️ ✔️
    Motor power 1000 W 1500 W 1500W
    Chain sprocket (mm) 8 mm 8/10 mm 8/10 mm
    Voltage 12 V / 115 A 12 V / 130 A 24 V / 70 A
    Max. pulling capacity 1250 kg 1350 kg 1390 kg
    Working load 130 kg 150 kg 160 kg
    Lifting speed 25 m/min 26 m/min
    Bridge thickness
    		15-65 mm
    Weight 17.3 kg 17.6 kg

    MAIN POINTS :

    • 2-year warranty
    • 12V motor - 1000 W
    • 8 mm chain sprocket
    • Compact horizontal format
    • Recommended circuit breaker 100 A

    BOX CONTENTS :

    • 1 - Obi 12V 1000W windlass with geared motor
    • 1 - Remote control switch with inverter box
    • 1 - Drilling template
    • 1 - Crank handle
    • 1 - PDF documentation

    Download

    Windlass manual Obi 500 Obi 1000

    Manual horizontal windlass Obi 500-1000 Italwinch (IT-EN-FR-DE-ES)

    Download (730.45k)
