Italwinch

Devon horizontal windlass

Ref. OSC-02.409.01

The Italwinch Devon 12 V 1000 W horizontal windlass with 8 mm chain sprocket is powerful and reliable for clean, even anchoring.

It offers a maximum pull of 1290 kg and a lifting speed of 25 m/min. With its corrosion-resistant anodized aluminum body, it is suitable for boats up to 15 m.

from
€1,323.38 Tax included
-12%
€1,517.59
Pay in installments
3x 4x 10x 12x 24x 60x
or pay in
24x 60x
Quantity
Choose a version
In stock in 8 to 10 days
Fast delivery learn more
1323 loyalty points Earn €13.23 in rewards
Experts’ advice Contact us from 8 AM to 5 PM
Trustpilot reviews 94% satisfaction based on 3,800 reviews
Reseller Premium
Payment 100% secure
  • In the same family
    • Article
    Motor - V Motor - W Average consumption A Sprocket Ø chain mm Max. towing capacity kg Working load kg peso
    In stock in 8 to 10 days
    12 1000 115 8 450 150 28
    €1,323.38
    In stock in 8 to 10 days
    24 1000 60 8 480 150 28
    €1,343.75
    In stock in 8 to 10 days
    12 1500 130 8 540 180 30
    €1,351.90
    In stock in 8 to 10 days
    12 1500 130 10 540 180 30
    €1,351.90
    In stock in 8 to 10 days
    24 1500 70 8 570 190 30
    €1,371.27
    In stock in 8 to 10 days
    24 1500 70 10 570 190 30
    €1,371.27
    OSC-02.409.01

    Data sheet

    Voltage
    12V
    Power
    1000 W
    Doll
    With doll
    Sprocket diameter
    8 mm
    Description

    Italwinch - Devon horizontal windlass

    In this 12 V, 1000 W version, the Devon windlass is fitted with an 8 mm chain sprocket. It has a maximum pull of 1290 kg, a working load of 150 kg and an ascent speed of up to 25 m/min.

    At the bow of the boat, maneuvering at anchor must be simple, fast and safe. The Devon windlass ensures even chain ascent and good control on descent. Its horizontal format also frees up space below deck. It's a practical solution for saving time at anchor and keeping a clean anchorage, even when conditions deteriorate.

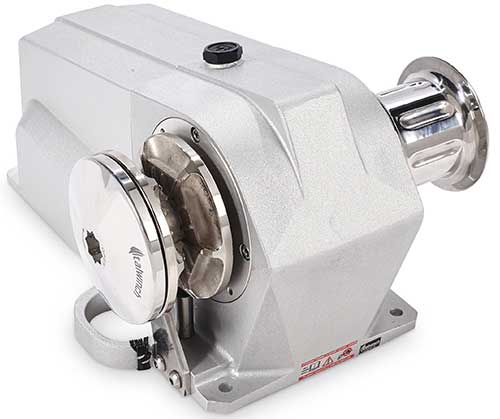

    Guindeau horizontal Italwinch Devon 12 V 1000 W

    Efficient power at anchor

    Thanks to its 1000 W, 12 V motor, the Devon offers the power needed to raise the anchor smoothly and without-jerks. It offers a maximum pull of 1290 kg, a working load of 150 kg and a chain speed of up to 25 m/min.

    • 12 V motor - 1000 W
    • Maximum traction: 1290 kg
    • Working load: 150 kg
    • Lifting speed: 25 m/min
    • Integrated chain counter sensor

    You'll enjoy a more comfortable ascent, with more control and less effort on board, whether you're sailing or at anchor.

    DEVON HORIZONTAL WINDLASS SPECIFICATIONS

    Devon 1000W 12 V

    Devon 1000W 24 V

    Devon 1500W 12 V

    Devon 1500W 24 V
    Headstock ✔️
    Motor power 1000 W 1500 W
    Voltage 12 V 24 V 12 V 24 V
    Max. pull
    		1290 kg 1310 kg 1350 kg 1370 kg
    Working load 150 kg 160 kg 180 kg 190 kg
    Lifting speed 25 m/min 26 m/min
    Current 115 A 60 A 130 A 70 A
    Recommended circuit breaker 100 A 70 A 120 A 80 A
    Weight 25 to 28 kg

    MAIN POINTS :

    • Maximum traction: 1290 kg
    • Sprocket for 8 mm chain
    • Lifting speed: 25 m/min
    • Suitable for boats up to 15 m
    • 1000 W motor - 12 V with IP66 protection

    BOX CONTENTS :

    • 1 - Devon 12V 1000W windlass with geared motor
    • 1 - Remote control switch with inverter box
    • 1 - Drilling template
    • 1 - Crank handle
    • 1 - PDF documentation

    Download

    Manuel guindeau Devon Italwinch

    Manuel guindeau horizontal Devon Italwinch (IT-EN-FR-DE-ES)

    Download (506.16k)
