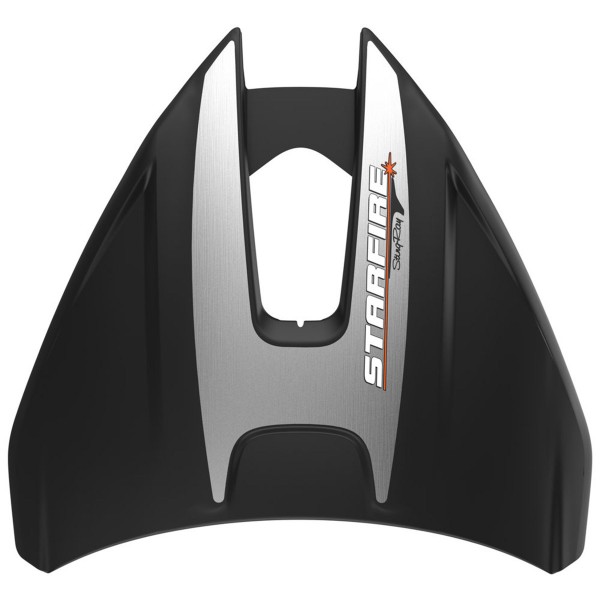

STINGRAY Hydrofoil Starfire black

SIMPLE INSTALLATION FOR ALL ENGINES

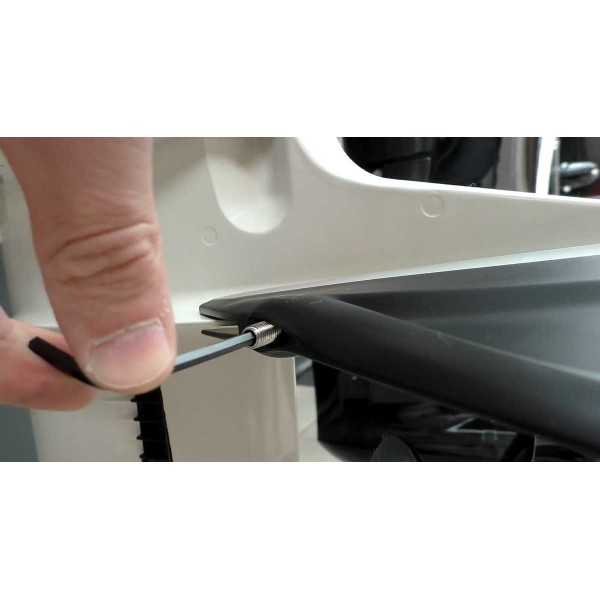

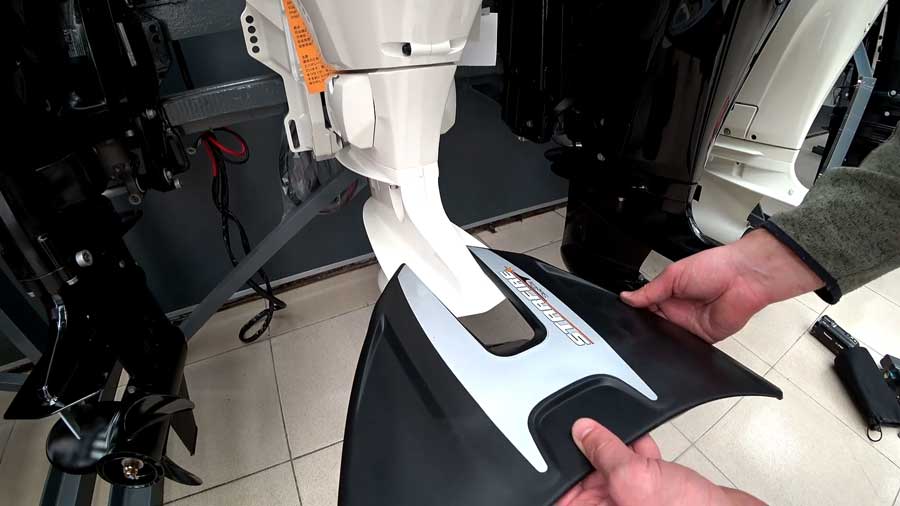

The Starfire offers two installation methods: without drilling (No-Drill) or with drilling (Drill). The No-Drill version is ideal for engines from 40 HP upwards, offering fast, reversible mounting without damaging the engine:

• Assembly in just a few minutes thanks to locking screws
• Engine warranty protection
• Fully reversible

Drilling is recommended for motors of less than 40 HP : thinner or narrower anti-cavitation plates do not provide an optimal fit with the No-Drill system. In this case, through-bolt mounting ensures a secure mechanical hold, even at full speed.

MODERATE LIFT (LIFT LEVEL 2)

The StingRay Starfire is rated Lift Level 2 = Moderate on a 3-level scale:

• Lift Level 1 = Average (moderate effect)
• Lift Level 2 = Moderate (intermediate effect)
• Lift Level 3 = Maximum (strong effect)

This intermediate lift level offers a perfect balance between performance and safety:

• More linear and stable acceleration

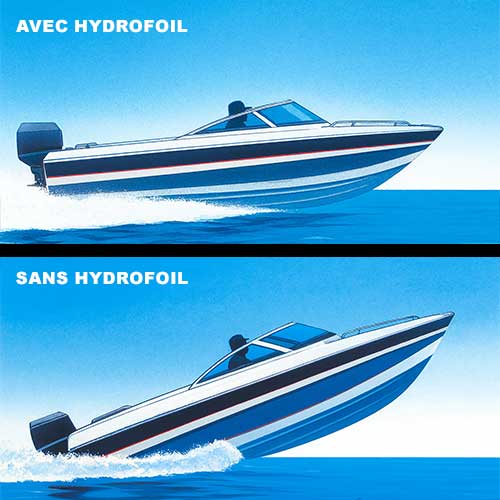

• Significantly reduced pitch-up on start-up
• Better glide ratio at low speeds
• Ideal for regular or family outings

KEY FEATURES

• Compatible with motors from 40 to 300 HP
• No-drill or through-bolt mounting
• Intermediate lift (Lift Level 2)
• Quick boat planing
• Improved low-speed stability
• Reduced pitch-up under acceleration

BOX CONTENTS :

• 1 - Hydrofoil StingRay Starfire black
• 1 - Screw kit
• 1 - Hexagonal wrench
• 1 - PDF documentation
