Bluetooth wireless ultrasonic wind vane - Calypso Ultrasonic Mini

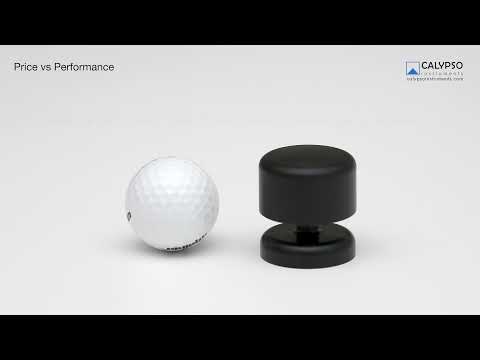

AS SMALL AS A GOLF BALL

The Calypso Ultrasonic Mini CMI1021 is the smallest wind vane on the market (43x47mm), even smaller than the Calypso Bluetooth CMI1006 (70x57mm ), yet it doesn't skimp on features:

• Bluetooth,
• Waterproof,
• Wind speed/direction,
• Wireless induction charging,
• 150h battery life,
• NMEA2000 compatible via NMEA CONNECT PLUS NCP interface (sold separately).

BLUETOOTH WIRELESS WIND VANE

The Calypso Ultrasonic Mini portable ultrasonic wind vane connects wirelessly to your Android or iOS (iPhone) smartphone with the freely available AnemoTracker app.

The AnemoTracker app from Calypso displays data and much more:

• Apparent wind speed and direction.
• Actual wind speed and direction (if used on a vehicle or boat).
• Track your wind data and export via Excel or Google Earth.
• Firmware update from within the application.
• Adjustable damping in wind direction.
• Velocity Made Good calculations.
• New derived data: elegant graphs with averages and deviations.
• Configure measurement units: m/s, km/h, Kt.
• Threshold alarm, direction offset, map mode, etc.

The wind vane is also compatible with other mobile marine and weather applications... weather4D, Sentinel Marine Solutions, iRegatta, Sail Racer, SailGrib, etc.

MOUNTING ACCESSORIES SOLD SEPARATELY

The Mini portable ultrasonic wind vane has a 6.35mm (1/4") female thread, perfect for mounting on any tripod or pole.

Mounting accessories, sold separately, allow you to attach the windvane wherever you like (on top of a mast, on the roof of a car, above the cabin of a boat, etc.)

The Ultrasonic Mini is particularly useful for extreme sports: kitesurfing, kayaking, windsurfing, paragliding, as well as golf, shooting, drone piloting and even firefighting.

All activities that require fast, accurate and easy access to wind data.

ULTRASONIC MINI CALYPSO FEATURES

The Calypso wind vane recharges wirelessly on the induction charger included in the box, providing a battery life of around 150 hours (6 days)

• Bluetooth: Yes
• Data speed: 1 Hz
• Wind speed: Range: 0 to 56 knots
• Wind speed resolution: ±0.1 m/s
• Wind direction: Range: 0 to 360
• Wind direction resolution: ±1º
• Units and measurements: m/s, knots, Km/h
• NMEA0183 (RS485) : Via NCP box (sold separately)
• NMEA2000: Via NCP box (sold separately)
• Wifi: Via NCP box (sold separately)
• Update capability: Yes
• Water resistance: IPX8 (waterproof to 10 m)
• Power supply: Battery (150h autonomy, induction charger)
• Mounting: 1/4" female thread

MAIN POINTS :

• Weight: 0.078 kg
• Size: 43x47 mm
• 150h battery life,
• Bluetooth connection
• Simple and easy assembly

CONTENTS OF BOX :

• 1 - Anemometer wind vane Calypso Ultrasonic Mini
• 1 - QI wireless charger
• 1 - PDF documentation
