Pack d'instruments iSeaSense pour voilier

Name: Pack d'instruments iSeaSense pour voilier
Brand: Digital Yacht

The iSeaSense instrument package for sailboats integrates wind, speed, depth and temperature sensors.

Designed around a NMEA 2000 network, it offers Wi-Fi connectivity to facilitate onboard data sharing and analysis directly on a computer, tablet or smartphone, or a NMEA 2000-compatible display.

DIGITAL YACHT - ISeaSense wind speed depth temperature instrument package

The iSeaSense instrument pack for sailboats includes a DST810 sensor for measuring water depth, speed and temperature, as well as pitch and roll detection with an integrated spatial sensor. The WND 100 wind vane also measures actual and apparent wind data.

Its advanced algorithm automatically adjusts the data according to the boat's heel. Accessible via an intuitive web interface, with no app to install, iSeaSense runs on iOS, Android, PC, Linux, Mac and even Kindle. It allows simultaneous connection of up to three devices, with fast 5Hz updates and extensive compatibility with major navigation applications such as Navionics, TZ iBoat or OpenCPN.

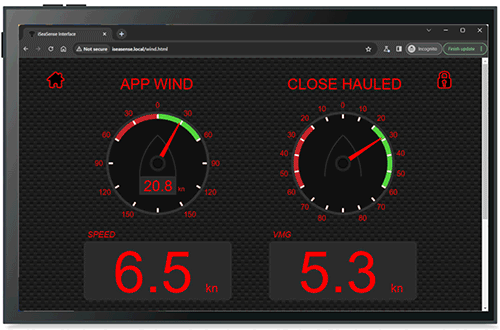

	HOW THE PACKAGE WORKS Access to the iSeaSense display is simply via a web browser, with no installation or internet connection required. Simply enter the device's IP address or type iSeaSense.local into your search engine to display a complete dashboard containing all data from instruments connected to the NMEA 2000 network. The system offers several predefined and fully configurable pages, allowing the user to organize the information according to his needs. Each display can be customized, saved and shared, providing an ideal solution for yachtsmen and yachting professionals alike.

A COMPLETE PACKAGE The instrument package for sailboats includes the Wi-Fi iSeaSense interface, complete NMEA 2000 cabling and a DST810 sensor measuring depth, speed and temperature, with integrated pitch and heel sensors. The WND100 wind sensor enriches the network with anemometric data. Installation is simple thanks to a slim, flexible 20 m cable, ideal for masthead mounting. The iSeaSense server generates up-to-date display pages at 5 Hz, accessible from any connected device (PC, smartphone, tablet or iPad). Advanced calibration functions enable precise adjustment of the transducer and wind sensor, while an additional NMEA 2000 T-connector makes it easy to add other instruments or displays to the system.

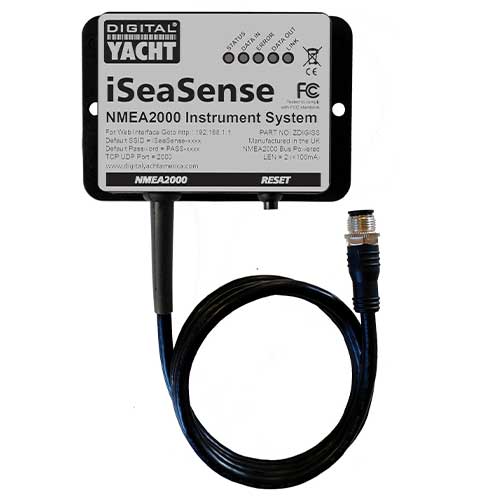

	ISEASENSE INTERFACE The iSeaSense interface combines a NMEA 2000 connection with an integrated Wi-Fi gateway, offering a complete solution for navigation data management. Its on-board server displays instrument information in real time, with configurable pages for depth, speed, temperature, wind, GPS, navigation, time and compass. The system integrates diagnostic, adjustment and calibration tools, as well as a data logging function. Auto-powered by the NMEA 2000 network, it features a Wi-Fi antenna covering up to 20 m, and supports TCP/IP and UDP protocols, enabling data to be broadcast to a variety of navigation software applications. Up to seven devices can be connected simultaneously for smooth, comprehensive monitoring of boat performance.

DST810 PROBE The DST810 sensor provides precise measurements of boat depth, speed, water temperature, heel and pitch. It offers high responsiveness with fast update rates: 1 Hz for depth, 5 Hz for speed and 10 Hz for heel/trim, covering a range from 0.3 to 45 knots. Operating at 235 kHz, it limits interference with conventional depth sounders (50/200 kHz) and can measure depths of up to 100 m. Compatible with a hull elevation of up to 22°, it comes with a 6 m NMEA 2000 cable and is powered directly via the system backbone. The transducer also features a Bluetooth interface for advanced calibration, and is available with stainless steel or bronze fittings to suit installation requirements.

	WND200 WIND SENSOR The WND200 package combines the WND100 wind vane-anemometer with the iKonvert NMEA 0183-2000 interface, ensuring full integration into the NMEA 2000 network. Powered from 8 to 18 V, it consumes just 25 mA, guaranteeing optimum energy efficiency. Its ultra-thin (4 mm) 20 m cable facilitates masthead installation. The system offers outstanding accuracy with a margin of error of less than 4° for wind angle and 3% for speed, measuring winds from 1.7 to 80 knots. With a fast response time of around 1.3 seconds, the WND200 provides reliable, responsive data for more accurate navigation.
