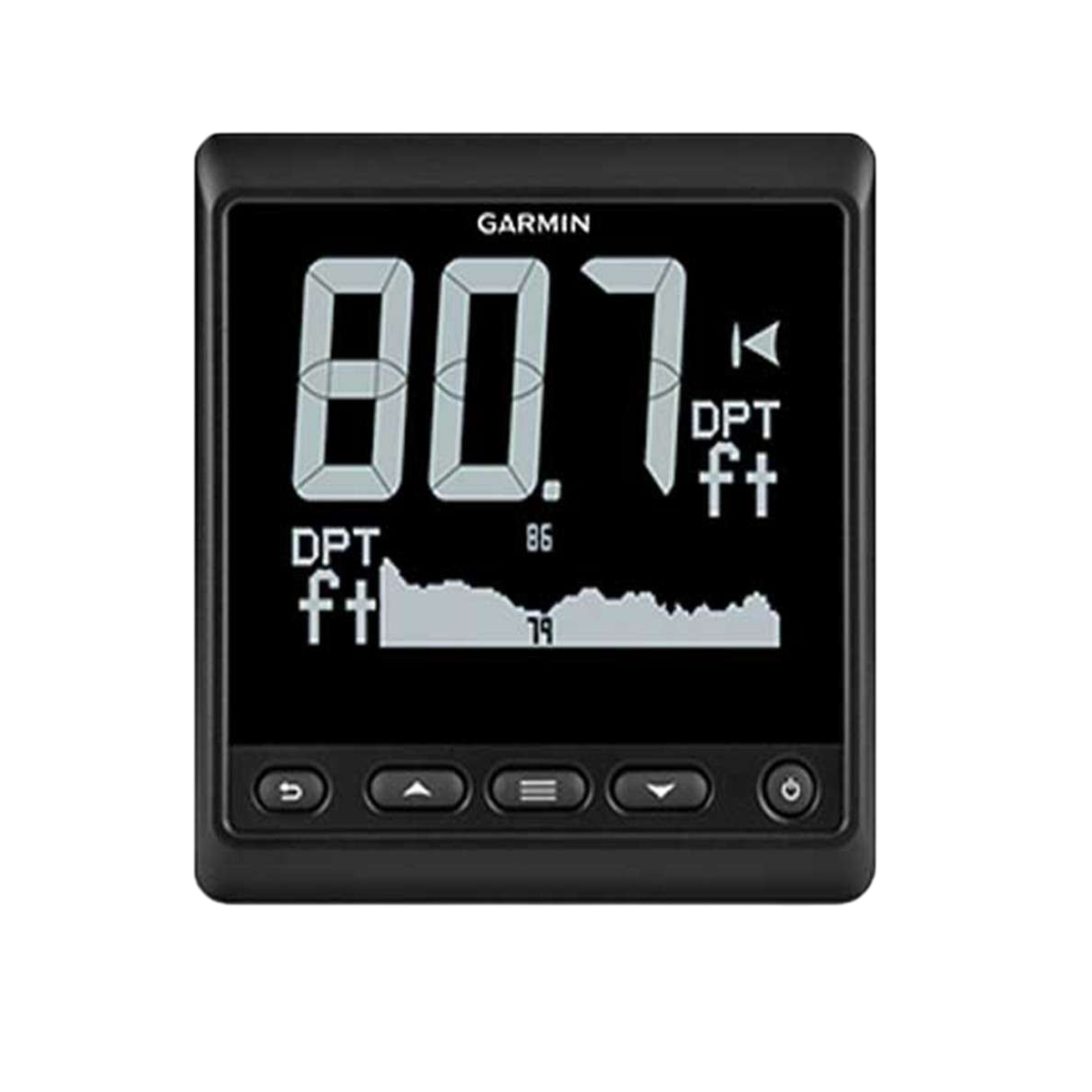

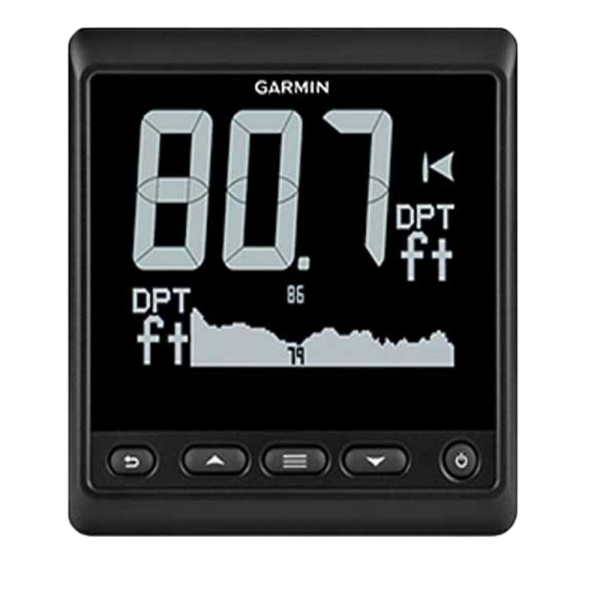

GNX 21 display

Ref. 010-01142-10

The GNX21 is a navigation display that shows depth, speed, wind and over 50 different parameters. It features a white display on a black or colored background for easy day and night readability.

Read more Features
€409.90 Tax included
Public price
€479.00
-14%
Price tax excl. / DOM TOM €341.58
Quantity
By buying this product you can collect up to 409 loyalty points. Your cart will total 409 points that can be converted into a voucher of €4.09.
010-01142-10

Data sheet

Product type
Display, Navigation instrument
Display
Loch / Speedo, Depth gauge, Trifunction, Wind vane / Anemometer
Connection
Wired
Description

GARMIN - GNX21 - PERFECT LEGIBILITY

A must-have for sailboats, the GNX21 Garmin is a navigation display featuring a 4" LCD screen with 36 mm white digits on a black or colored background (6 different colors) for improved readability, day or night. It displays navigation data from the boat's various sensors: speed, depth, wind... and also 50 different parameters.

Information can be displayed in 5 different configurations, including a graphical/historical mode. In fact, it's the first navigation instrument to combine LCD segments and a dot-matrix area with a graphic display of information. The GNX21 consumes very little power: 350 mW without backlighting / 400 mW with half-intensity backlighting. This practical instrument also features automatic information scrolling, so you can scroll from page to page hands-free.

When it comes to installing the GNX21, you can choose between flush-mounting or integrated into the boat's console for added modernity.

GNX21 couleur.png

KEY FEATURES

  • Waterproofing: IPX7
  • Anti-fog LCD display
  • Dimensions: 110 x 115 x 30 mm
  • NMEA 2000/NMEA0183 compatible
  • Maximum digit size: 36.4 mm
  • Power consumption: 0.35 W (day); 0.4 W (night)
  • NMEA0183 compatible with optional cable 010-11074-00



BOX CONTENTS :

  • 1 - GNX21
  • 1 - Screw cover
  • 1 - T-connector
  • 1 - Flush mounting kit
  • 1 - Protective cover
  • 1 - NMEA 2000 branch cable
  • 1 - NMEA 2000 power cable
  • 1 - PDF documentation
