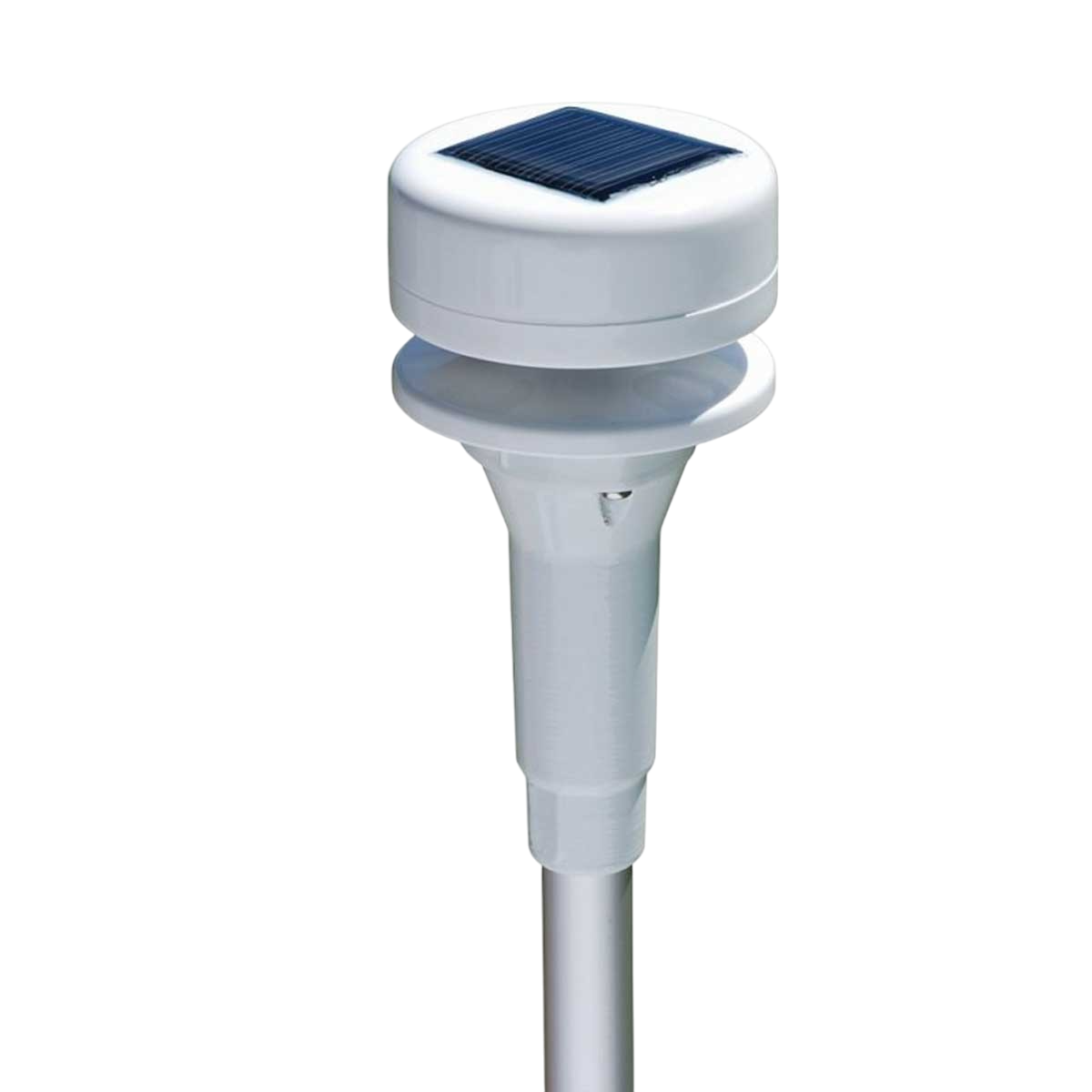

Wireless ultrasonic wind vane (solar)

FEATURES

The CV7SF2 wireless solar ultrasonic wind sensor is equipped with a LiFePo4 battery .

• Message duration: 25ms
• Transmitting power: 10dBm
• Refresh rate: 2 times per sec. day and night

Receiver box:

• +12Vdc (5 to 14Vdc, 6mA)
• Screw terminal connections
• ASK 433 Mhz super-heterodyne receiver sensitivity: -110 dbm

Measuring range:

• Wind force: 0.25 to 80 knots
• Wind angle: 0 to 359
• Temperature: -15°C to +50°C
• Atmospheric pressure: 750 to 1100 mB

Measurement sensitivity:

• Wind angle: +/-2
• Wind force: 0.25 knots
• Wind temperature: +/- 2°C

MAIN POINTS :

• Weight: 0.2 kg
• Power supply: 12V
• NMEA0183 connection: 1
• Direction sensitivity: ±1
• Wind module sensitivity: 0.25 Nd

BOX CONTENTS :

• 1 - CV7SF2 wireless ultrasonic wind sensor
• 1 - Receiver box
• 1 - Fixing bracket
• 1 - 31cm vertical bracket
• 1 - PDF documentation
