CLIPPER Duet Loch Speedo Depth system

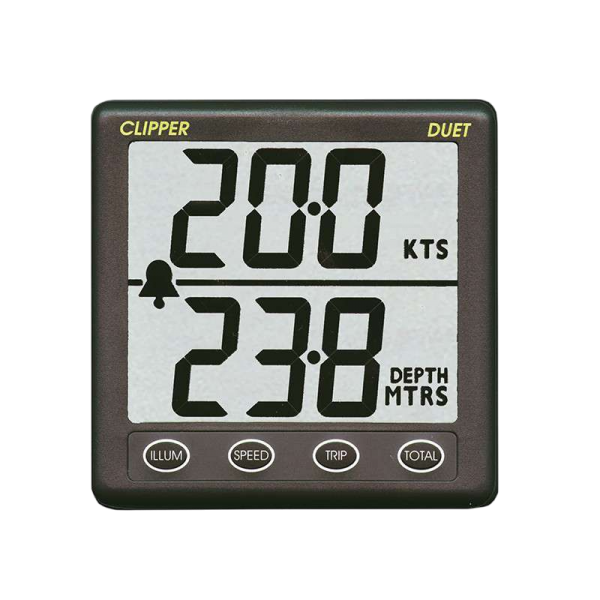

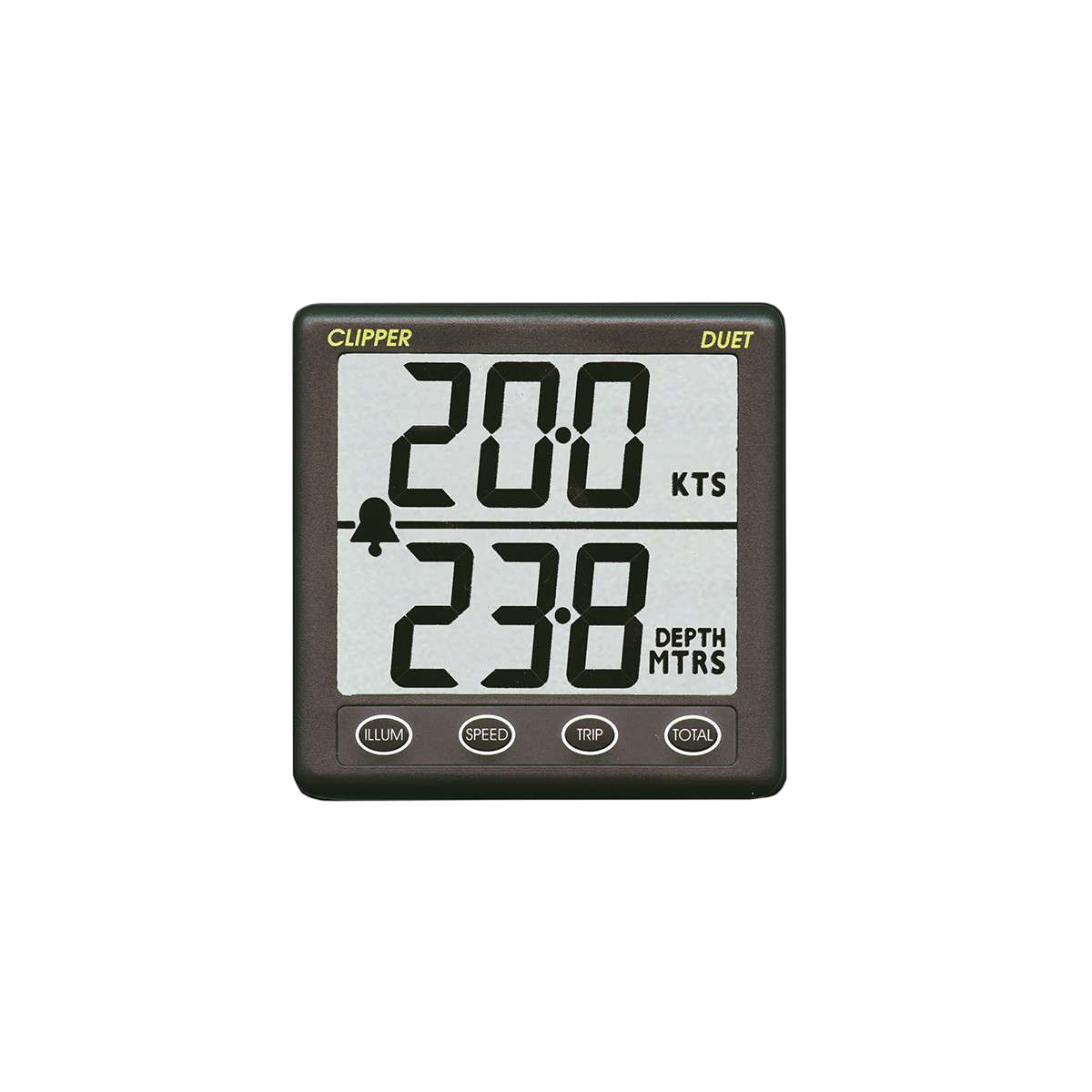

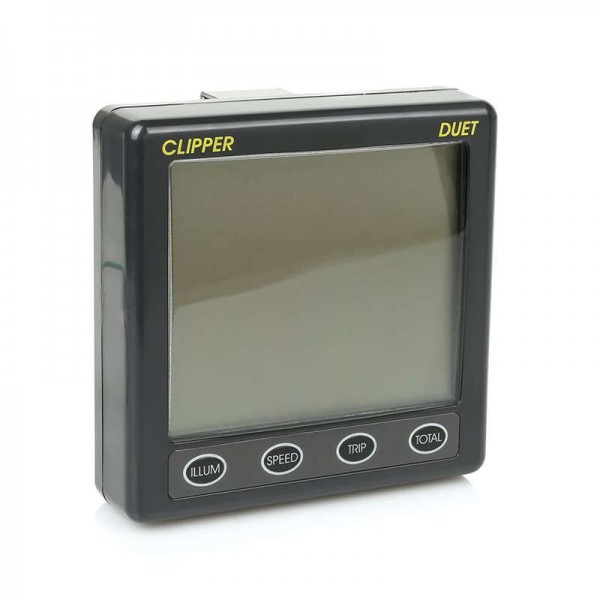

NASA CLIPPER DUET DISPLAY

The CLIPPER DUET display combines a depth sounder and a log in a single unit. It displays speed and depth thanks to through-the-water sensors (included in the pack).

The display screen is exceptionally easy to read, thanks to a backlit-display with 7 lighting levels and 32 mm digits. Its 110 x 110 mm case is waterproof on the front for outdoor mounting.Mounting depth: 40 mm

Displays wind speed in knots, mph or km/h and distance in miles, nautical miles and km.

150KHZ DEPTH SENSOR

This pass-through probe has been specially designed for NASA MARINE's CLIPPER depth sounders. With its 150 KHzfrequency , it helps to determine the depth of the seabed down to 100m.

Supplied with 7 m cable and connector.

SPEEDO LOCH WITH PASS-HULL

The loch supplied in the Pack provides reliable and accurate surface speed indication at-above 2 knots. It also enables you to calculate the distance covered by your boat and the water temperature.

This sensor is delivered with a hull pass- whose characteristics are as follows:

• Hull pass-height: 63 mm
• Hole diameter: 41 mm
• Inside diameter: 31 mm

Passe-hull delivered without obturator plug.

MAIN FEATURES :

• High and low bottom alarm
• Maximum speed alarm
• Depth sounder in feet and meters
• Automatic and manual calibration
• Speed indication in knots, mph or km/h.
• Daily and total distance in miles, nautical miles and km

CONTENTS OF BOX :

• 1 - Duet Clipper display
• 1 - Loch sensor-speedo with 7 m cable
• 1 - Passage-41 mm hull
• 1 - Protective cover
• 1 - Depth sensor ⌀ 19 mm with 7 m cable
• 1 - PDF documentation
