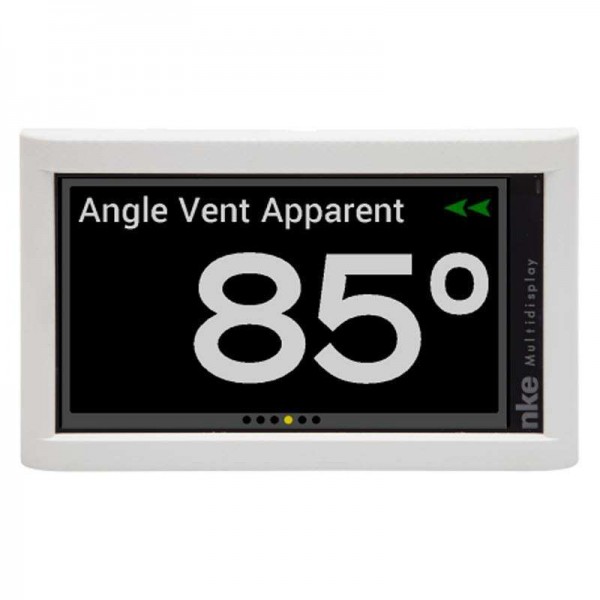

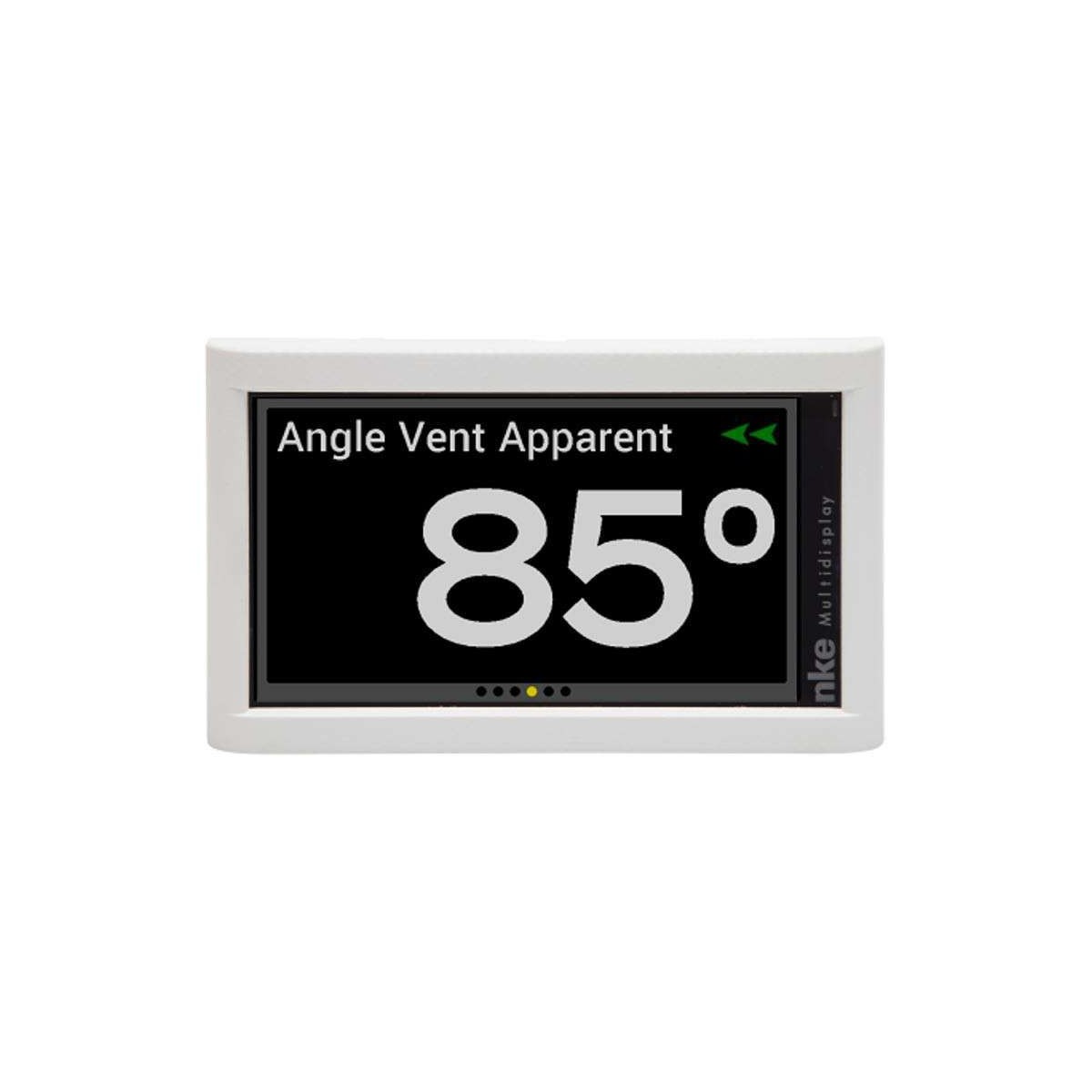

Display Multidisplay II

Ref. PF000394

The Mutlidisplay II from NKE gives you access to all your plant data in numerical and graphic form.

Read more Features
€1,299.92 Tax included
Public price
€1,460.00
-10%
Price tax excl. / DOM TOM €1,299.92
COLOR
Quantity
1299 loyalty points.
PF000394

Data sheet

Display
Multifunction
Description

NKE - MULTIDISPLAY II DISPLAY - ALL-IN-ONE PERFORMANCE

The NKE Multidisplay II significantly improves sailing comfort thanks to simplified installation and excellent readability at sea. Its faster initialization on the Topline bus allows easy configuration of the display address using a simple magnet positioned during installation.

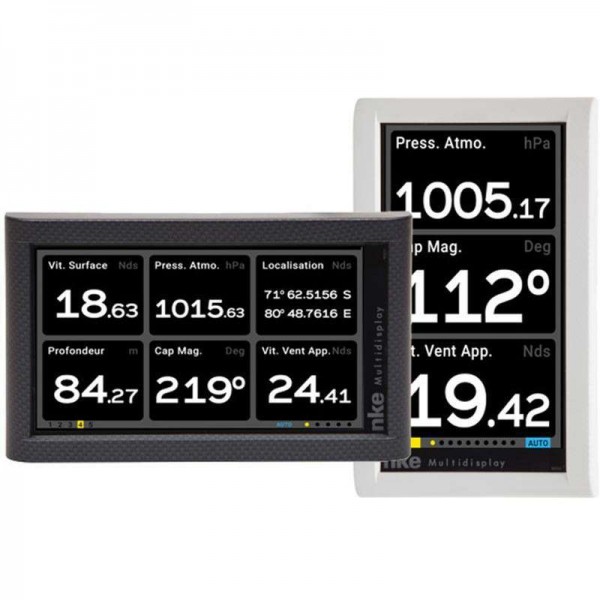

From startup, the device automatically detects its orientation, in portrait or landscape mode, for immediate use. Its brighter and higher contrast screen ensures clear reading of navigation data, even in full sunlight or demanding conditions. The intuitive interface of this display allows you to configure the display up to selecting the most suitable theme, calibrating sensors, managing alarms, adjusting or controlling an NKE autopilot if present.



PILOT AND NAVIGATION DATA

The Multidisplay II is controlled by two types of optional wired external keypads: PAD Pilot or PAD Display. They share display configuration, sensor calibration and alarm management functions.

Pilot information is also provided with direct controls and 3 available pages (course deviation, analog or digital page).

Navigation data make this display a high-performance device thanks to its 10 programmable pages with 1 to 6 data fields. In addition, NKE BUS data and NMEA values display enhance the technical capabilities of this device.

Finally, this display includes "performance" functions with a start page providing access to the following information:

  • Regatta stopwatch
  • Start line
  • True wind tables management


"PERFORMANCE" FUNCTIONS

A start page provides access to a regatta stopwatch.

The start line allows marking buoys, displaying distance, length and time to the line. It continuously provides line advantage in degrees and meters.

Finally, true wind tables management allows correction of wind measurements affected by sails.

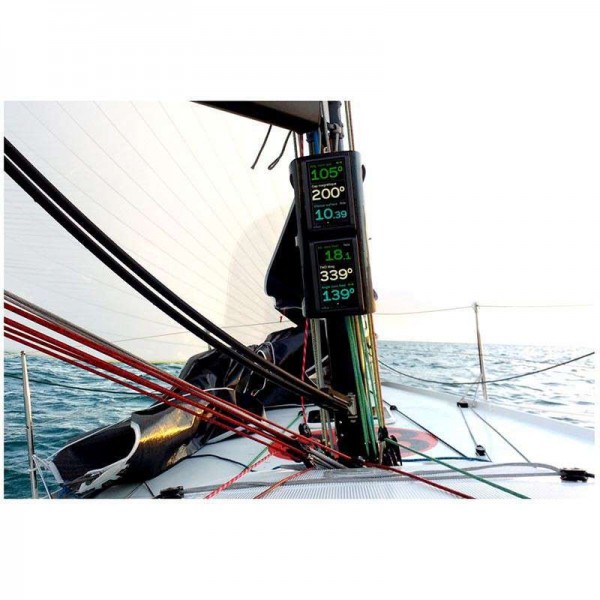

It can be installed in landscape or portrait mode, in the cockpit or at the mast base.




NEW REGATTA PAGE

This customizable page provides strategic information.

  • True wind indicator : precise reading of averaged and real wind angle
  • Heading GPS, compass, waypoint
  • Drift measurement
  • Current : direction and strength
  • Waypoint : heading and distance to the next mark
  • 4 selectable data


OTHER IMPROVEMENTS

Additional updates have been designed on this device to make it even more efficient.

  • Display standby mode
  • Alternating display of 2 pieces of information on the same line
  • Backlight : dual adjustment for day and night themes
  • Magnetic COG display
  • Display of dynamic channels received from Adrena and Expedition Software


KEY FEATURES

  • Weight : 850g (without cable)
  • Waterproof rating : IP68
  • Power supply : 8 to 32 V DC
  • Dimensions : 196 x 122 x 28 mm
  • Storage temperature : -20°C to +60°C
  • Operating temperature : -10°C to +50°C
  • Consumption : 150 mA (day backlight level 10)

DISPLAY CONTENT

  • 1 - NKE Multidisplay II Display White
  • 1 - Power/data cable 6m
  • 1 - Protective cover
  • 1 - M14 tightening nut
  • 1 - PDF documentation


Download

Manuel Multidisplay NKE

Installation and operating instructions for Multidisplay I & II NKE (FR-EN)

Download (2.16M)
