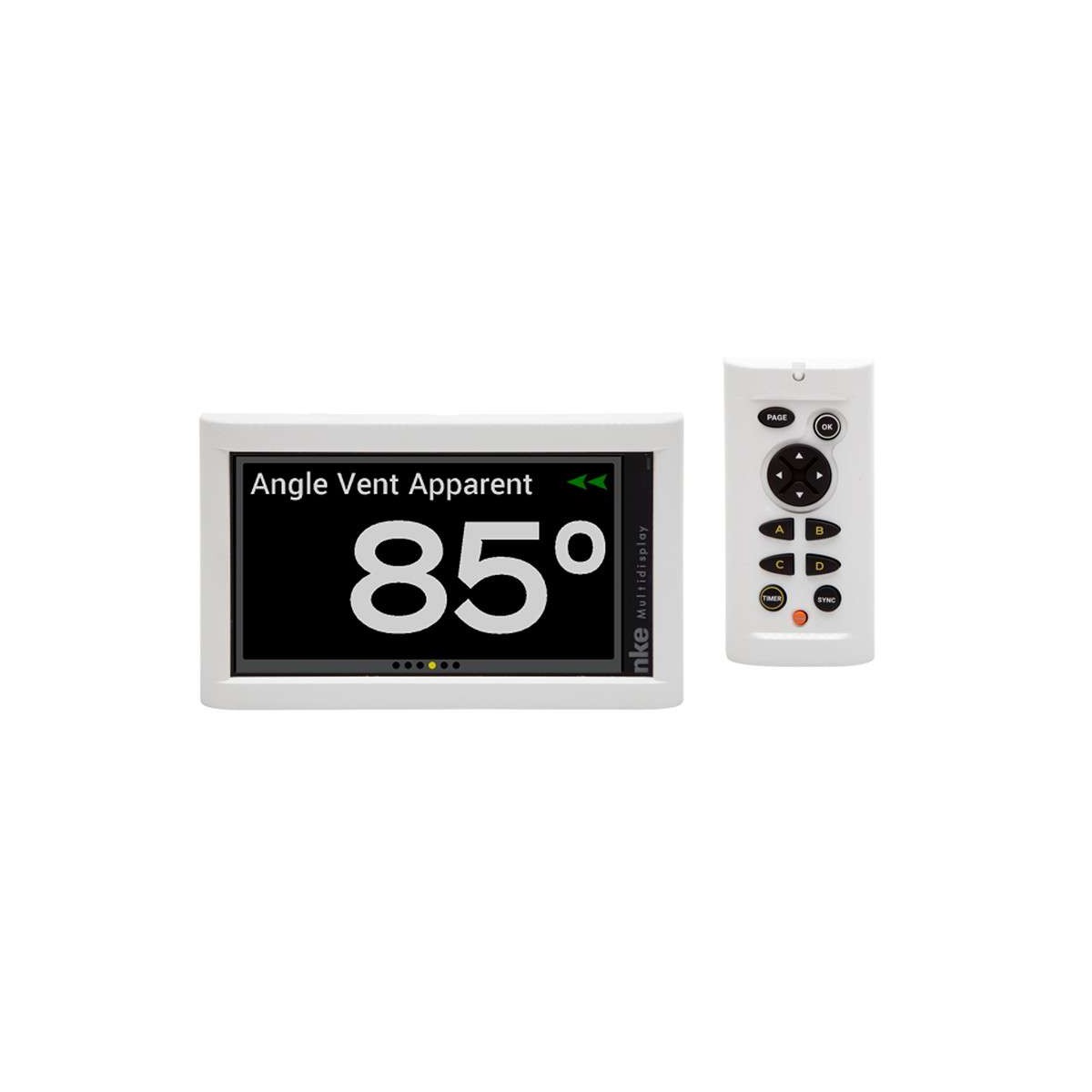

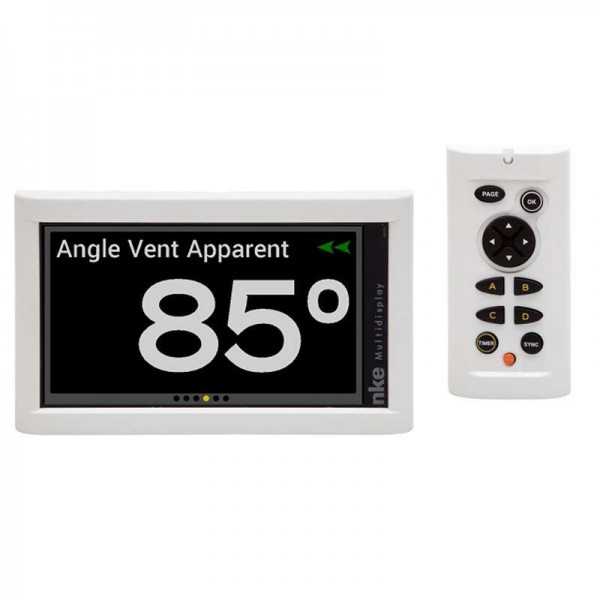

Multidisplay II Display Pack + Pad

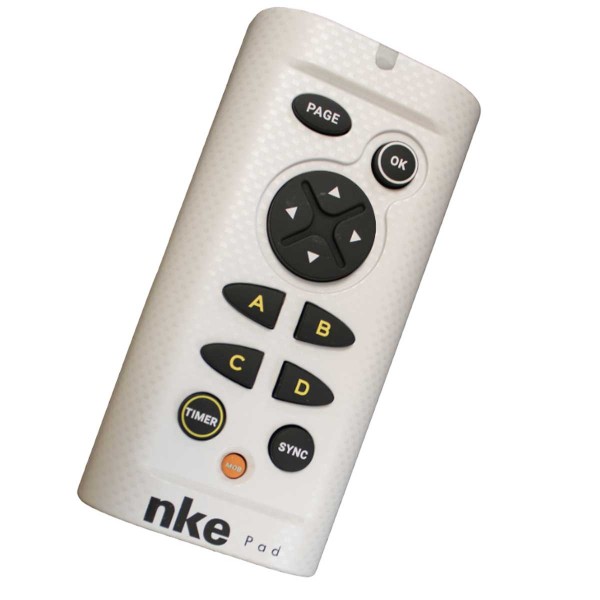

THE PAD: MULTIDISPLAY REMOTE CONTROL

This wired remote control features A-B-C-D buttons to directly access pre-programmed configurations.

For example, after a start in configuration A, a simple press on the "B" button allows you to switch all Multidisplays to the channels useful for upwind sailing. The "C" button will be for downwind sailing and so on.

The PAD also allows access to different menus.

PILOT AND NAVIGATION DATA

The Multidisplay II is controlled by two types of external wired keypads: PAD Pilot or PAD Display. They share display configuration, sensor calibration, and alarm management functions.

Pilot data is also provided with direct controls and 3 available pages (course deviation, analog or digital page).

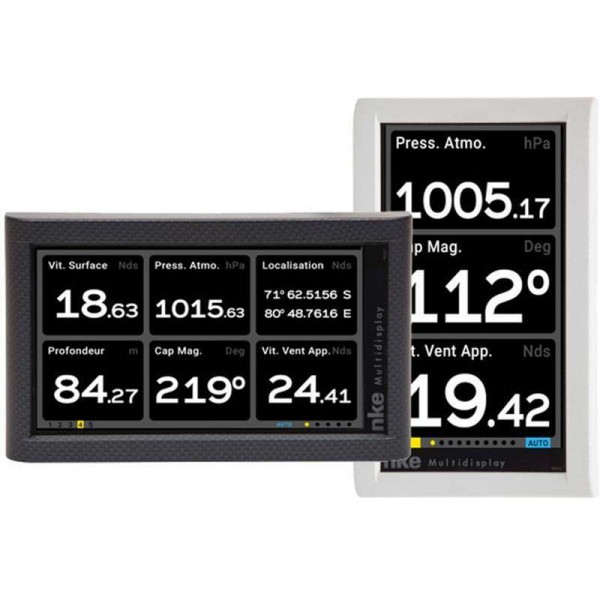

Navigation data makes this display a high-performance device thanks to its 10 programmable pages with 1 to 6 data fields. In addition, display of NKE BUS data and NMEA values enhances the technical capabilities of this device.

Finally, this display has "performance" functions with a start page providing access to the following information:

• Race timer
• The start line
• Real wind tables management

"PERFORMANCE" FUNCTIONS

A start page provides access to a race timer.

The start line allows mark positioning, display of distance, length, and time to the line. It continuously provides the line advantage in degrees and meters.

Finally, real wind tables management allows you to correct wind measurements affected by sails.

NEW RACE PAGE

This configurable page provides strategic information.

• True wind indicator : accurate reading of averaged/real wind angle
• Heading GPS, compass, waypoint
• Leeway measurement
• Current : direction and strength
• Waypoint : heading and distance to the next mark
• 4 selectable data fields

OTHER IMPROVEMENTS

Additional updates have been designed for this device to make it even more efficient.

• Display standby mode
• Alternate display of 2 pieces of information on the same line
• Backlighting: dual adjustment for day and night themes
• Display of magnetic COG
• Display of dynamic channels received from Adrena and Expedition Software

KEY FEATURES

• Waterproof rating: IP68
• Weight: 850g (without cable)
• Power supply: 8 to 32 V DC
• Dimensions: 196 x 122 x 28 mm
• Storage temperature: -20°C to +60°C
• Operating temperature: -10°C to +50°C
• Consumption: 150 mA (day backlight level 10)

DISPLAY/PAD PACK CONTENT

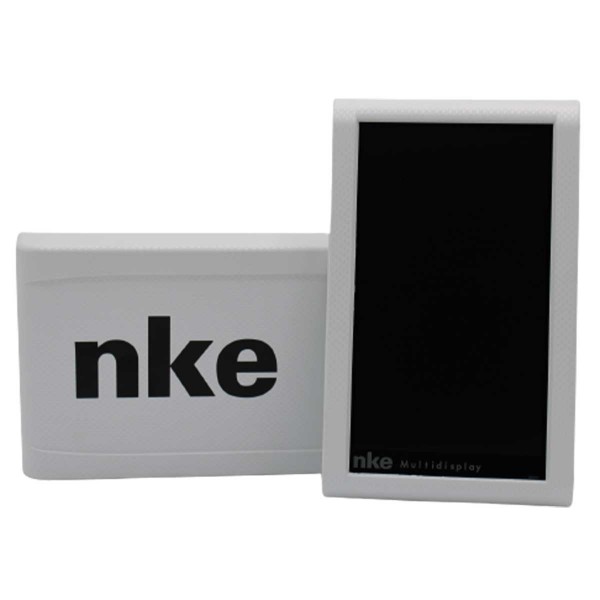

• 1 - NKE Multidisplay II White Display
• 1 - White PAD Display Control
• 1 - 6m power/data cable

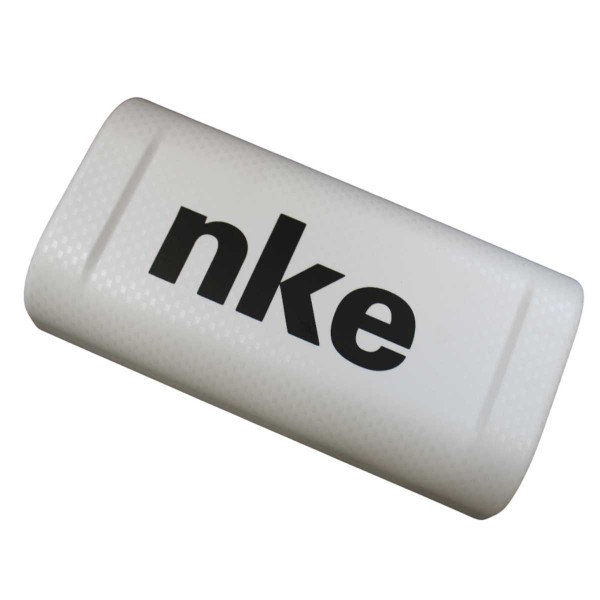

• 1 - Protective cover
• 1 - M14 tightening nut
• 1 - User manual
