-€45.10

500A battery manager

Name: 500A battery manager
Brand: NKE

The 500A battery controller from NKE can manage two battery banks. It lets you know the status of your batteries at all times, so you can optimize your consumption and charging times.

NKE - 500A MANAGER - CAPABLE OF MANAGING A FLEET OF BATTERIES

With this instrument, you'll know the remaining capacity of your batteries. Connected to your TOPLINE Bus, indications are given in amperes, hours or percentages in analog form , and can be datalogged in graph form for optimum visibility !

You can also trigger and set alarms from a multifunction NKE.

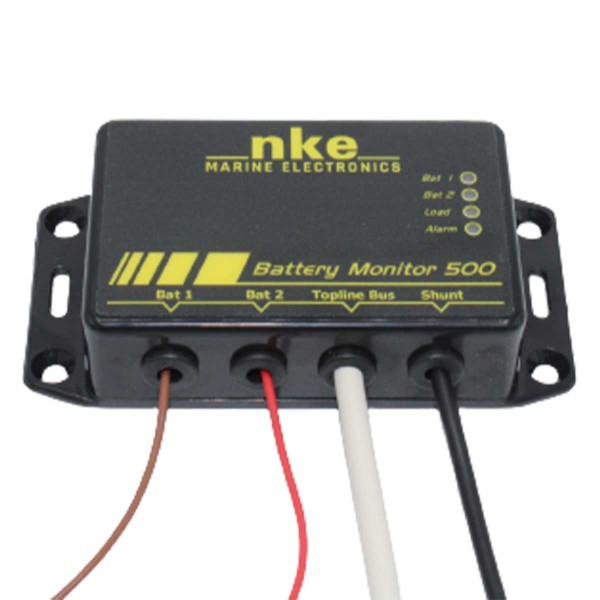

BATTERY MONITOR 500

This battery manager lets you measure the voltage of your engine and service battery terminals . Accurate and reliable, it can also measure charging or discharging current on the service battery bank in real time. Up to 500 A.

This sensor has been designed to replace 100A and 200A battery managers.

For the SERVITUDE battery :

Voltage
Instantaneous charging and discharging current
Remaining capacity in A/h
Remaining capacity in %

For the MOTOR battery :

Voltage

MAIN POINTS

DC supply: 8V - 32V
Battery voltage measurement range: 10V to 30V
Voltage measurement accuracy: ±0.06volt
NMEA 183 output
12Volt operating consumption
Consumption Topline bus off

BATTERY MONITOR CONTENTS

1 - MONITOR 500A battery manager
1 - Remote shunt 500A
1 - Bus power cable (Conductor + ground wire)
1 - Shunt measurement cable (1m)
1 - Brown voltage measurement cable (battery 1)
1 - Red voltage measurement cable (battery 2)
3 - Control LEDs (on/off, load and critical threshold)

Download

Doc NKE 500A battery controller

Installation and operating instructions for 500A battery manager NKE (FR-EN)

Download (1.19M)
