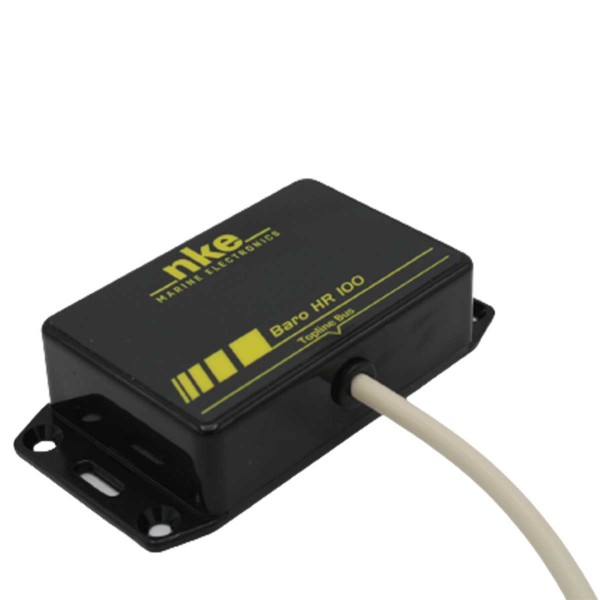

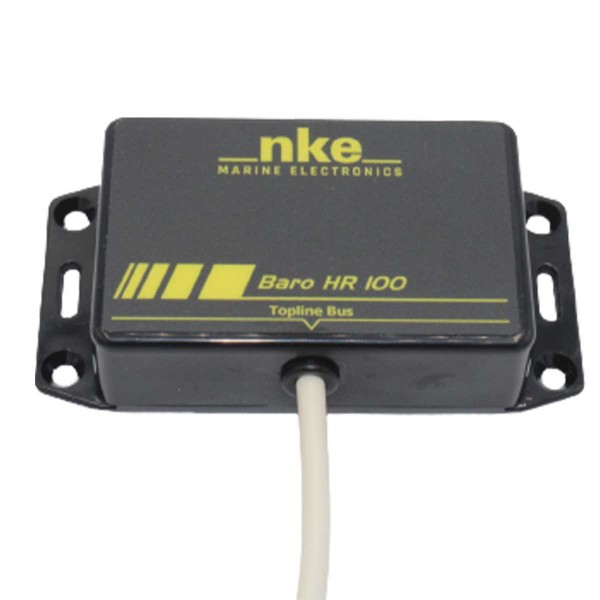

HR 100 barometer

HR 100 BAROMETER

Thanks to its NMEA output, the HR 100 Barometer transmits atmospheric pressure and air temperature .

You can also use the NMEA 0183 output and the bus link. However, the data transmitted over the NMEA link takes into account the settings in the Topline sub-channels (Offset and filtering).

Atmospheric pressure is transmitted in the XDR and MMB frames , while air temperature is transmitted in the XDR and MTA frames. Here is a list of possible NMEA transmissions for this instrument:

• $IIXDR,P,1.02481,B,Barometer*0D
• $IIXDR,C,19.52,C,TempAir*3D
• $IIMTA,19.52,C*1E
• $IIMMB,30.3446,I,1.02481,B*65

MAIN POINTS

• Power supply: 10 to 16Vdc
• Consumption: 25mA
• Tightness: IP54
• Operating temperature : -10°C to +50°C
• Storage temperature: -20°C to +60°C

CONTENTS OF HR 100 BAROMETER

• 1 - HR 100 barometer
• 1 - Bus cable 6m
• 1 - Connection box
• 1 - PDF documentation
