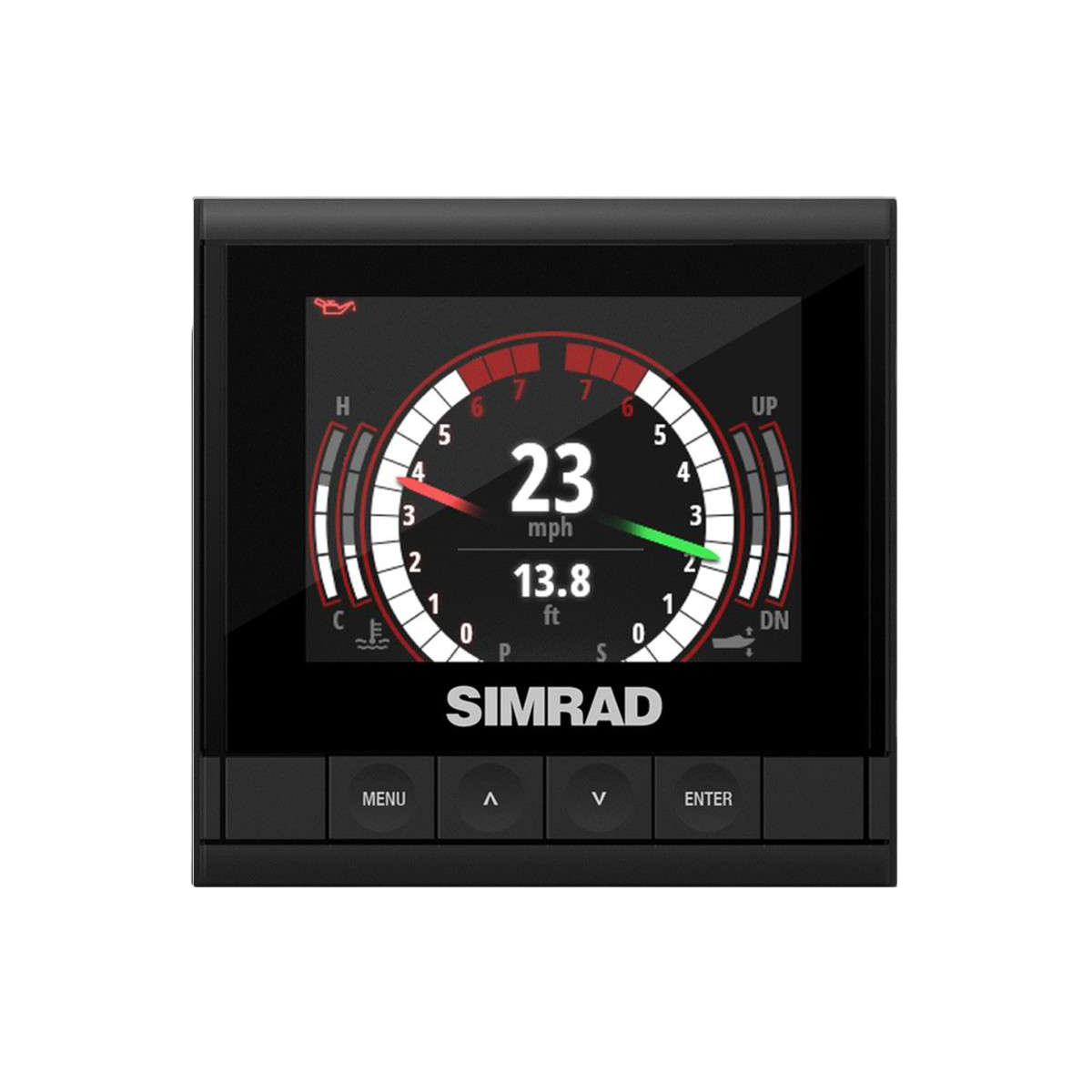

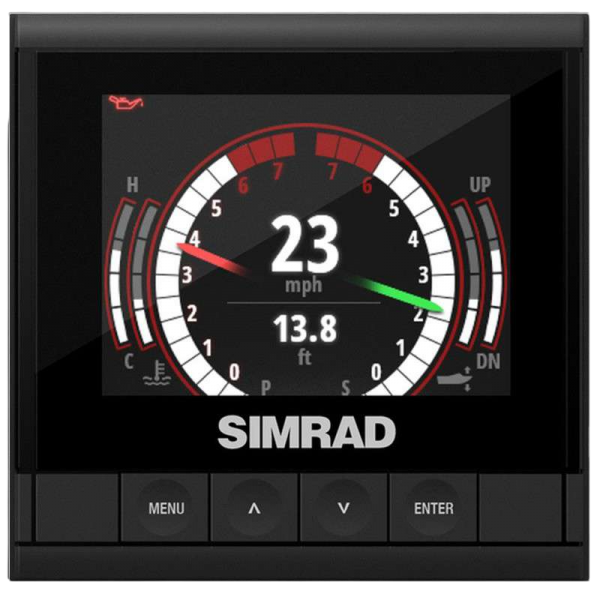

IS35 instrument

Bright, clear color display

The IS35 features a 3.5" LCD screen with clear 320 x 240 pixel resolution and LED backlighting. The white "day" mode offers high brightness and contrast for use in full sunlight, while the red "night" mode provides more subtle illumination suitable for low light conditions.

Easy to use

Data is displayed on the IS35 as a series of pages, with predefined pages for engine control, fuel economy, cruising, steering and depth history. An easy-to-use four-button interface lets you switch between pages or quickly change brightness.

Easy to configure

When connected to the NMEA 2000 network on board your boat, the IS35 automatically detects other connected equipment, including engines; sensors for fuel flow, pressure, engine and water temperature; GPS receivers; depth sensors; etc.

Easy to install

Designed to fit standard 85 mm circular cut-outs. Bracket-mounted, it has a low 8mm profile, matching the elegant glass bridge shape of Simrad NSS multifunction displays. Electrical installation is simple, with both power and data on a single NMEA 2000 cable.

KEY FEATURES

• Waterproof IPX7
• 12 Vdc power supply
• Power consumption 130mA
• Micro-C NMEA 2000 connectors

BOX CONTENTS :

• 1 - IS35 display
• 1 - Protective cover
