- DCPOWER+ 12V/36V DC/DC Converter/Charger, -, 15A

CRISTEC - DC/DC Converter/Charger - DCPOWER+ 12V/36V - 15A

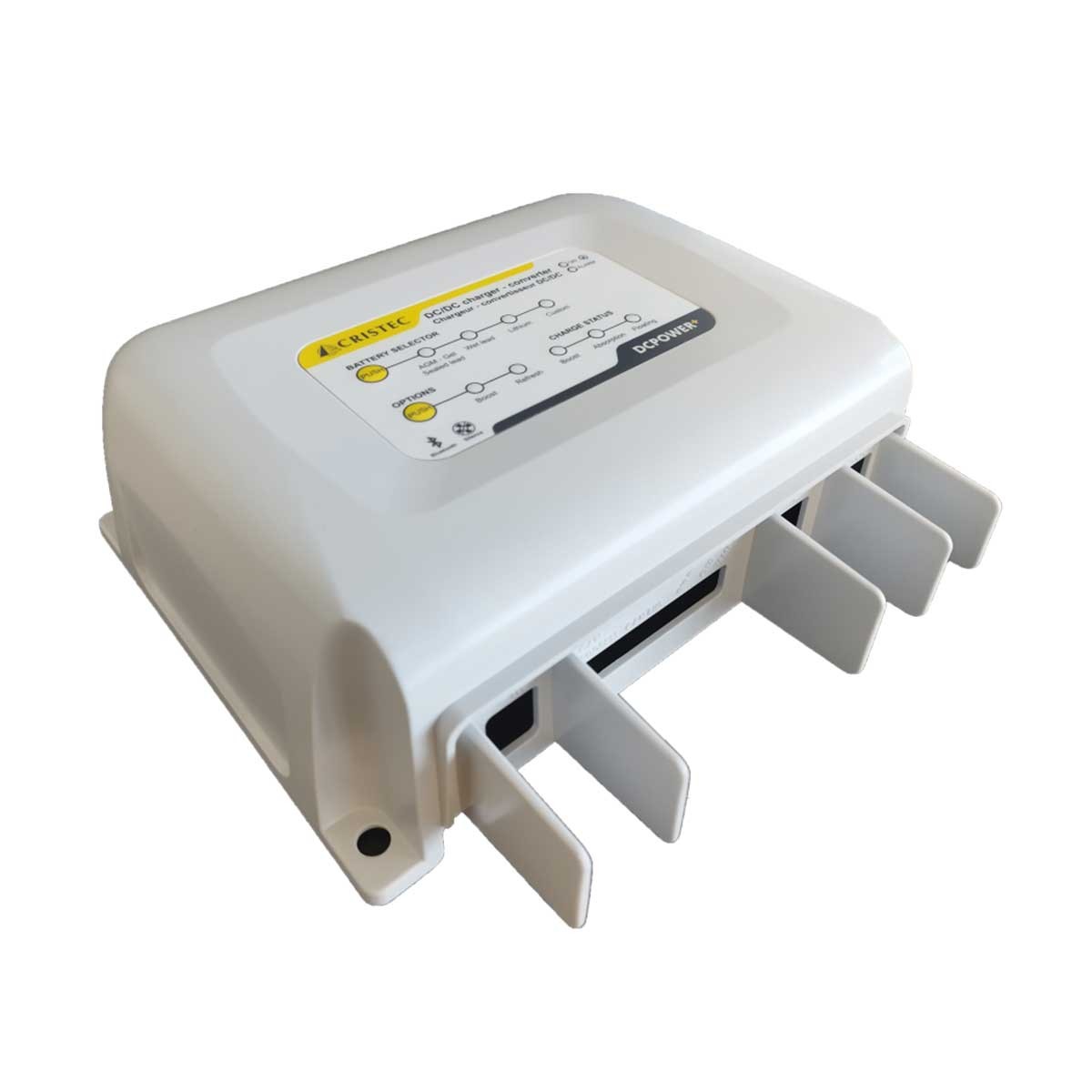

The CRISTEC DCPOWER+ 12V/36V - 15A is a DC/DC converter-charger designed to power or recharge a 36 V battery bank from a 12 V DC power source. It can function as a simple converter, a smart battery charger, a booster, or a stabilized power supply, depending on the system configuration.

It is particularly well-suited for boats with a 12 V onboard electrical system where equipment or a battery bank operates at 36 V. It also allows for the recharging of LiFePO4 batteries from a lead-acid battery connected to an alternator.

Smart and customizable charging.

The DCPOWER+ offers a charge curve that can be configured via the settings button, the Bluetooth interface, or the CAN bus-. It is compatible with various types of batteries, including:

• Sealed lead-acid.
• Gel.
• AGM.
• --calcium lead-acid.
• LiFePO4.
• Other technologies available upon specific request.

The charging profile can operate in up to 5 stages:

• Boost: rapid battery charging.
• Absorption: continued charging up to 100%.
• Floating: charge maintenance.
• Refresh: automatic phase designed to limit sulfation and revitalize the batteries.
• Reboost: a new Boost phase if the battery’s condition or DC loads require it.

Silent operation.

Cooling is provided by natural convection, without a fan, allowing for completely silent operation. The noise level specified by CRISTEC is 0 dB. This design makes it possible to install the unit near living areas on board.

Bluetooth and remote control.

The charger features Bluetooth Low Energy (BLE) as well as CAN-Bus communication. The charging curve can thus be configured locally or remotely.

Designed for marine installations.

The DCPOWER+ operates at its rated load up to +60 °C. At-temperatures above +65 °C, the current is limited to protect the device. The circuit board is also treated with a water-repellent varnish suitable for marine environments.

The models are protected against:

• Polarity reversal.
• Short-circuits.
• Abnormal overheating.

They are also ISO 8846 / SAE J1171 certified for protection against ignition of flammable gases, which allows them to be installed in the engine room.

Technical specifications of the DCPOWER+ 12--, 36V/15A.

• Type: DC/DC converter/-, DC to DC.
• Model: 12-36V/15A.
• Recommended lead-acid battery capacity: 100 to 200 Ah.
• Input voltage: 10 to 64 V DC.
• Maximum input current: 45 A.
• Rated power: 650 W.
• Number of outputs: 1.
• Rated output current: 15 A.
• Boost voltage, factory setting: 43.2 V DC.
• Floating voltage, factory setting: 41.4 V DC.
• Regulation tolerance:
• Ripple and peak-to-peak noise:
• Input fuse: 3 × 20 A / 80 V.
• Automotive output fuse: 2 × 20 A / 80 V.

Environment and Construction.

• Cooling: natural convection.
• Noise level: 0 dB.
• Nominal operating temperature: from -20 °C to +60 °C.
• Current limiting: at-above +65 °C.
• Storage temperature: fr -20 °C to +70 °C.
• Relative humidity: up to 70%, and up to 95% non-condensing.
• Bluetooth: BLE, power +9 dBm, frequency 2412 to 2484 MHz.
• Material: Anodized aluminum chassis and thermoplastic housing.
• Dimensions: 236 × 180 × 96 mm.
• Weight: 2 kg.
• Mounting hole spacing: 219 × 155 mm.
• Wall mounting: 4 M5 round-head screws.
• Protection rating: IP22.
• Circuit board protection: waterproof varnish coating.

Communication and options.

• CAN communication-Bus / Bluetooth.
• STP temperature probe-UNI-2.8, length 2.8 m.
• STP temperature probe-, UNI-2.8, length 2.8 m.
• OTD ("Over Temperature Device")
• Alternator sensor STP-ALT-2.4.
• Can be installed in parallel.

Up to 4 units can be connected in parallel via the CAN-Bus, with one unit configured as the master and the others as slaves. Several parameters can then be adjusted, such as output power limiting, the input voltage start threshold, or the maximum temperature of the alternator sensor.
