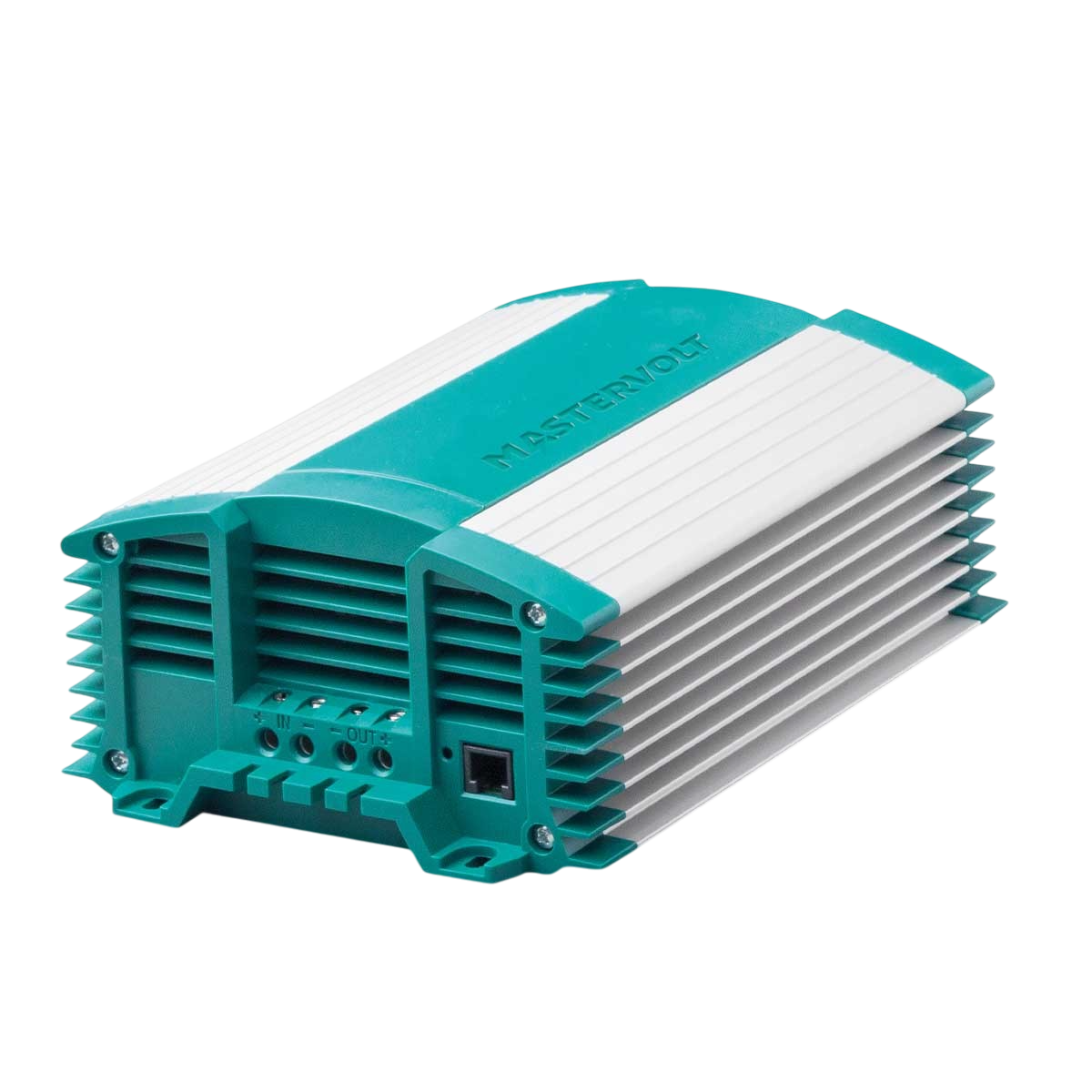

Charger / Converter Magic 24V/12V - 20A
Ref.
81300100
Magic DC-DC converter models can adjust the voltage up or down to guarantee perfect voltage stabilization , even when it fluctuates due to heavy loads . Galvanic isolation between input and output prevents interruptions, especially to transmission equipment.
Perfectly suited to professional use , our 3-stage battery converter and charger ensures reliable performance . With its parallel connection capability, it offers exceptional charging capacities. Its output voltage is adjustable and programmable , ensuring optimum flexibility . Take advantage of voltage stabilization to extend the life of your equipment. What's more, it incorporates an inverter function for precise , secure management of your electrical system.
Read more Features
€386.90
Tax included
Public price
€432.00
Price tax excl. / DOM TOM
€322.42
81300100
Data sheet
- Power
- 300 W
- Amperage
- 20A
- Input voltage
- 24V
- Output voltage
- 13,6V
MASTERVOLT - Magic battery charger / converter 24V/12V - 20A
Magic battery converters are designed for heavy-duty professional use in semi-pro and sports environments. It works very well in the toughest conditions, even if it has to run non-stop. The device is reliable and field-proven. With an MTBF (Mean Time Between Failures) of 180,000 hours at full load and running 24 hours a day , the Magic product is ideal for the toughest work and any power requirement.
It can be programmed remotely from a laptop or PC using the easy-to-install communication port with PC-Link or MasterAdjust software.
Parallel configuration of several devices will provide over 100 amps . The Magic model can also act as a 3-step charger for all types of battery (Gel, AGM, wet or Lithium Ion).
It also features solid connections: a galvanized brass terminal block equipped with a screw terminal or a chrome-plated clip for DC input/output connections.
MAGIC 24V/12V - 20A CHARGER/CONVERTER SPECIFICATIONS
| Output voltage | 10-15V |
| Nominal output voltage (adjustable with MasterAdjust software) | 13,6V |
| Variable output voltage (adjustable with MasterAdjust software) | 4-13V |
| Maximum output power | 300 W |
| Nominal output power | 300 W |
| Maximum output current | 20A |
| Output load current (3-step mode) | 16A |
| Nominal input voltage | 24V |
| Input voltage range | 19-32V |
| Input voltage range (3-step load mode) | 24-32V |
| Lowest input point (adjustable with Master Adjust software) | 20V |
| Lowest input point delay (adjustable with MasterAdjust software) | 30 sec |
| Galvanic isolation | yes |
| Voltage limited | yes |
| Parallel operation | yes |
| Battery types | wet, Gel, AGM, spiral, Lithium Ion, traction, user-defined |
| 3-step charging option | Yes (DIP switch settings) |
| DC current consumption | |
| Connections | screw terminals, max. cable cross-section 16mm² / AWG5 |
| Cooling | maintenance-free vario fans |
| Protection class | IP21 |
| Protections | overload & overtemperature |
| MasterBus compatible | Yes, via MasterBus serial interface |
