Data sheet

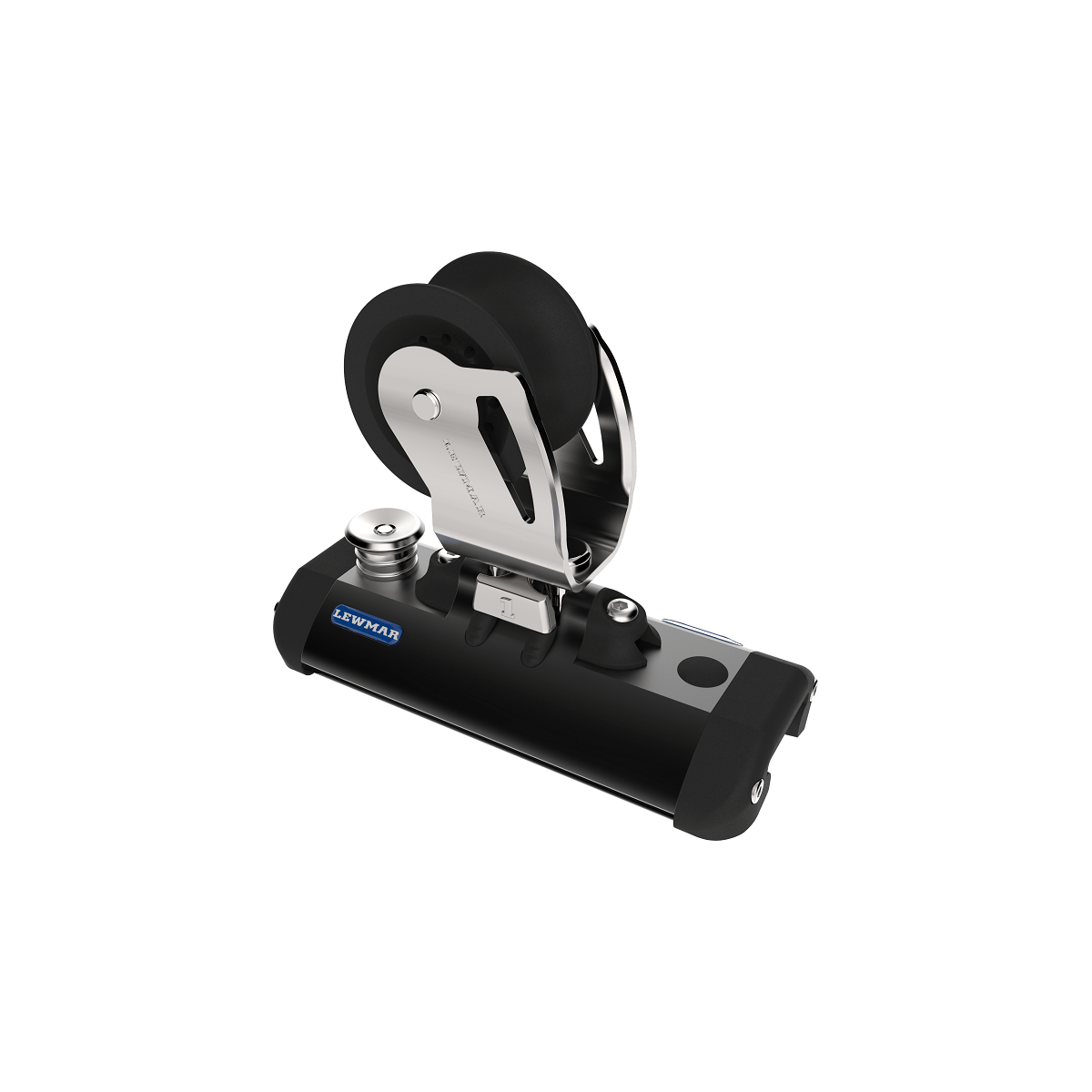

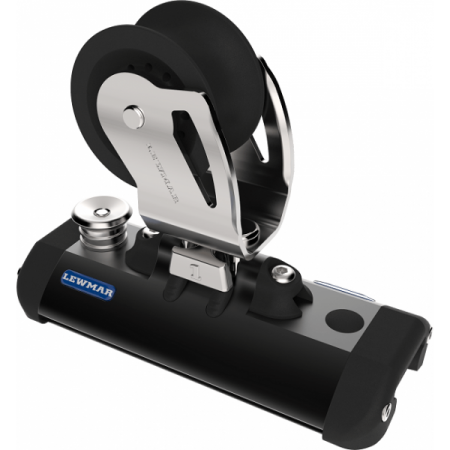

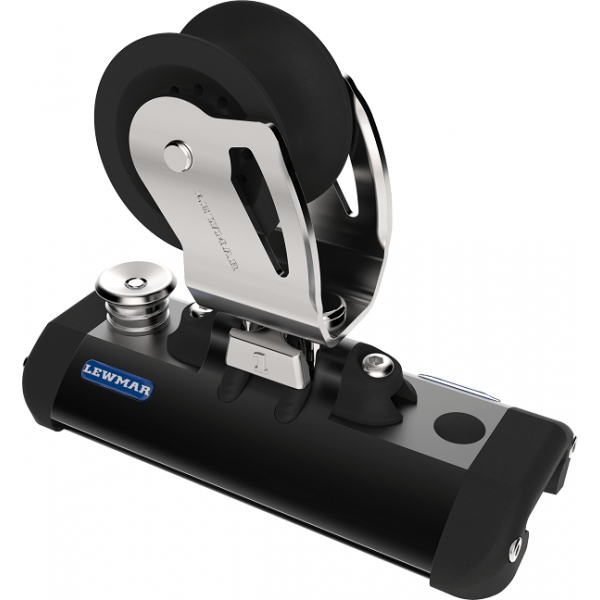

HTX sliding genoa cart with piston - T1 stbd
Working load : 1 100 Kg
Weight : 630 g
Length 160 mm
71 mm wide
Ideal for sailboats up to 15 m (49 ft)Minimalist design, with fewer parts
One-piece aluminum body and sleekly designed composite stops
Multiple configurations available, including single or double control sheave, ringot and jam cleat
Sliding genoa carriage compatible with all-rounders and pistons
Three ball bearing races: the first two allow rapid movement of the cart under vertical load, while the third, a unique feature Lewmar, ensures smooth operation of the cart in bending
Larger-diameter ball bearings mean greater surface exposure and overall efficiency
Ball bearings circulate through an open structure, allowing the cart to be cleaned once installed on the bridge
New pin mechanism allows smooth ball circulation
The toggle can accept a shackle or strap-on end, eliminating the need for a ring nut above the adjustment sheave
