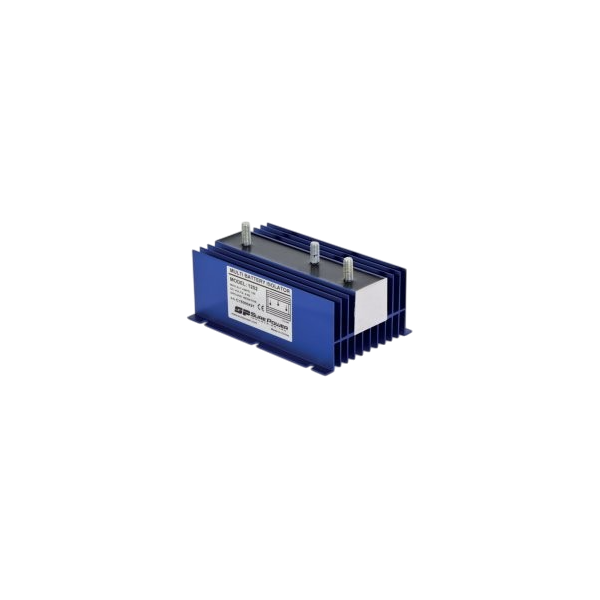

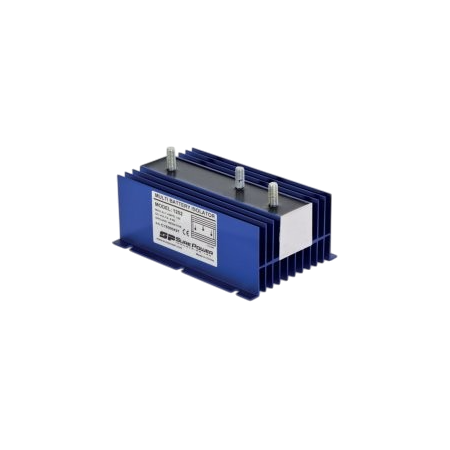

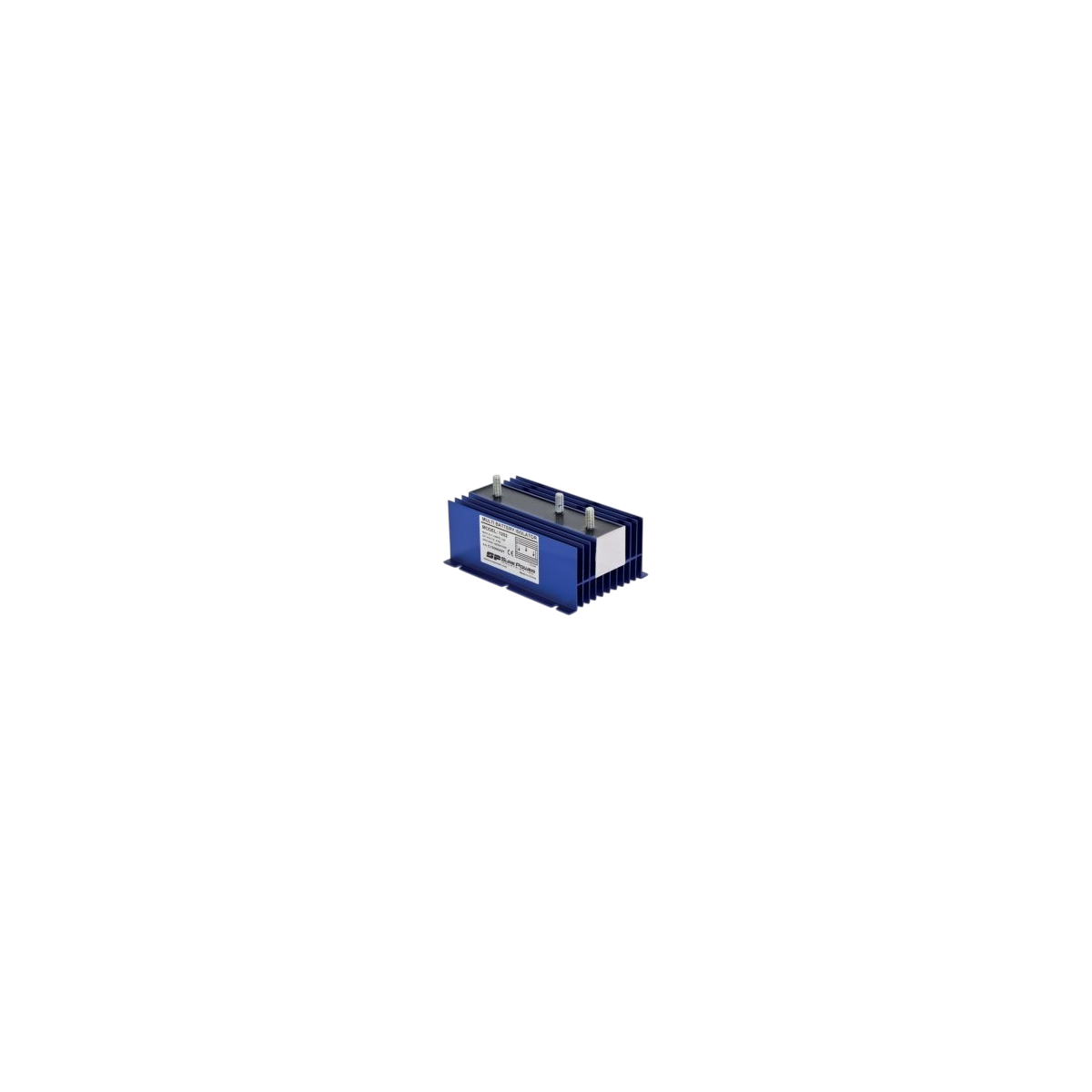

Diode load distributor 1E/2S 120A

Ref. SR122
€172.90 Tax included
Public price
€194.10
-10%
Price tax excl. / DOM TOM €144.08
Quantity
IN SUPPLIER STOCK
Delivery times and costs
By buying this product you can collect up to 172 loyalty points. Your cart will total 172 points that can be converted into a voucher of €1.72.
SR122

Data sheet

Range / Model
Diode distributor
Number of inputs
1
Number of outputs
2
Description

Isolates battery banks from each other.
Automatically directs the charging current to the battery with the lowest charge. For simultaneous charging of 2 to 4 battery banks from 1 or 2 12 or 24V alternators.

For non-adjustable alternators:
The reference terminal compensates for the voltage drop (0.6V min.) due to the distributor.

Technical specifications:

  • Reference: SR122
  • Max. load current per input: 120A
  • No. of inputs: 1
  • No. of outputs : 2
  • Ref. terminal : 0
