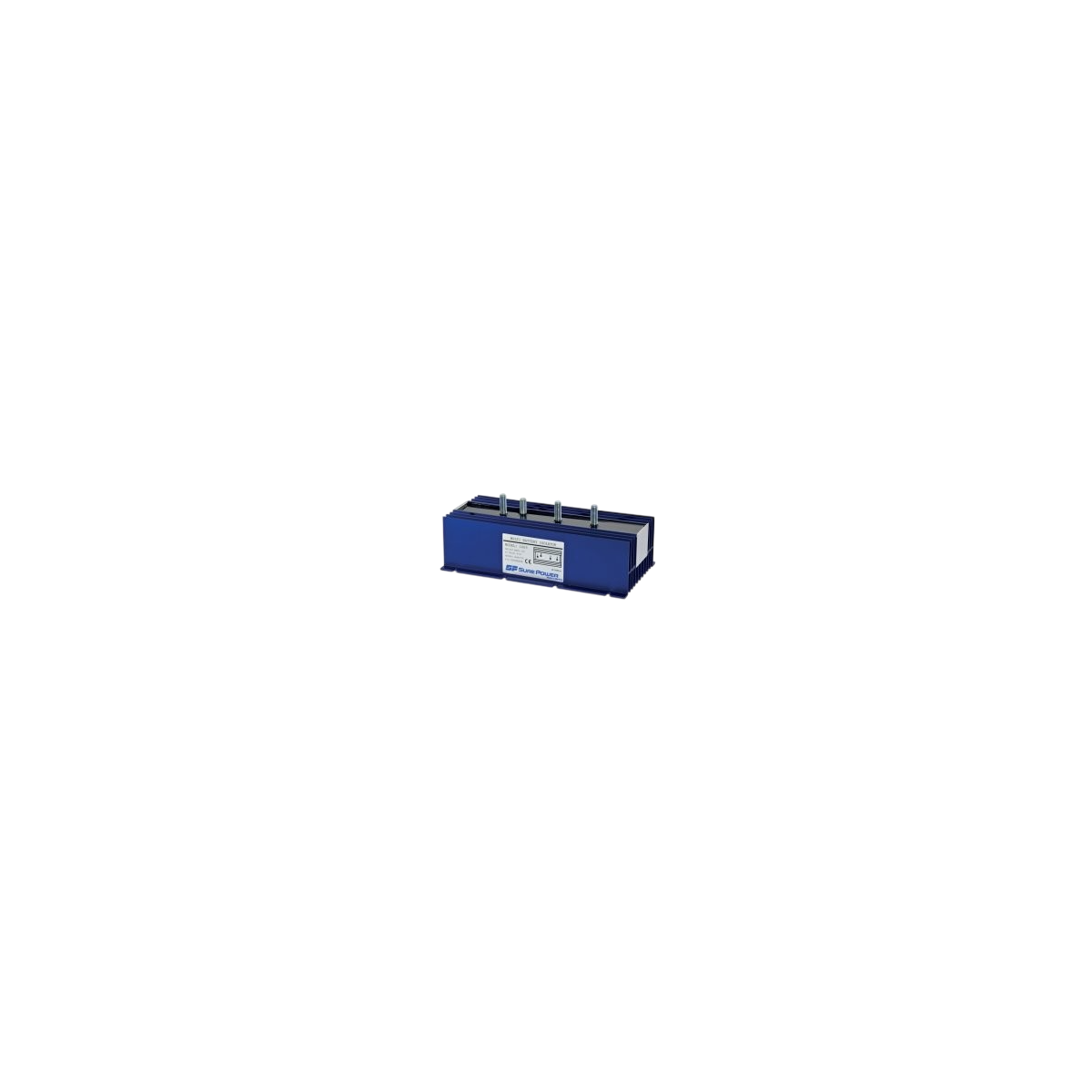

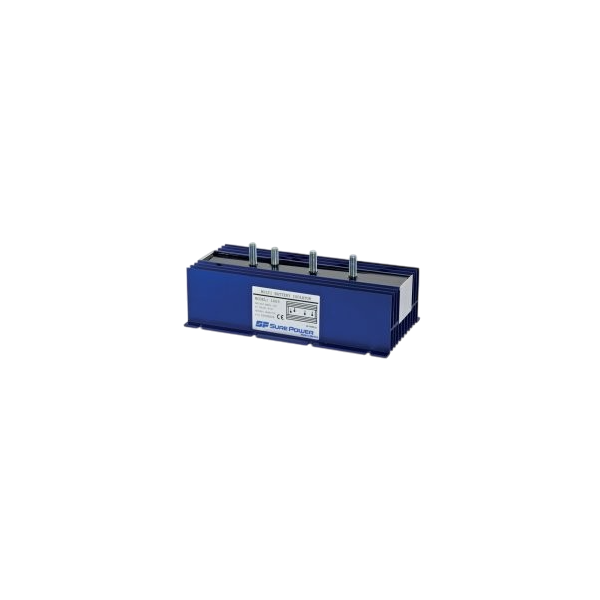

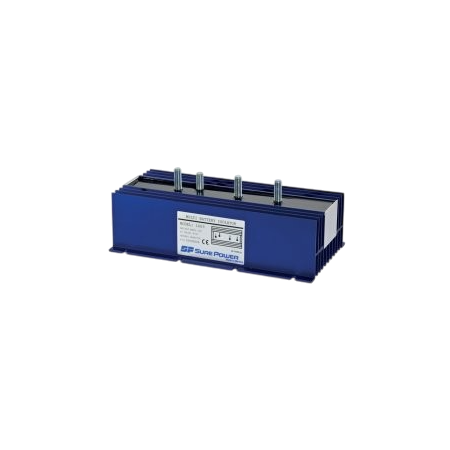

Diode load distributor 2E/3S 120A

Isolates battery banks from each other.
Automatically directs the charging current to the battery with the lowest charge. For simultaneous charging of 2 to 4 battery banks from 1 or 2 12 or 24V alternators.

For non-adjustable alternators:
The reference terminal compensates for the voltage drop (0.6V min.) due to the splitter.

Technical specifications :

• Max. load current per input: 120A
• No. of inputs: 2
• No. of outputs: 3
• Reference terminal: 0
