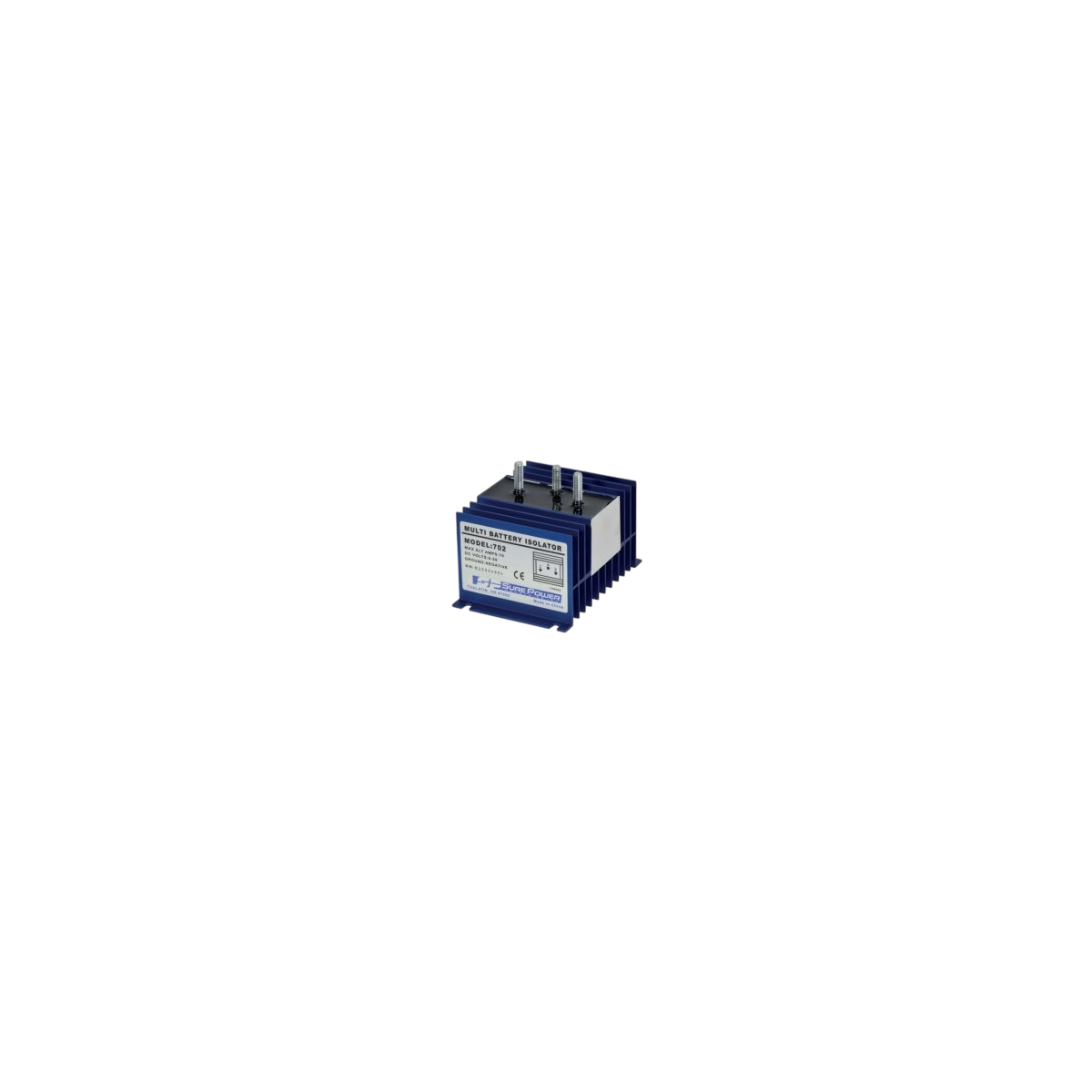

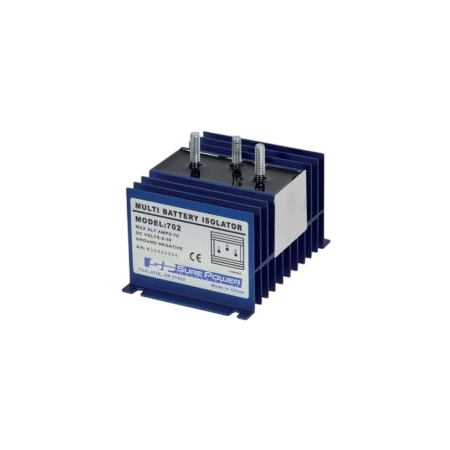

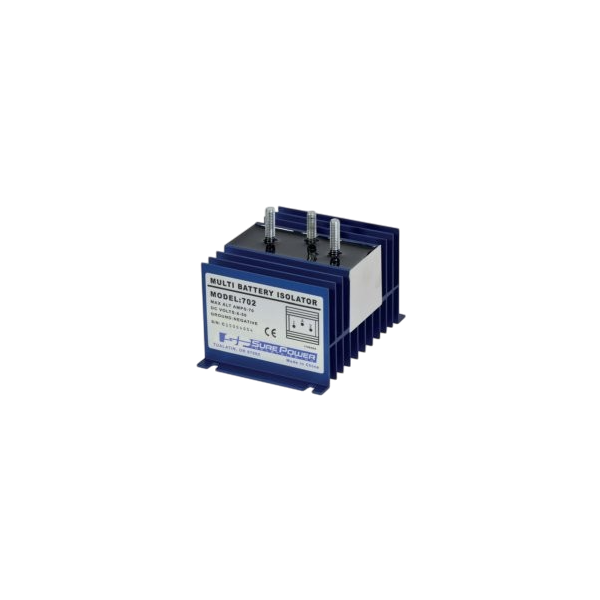

Diode load distributor 1E/2S 70A

Ref. SR702

Read more Features

€95.90 Tax included

Public price

€107.21

-10%

Price tax excl. / DOM TOM €79.92

Quantity

IN SUPPLIER STOCK

Delivery times and costs

By buying this product you can collect up to 95 loyalty points. Your cart will total 95 points that can be converted into a voucher of €0.95.

Reference SR702

Data sheet

Range / Model: Diode distributor
Number of inputs: 1
Number of outputs: 2

Description
Customer Reviews
Questions / Answers
Products also ordered

Description

Isolates battery banks from each other.
Automatically directs the charging current to the battery with the lowest charge. For simultaneous charging of 2 to 4 battery banks from 1 or 2 12 or 24V alternators.

For non-adjustable alternators:
The reference terminal compensates for the voltage drop (0.6V min.) due to the splitter.

Reference: SR702
Max. charging current per input: 70A
No. of inputs: 1
No. of outputs: 2
Reference terminal: 0
