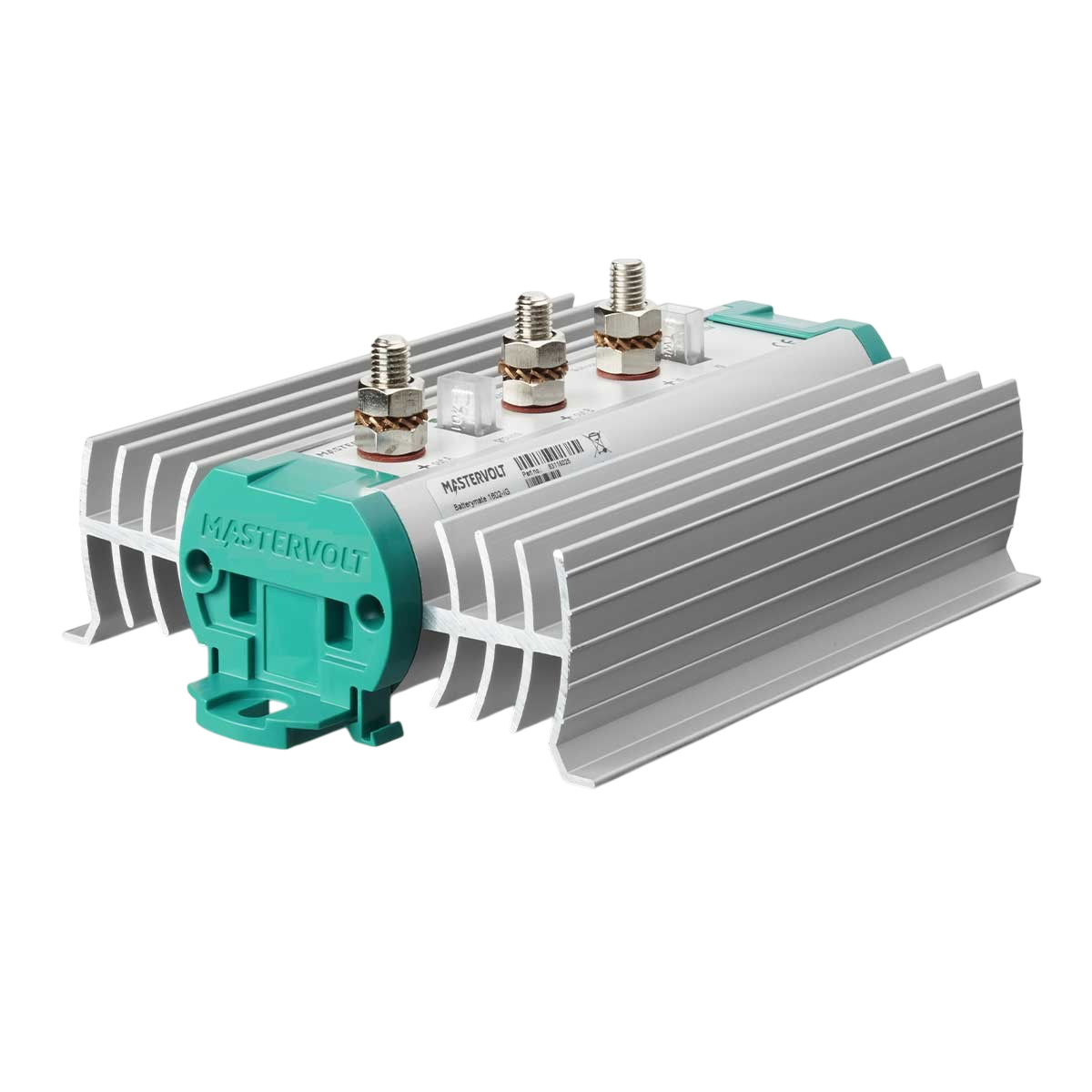

Battery Mate 1602 IG charge distributor 1 input - 2 outputs

Ref. 83116025

The Battery Mate 1602 IG charge distributor is highly suitable, offering the possibility of charging two batteries simultaneously from a single alternator/charger , while keeping them isolated from each other.

The Battery Mate's technology incorporates electronic components , notably MOSFET transistors, which compensate for voltage loss and ensure that the charge remains constant at an appropriate level, even in the presence of several sets of batteries .

Read more Features
€214.90 Tax included
Public price
€239.40
-10%
Price tax excl. / DOM TOM €179.08
Quantity
IN SUPPLIER STOCK
Delivery times and costs
By buying this product you can collect up to 214 loyalty points. Your cart will total 214 points that can be converted into a voucher of €2.14.
83116025

Data sheet

Range / Model
Electronic distributor
Number of inputs
1
Number of outputs
2
Description

MASTERVOLT - BATTERY MATE 1602 IG CHARGE DISTRIBUTOR - 1 input/2 outputs

On board a boat, it's common to have at least three different, independent batteries supplying power to 12 or 24V equipment. These batteries require separate recharging , for which reliable isolators or battery couplers are essential.

For this purpose, the Mastervolt brand has created Mate charge splitters , which enable two or three batteries to be connected and/or disconnected . They ensure fast , complete battery charging without the need to adjust your alternator . Battery Mate is compatible with all types of chargers and alternators .

Répartiteur de charge Battery Mate 1602 IG 1 entrée - 2 sorties

QUALITY MATERIALS

The Battery Mate is made of high-grade materials, which are both compact and sturdy , corrosion-resistant and equipped with an aluminum heat sink . The electronic components of the distributor are held in synthetic materials and diode splitters .

Installation of the Battery Mate 1602 load distributor is quick and easy , thanks to synthetic side plates with terminals and durable threaded connectors with nuts and lock washers.

What's more, the device's LED display lets you know when the power input has been activated .

BATTERY MATE 1602 IG CHARGE DISTRIBUTOR SPECIFICATIONS

Number of battery outputs 2
Number of alternator or battery charger inputs 1
Dimensions HxWxD 207 X 140 X 80 mm
Weight 1 kg
Warranty 2 years
Maximum charger output 120A
Maximum alternator output 160A

MAIN FEATURES :

  • LED display
  • Low voltage drop
  • Multiple battery charging
  • Quick and easy installation
  • Higher efficiency than conventional distributors

CONTENTS OF BOX :

  • 1 - Battery Mate 1602 IG charge distributor
  • 1 - PDF documentation

Download

Battery Mate distributor manual

PDF user's manual Battery Mate charge distributor Mastervolt

Download (290.65k)
