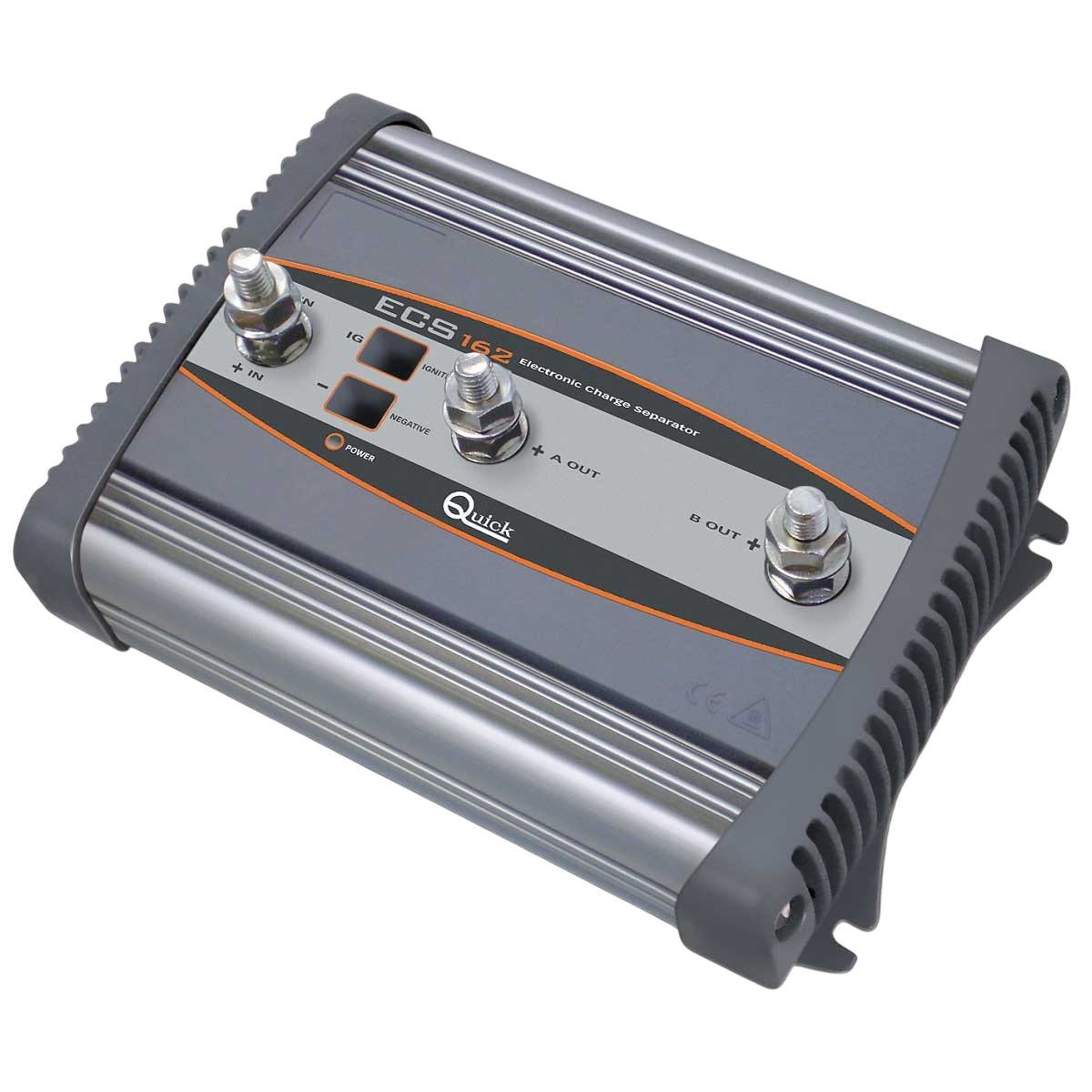

Load distributor ECS162 1E/2S/160A
Ref.
FBECS1620000D00
The ECS162 charge distributor isolates battery banks from each other. This means you can charge several batteries simultaneously without any voltage drop.
What's more, it automatically directs the charging current to the battery with the lowest charge.
Read more Features
€234.90
Tax included
Public price
€263.40
Price tax excl. / DOM TOM
€195.75
FBECS1620000D00
Data sheet
- Product type
- Load distributor
- Range / Model
- Electronic distributor
- Number of inputs
- 1
- Number of outputs
- 2
QUICK - ECS162 1-IN / 2-OUT CHARGE DISTRIBUTOR
The ECS162 electronic charge distributor makes it possible to multiply the number of battery connections, while maintaining the charge of each battery independently, as is usually the case with multiple-output battery chargers.
Charging modes are handled automatically thanks to MOFSET technology, which distributes the electrical charge according to the needs of each battery.
 |
SIMPLE INSTALLATION AND OPERATIONThe unit should be installed in a dry, well-ventilated area to facilitate cooling. It can be installed in either vertical or horizontal position. Be sure to leave at least 5 cm of space on either side of the splitter. The ECS162 splitter starts operating when connected to a load source at the input. The LED indicator lights up when the system is in operation. It also requires no special maintenance. |
QUICK ECS DISTRIBUTOR COMPARISON TABLE
|
ECS162 | |||
|---|---|---|---|
| Voltage | 12-24V DC | ||
| Load current | 160 A | 180 A | |
| Number of outputs |
2 | 3 | |
| Number of inputs | 1 | ||
| Dimensions LxWxH | 195 x 135 x 68 mm | ||
| Weight | 1.2 kg | 1.250 kg | |
MAIN POINTS :
|
BOX CONTENTS :
|
