RCE+ load distributor

Name: RCE+ load distributor
Brand: Cristec

The Cristec RCE+ electronic charge distributors enable 2 or 3 batteries to be charged simultaneously from a single 12V or 24V power source, without connecting the batteries to each other.

The Cristec RCE+ is designed for a nominal current of 80A and features 1 input and 2 ØM6 outputs.

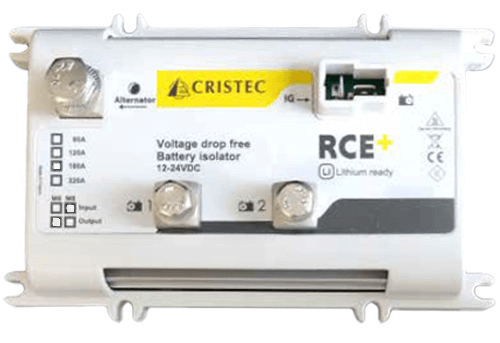

CRISTEC - RCE+ load distributor - 80A - 1 input / 2 outputs

The RCE+ load distributor is used to distribute an input electrical source (alternator, solar regulator, hydrogenerator, wind turbine, battery charger...) to two or three consumers (batteries, consumers).

If you use batteries at the output of the Cristec RCE+ charge distributor, they will be isolated from each other. The choice of splitter rating is determined by the value of the source's rated current. For example, for a 130A alternator, choose a 180A RCE+.

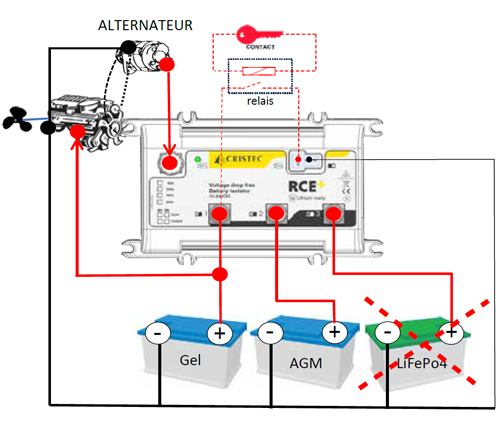

	Splitter box Cristec RCE+ Thanks to its advanced MOSFET technology, the RCE+ eliminates the voltage drop usually observed with diode splitters, enabling the nominal alternator voltage to be maintained without further adjustment. It is equipped with an IG IGNITION input, essential for certain alternators requiring an initial DC voltage to start the load. This ensures optimum compatibility while protecting batteries and alternators from voltage feedback. The splitter works with 12V and 24V voltages, and can also be used with LiFePO4 (Lithium) batteries. Please note that it is not recommended to combine Lithium batteries with other types of batteries on an RCE+ alone. All outputs are equivalent and can therefore be interchanged.

RCE+ characteristics Type: MOSFET Number of inputs: 1 with M6 terminal connection Number of outputs: 2 outputs with M6 terminal connection Current: 80A Operation : 12VDC or 24VDC Operating indicator: presence of alternator output voltage Operating temperature: -40°C /+85°C Convection: natural Dimensions: 159 x 100 x 36 mm Weight: 0.45 kg Standards: IEC60335-1
