Compass 102B/H

Name: Compass 102B/H
Brand: Silva

Ref. SV-37198-00

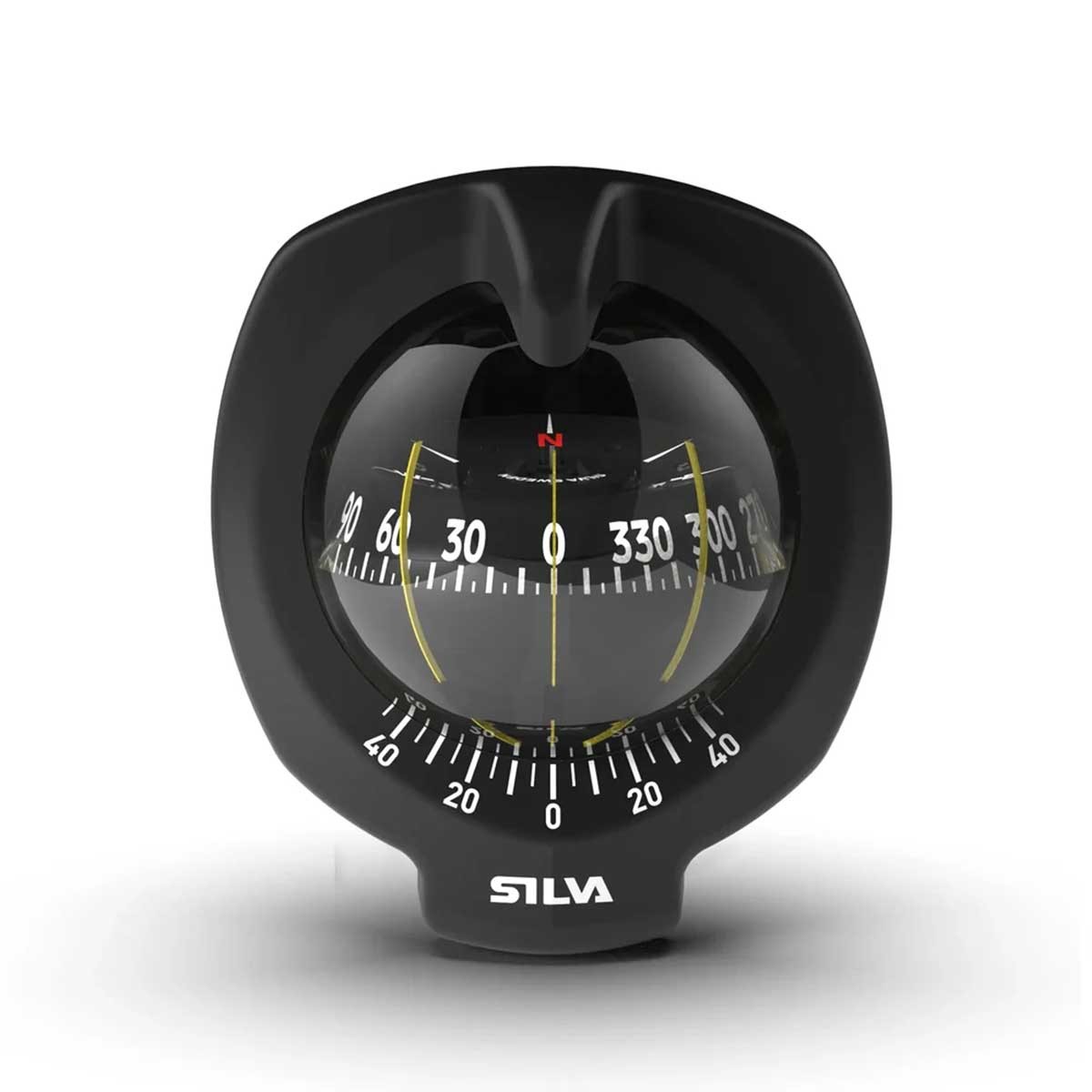

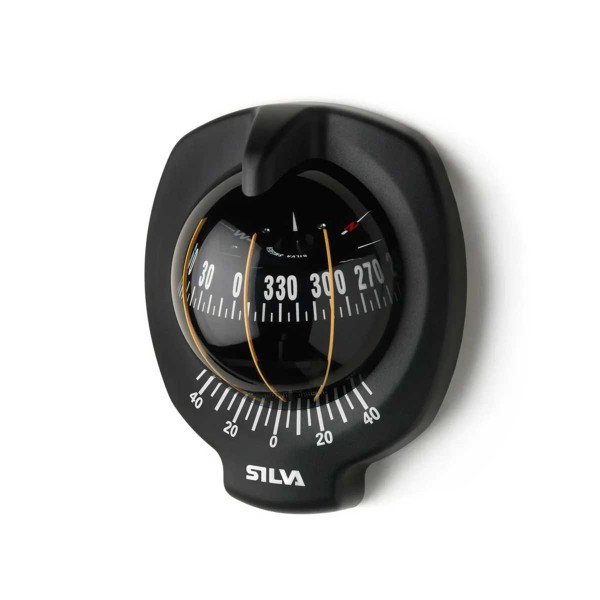

The Silva 102B/H compass mounts on a bulkhead and provides a stable bearing reading on sailboats, motorsailers, or large motor yachts. Its 100-mm capsule, three sight lines, +/-- 45° inclinometer, and 12-V red backlight facilitate navigation both day and night. Its gimbal suspension accommodates up to 45° of heel, and its protective cover shields the instrument.

€119.08 Tax included

-10%

€133.25

Pay in installments

3x 4x 10x 12x 24x 60x

Quantity

IN SUPPLIER STOCK

Fast delivery

119 loyalty points Earn €1.19 in rewards

Experts’ advice Contact us from 8 AM to 5 PM

Trustpilot reviews 94% satisfaction based on 3,800 reviews

Reseller Premium

Payment 100% secure

Reference SV-37198-00

Data sheet

Use: Motorboat, Sailboat
Mounting type: Vertical installation, On inclined surfaces
Rose diameter: 102mm

Description
Customer Reviews
Questions / Answers
Products also ordered

Description

SILVA - COMPASS 102B/H - A CLEAR BEARING EVEN WHEN HEELED

The Silva 102B/H is a bulkhead-mounted marine compass designed for sailboats, motor sailers, and large motor yachts. Its 100-mm capsule and gimbal suspension make it easy to read the heading when the boat is heeling. The 12 V red illumination makes it easy to read at night, while the built-in inclinometer is used to monitor the heel angle.

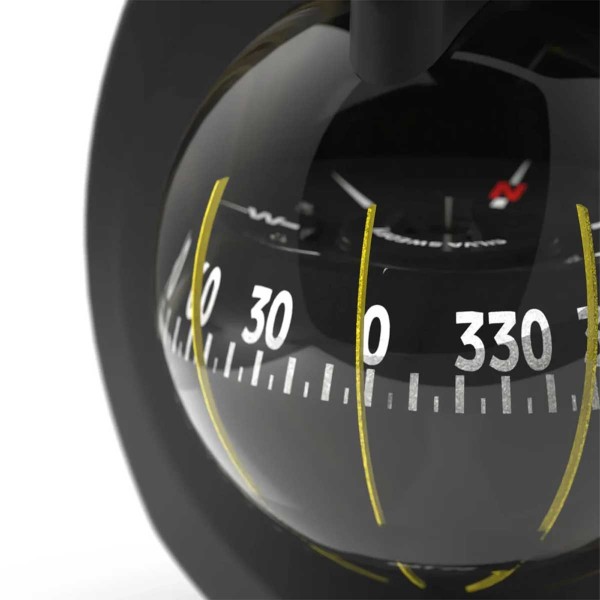

	READING THE COURSE WHILE SAILING The Silva 102B/H is designed to accommodate changes in trim and the boat’s movements. Its gimbal suspension accommodates heel up to 45°. The conical chart is read along its vertical edge and features graduations every 5°. Visible capsule: 100 mm Accuracy: ±- 0.5° Three sight lines for reading the heading from multiple positions Built-in inclinometer with a heel scale up to ±- 45° The main sight line is supplemented by two side sight lines positioned at 45°. This allows the heading to be read from the side of the boat or when the helm is not directly in line with the instrument.

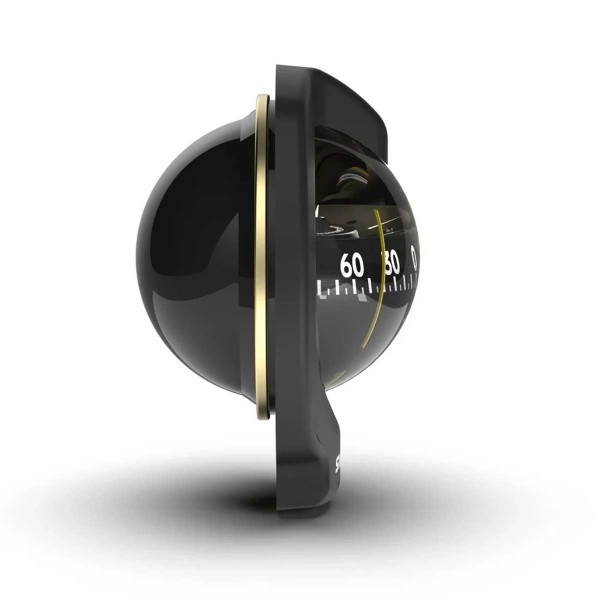

BULKHEAD MOUNTING The Silva 102B/H is designed for flush mounting on a bulkhead. It must be installed perpendicular to the boat’s longitudinal axis and far enough away from metal objects, high--speakers, wiper-, and other components that could interfere with the magnetic field. Installation on a bulkhead Built-in 12 V red light Recommended mounting angle: +10° to +110° Compensator available as an option if correction is necessary Compensation is recommended when the deviation exceeds 5°. The manufacturer also recommends checking the compass once a year, as well as after installing equipment that may cause magnetic interference. A protective cover is provided for when the compass is not in use.
