Compass 85
Ref.
SV-37171-0001

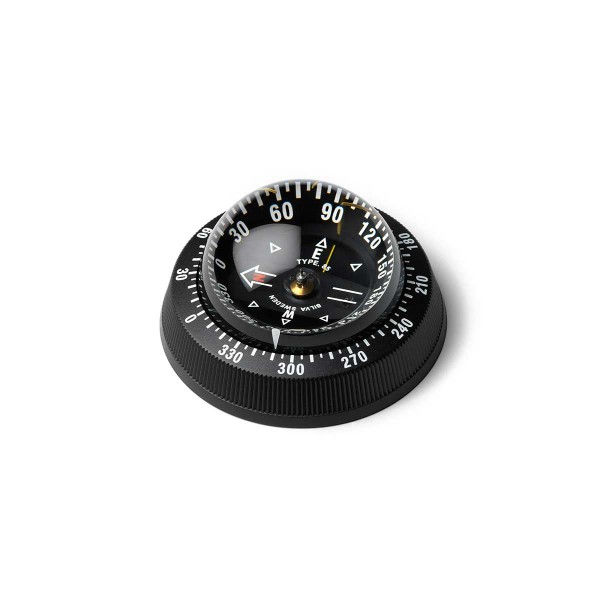

The Silva 85 compass is a compact, flush-mount model suitable for small motorboats, sailboats, rowboats, and light craft. Its 85-mm flat chart, graduated in 5° increments, its 360° rotating memory ring, and its bearing lines make it easy to track your course. Accurate to ±1°, it can handle up to 30° of heel and is installed flat on a stable surface.
SV-37171-0001
Data sheet
- Use
- Motorboat, Sailboat
- Mounting type
- Flat
- Rose diameter
- 85 mm
SILVA - COMPASS 85 - A COMPACT COMPASS WITH 360° COURSE MEMORY
The Silva 85 is a compact marine compass designed for small motorboats, sailboats, rowboats, and other light vessels. Its 85-mm flat dial provides a direct bearing reading. The outer ring rotates 360° to help you keep track of your course while navigating, and its low-profile design takes up minimal space on deck.
 |

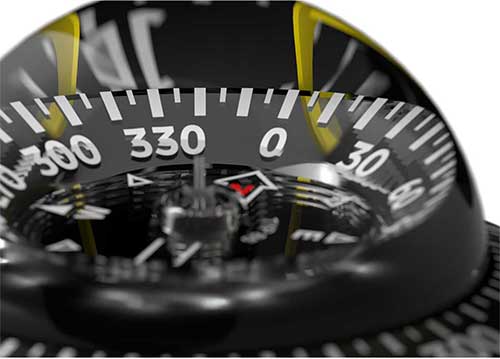

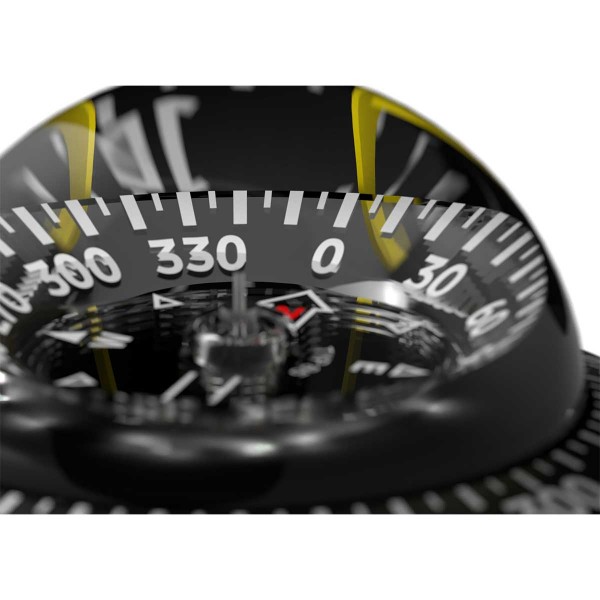

EASY COURSE READINGThe Silva 85 features an 85 mm flat chart graduated in 5° increments. A central bearing line and 45° side markers allow you to check the bearing from various positions on board. The graduated outer ring rotates 360° to help you maintain a course reference.
The compass can withstand roll and pitch up to 30°. Its compact design is particularly well-suited for situations where space at the navigation station is limited. |

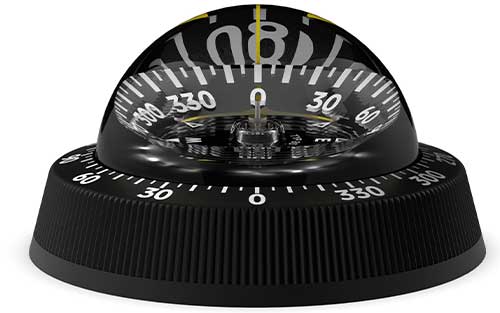

FLAT MOUNTING ON A STABLE SURFACESilva 85 must be installed horizontally, aligned with the boat’s longitudinal axis. A rigid base minimizes chart oscillations, particularly on fast boats. A rubber sheet can also be placed under the compass to dampen vibrations transmitted by the engine.
Silva-We recommend keeping the compass away from metal objects, high- speakers, windshield wipers, and other sources that may disrupt the magnetic field. If the deviation exceeds 5°, a professional can perform compensation using separate magnets.- |
 |
KEY FEATURES:
|
BOX CONTENTS:
|
