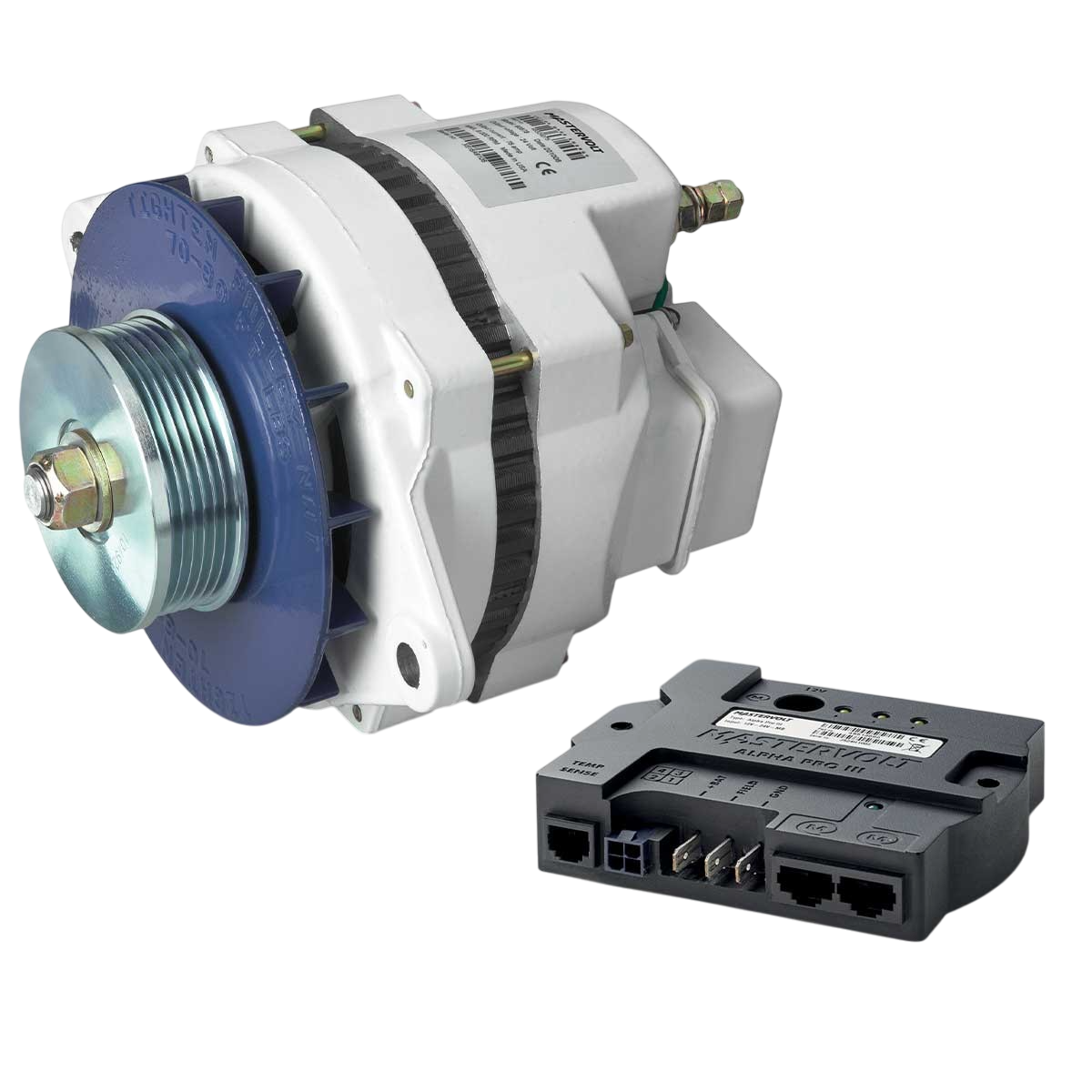

Alpha 24V/75A alternator with Alpha Pro III charge controller
Ref.
48624076
The Alpha 24V/75A Mastervolt alternator provides full charging power for your starter battery , even at low engine speeds , thanks to your boat's engine , unlike standard alternators .
It is compatible with all types of battery , insulated to protect it from overvoltage , short-circuits or interference .
The alternator comes with a Alpha Pro III charge regulator for greater efficiency and longer-lasting batteries, and includes a multi-groove pulley.
Read more Features
€1,294.90
Tax included
Public price
€1,446.00
Price tax excl. / DOM TOM
€1,079.08
48624076
Data sheet
- Voltage
- 24V
- Amperage
- 75A
MASTERVOLT- ALPHA 24V/75A ALTERNATOR WITH MULTI-GROOVE PULLEY
The alternator installed on the main engine is used to fully charge the starter battery . So, it's not the best for charging other batteries quickly and well , especially if you want to charge them in a short time or when they require more power .
There are two solutions to this problem:
- Install a charge regulator on the standard alternator . This will make the existing alternator work with 3-step charging technology instead of its standard 1-step method: the batteries will be charged faster and better .
- Take a second Alpha power alternator with charge regulator . This combination is specially designed for charging service batteries , so you can charge fast and stop your engine when you arrive.
The alternator features forced cooling through the action of the pulley fan , offering more power even at high temperatures . What's more, it features a variety of mountings to suit customers ' customized brackets .
Features ALPHA 24V/75A ALTERNATOR WITH MULTI-GROVE PULLEY
| Alpha Pro III charge controller | supplied |
| Total charging current | 75A |
| Belt cross-section | 2xA |
| Insulated | yes |
| Direction of rotation | 2 |
| Installation | six hours |
| Weight | 10.1 kg |
| Charging voltages Absorption | 28,5V |
| Float charging voltage | 26,5V |
| Nominal pulley diameter | 89 mm |
