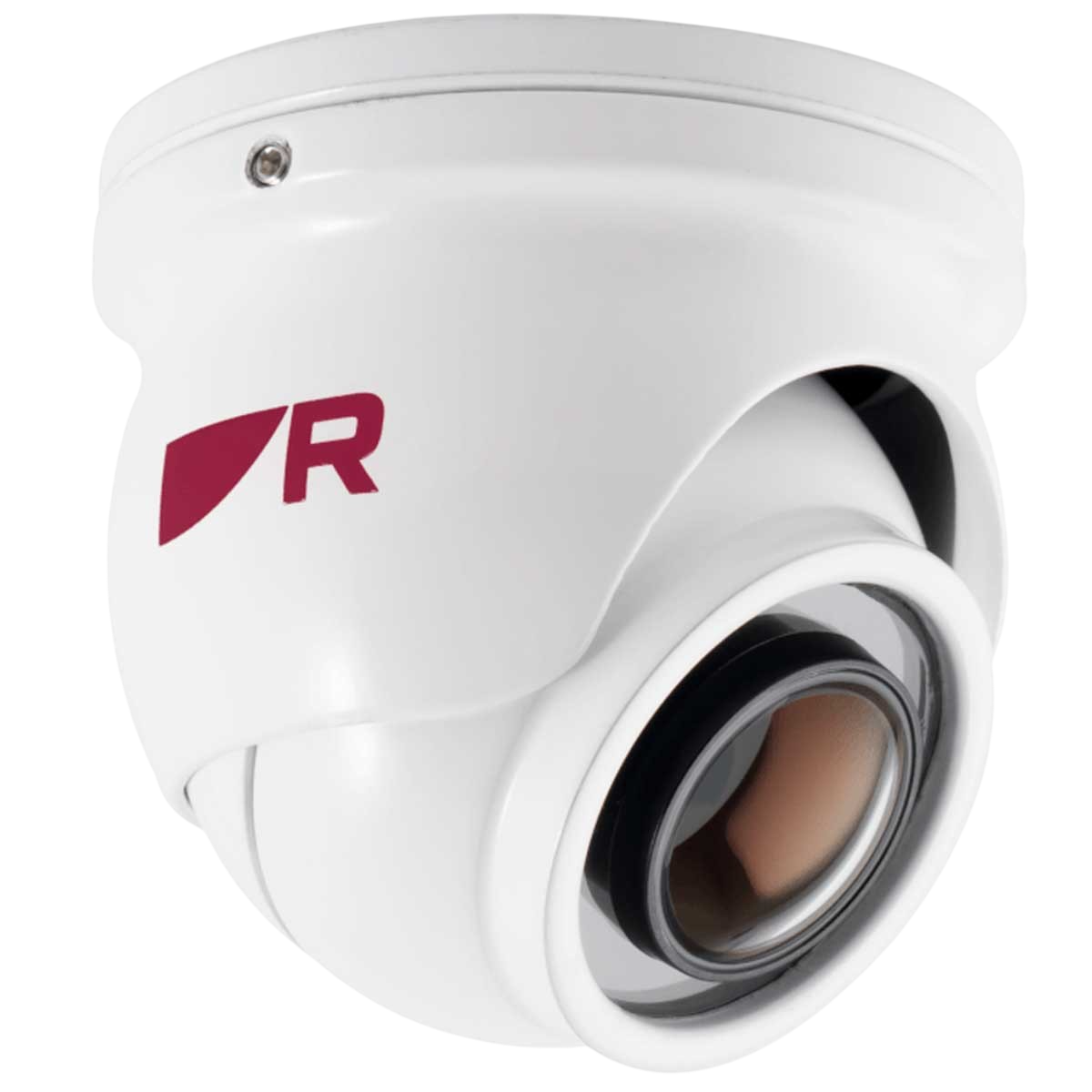

CAM300 IP marine camera

Ref. E70660

The CAM300 IP Raymarine is a mini marine day and night camera with ultra-wide field of view designed for Raymarine Axiom* chartplotters. The CAM300 is ideal for monitoring blind spots , your crew or recording and observing fishing from the cockpit.

Completely waterproof to IP66, this camera is designed for sheltered or deck installations. Thanks to its compact size , it's super-simple to install on any boat.

*compatible with all Axiom devices running LightHouse 4.2 (OS) or higher.

Read more Features
€699.90 Tax included
Public price
€714.00
🔥 Black Friday
Public price
€714.00
€630.00
with the code BLACK24
-11%
Offre valable encore
Price tax excl. / DOM TOM €583.25
Quantity
By buying this product you can collect up to 699 loyalty points. Your cart will total 699 points that can be converted into a voucher of €6.99.
E70660

Data sheet

Description

RAYMARINE - CAM300 IP MARINE CAMERA - COMPACT SURVEILLANCE CAMERA

The CAM300 camera from Raymarine offers a crystal-clear HD video imaging experience that redefines on-board surveillance.

Featuring a 3 MP CMOS sensor, it guarantees images of exceptional resolution up to 1080p , capturing every detail with remarkable precision . Even in low-light conditions, the integrated infrared emitters ensure optimum visibility up to 10 meters (33 ft.) for effective near-field surveillance. What's more, its ultra-compact size allows it to blend seamlessly into your vessel, providing a discreet and elegant surveillance solution.

Finally, you'll be able to place up to 4 CAM300 cameras thanks to its ability to display up to four video streams simultaneously on a single Axiom screen, so you can monitor multiple angles at a glance.



Champ de vision ultra-large de la cam300 raymarine

ULTRA-WIDE FIELD OF VIEW

The Raymarine CAM300 mini day/night camera is a visible-light camera with a wide field of vision .

Combine the CAM300 with the Raymarine AR200 sensor and make smarter navigation decisions using ClearCruise Augmented Reality to superimpose AIS targets , waypoints and map objects on your Axiom plotter screen.



TECHNICAL SPECIFICATIONS OF THE RAYMARINE CAM300 MARINE CAMERA

VIDEO
Day/Night True day/night operation with mechanical IR cut filter
Automatic gain control
Multiple levels / supported
Scanning system Progressive scan
Mirror display Horizontal and vertical
Video compression / processing H.264 codec / dual stream
Illumination 6 x 850 nm infrared - 10-meter range
Frame rate 25 fps
GENERAL
Dimensions Base diameter: 59.5 mm (2.34 in.), Height: 52.9 mm (2.08 in.)
Weight 0.420 kg (0.926 lb)
Nominal supply voltage 12 V DC
Operating voltage range 10.8 V DC to 15.6 V DC
Power consumption 1W nominal at 12V / 1.8 W maximum (LEDs on)
Relative humidity 85% max
Water resistance IP66
Storage temperature -30°C to +70°C (-22°F to 158°F)
Operating temperature -20°C to +65°C (-4°F to 149°F)

MAIN FEATURES :

  • HD imaging
  • Ultra-compact
  • IP66 waterproof housing
  • Day & night camera
  • Multiple mounting options

BOX CONTENTS :

  • 1 - Raymarin CAM300 marine camera
  • 1 - 670 mm cable (RJ45 + power connector)
  • 3 - Fixing screws
  • 1 - Hexagonal key (Allen key)
  • 1 - Waterproof seal
  • 1 - PDF documentation

Download

CAM300 camera manual Raymarine

Installation and operation manual for Raymarine CAM300 marine camera

Download (1.59M)
