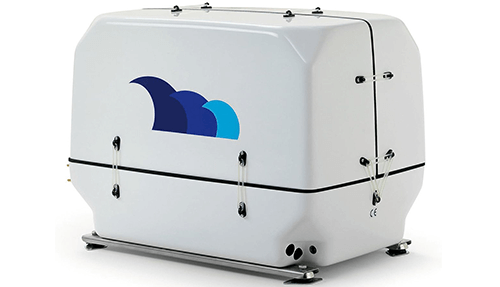

Groupe électrogène Paguro 14000 – 14 kVA

ULTRA QUIET & ROBUST

Reinforced acoustic capsule + high-density acoustic foam, internal/external anti-vibration dobule, for just 54 dB at 7 m, suitable for cramped interiors.

• ~54 dB at 7 m
• Removable capsule
• 4 internal and 4 external silent-blocks
• AISI 316 L stainless steel environment

PERFORMANCE & CONTROL

Synchronous brushless alternator + LCD box, automatic protections, load/frequency indicators, shutdown in case of problems. 12 V electric start.

• Remote control box (15 m cable)
• Overheat/low oil shutdown
• Load & rpm indicators
• Automatic start available

OPTIMIZED INSTALLATION

Dimensions 860×580×650 mm, weight 210 kg, self-priming pump and stainless steel heat exchanger included. Suitable for installation in technical holds.

• 860×580×650 mm - 210 kg
• Easy access for maintenance
• Self-priming pump
• AISI 316 L stainless steel heat exchanger
• Anti-vibration mounts supplied

INSTALLATION KITS AVAILABLE

Installation kits are not included and are available in three versions:

Water intake kit :

• Contents: hoses, grommets, valves, water filters, etc.
• Function: manages seawater intake.
• Use: essential for cooling.

Silencer kit :

• Contents: final silencer, collar, elbows, etc
• Function: also manages gas evacuation.
• Use: reduces exhaust noise.

Kit with seawater/exhaust separator:

• Contents: water/gas separator, silencer, pipes..
• Function: isolates water from gases.
• Use: reduces odors, humidity, noise.

Installation kit available on request. On-line soon.

MAIN POINTS :

• Muffler
• Brushless alternator
• Robust Lombardini motor
• Integral liquid cooling
• Soundproof removable capsule

CONTENTS OF THE BOX :

• 1 - Paguro 14000 generator set
• 1 - Remote control box (15 m cable)
• 1 - Silentblocks
• 1 - Basic connectors
• 1 - PDF documentation
