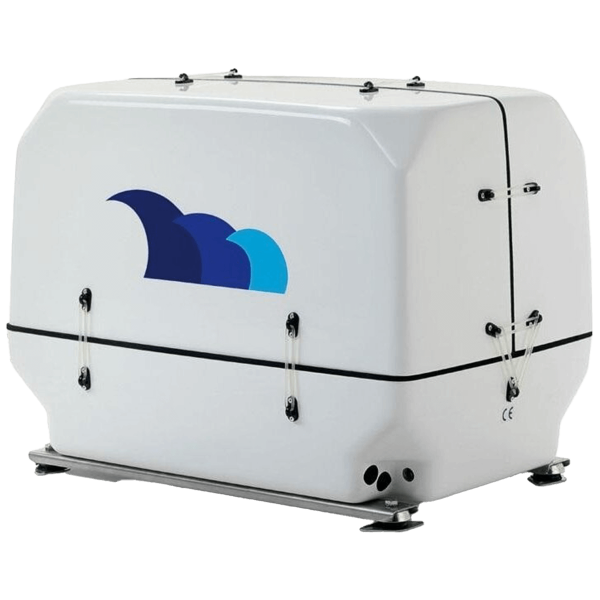

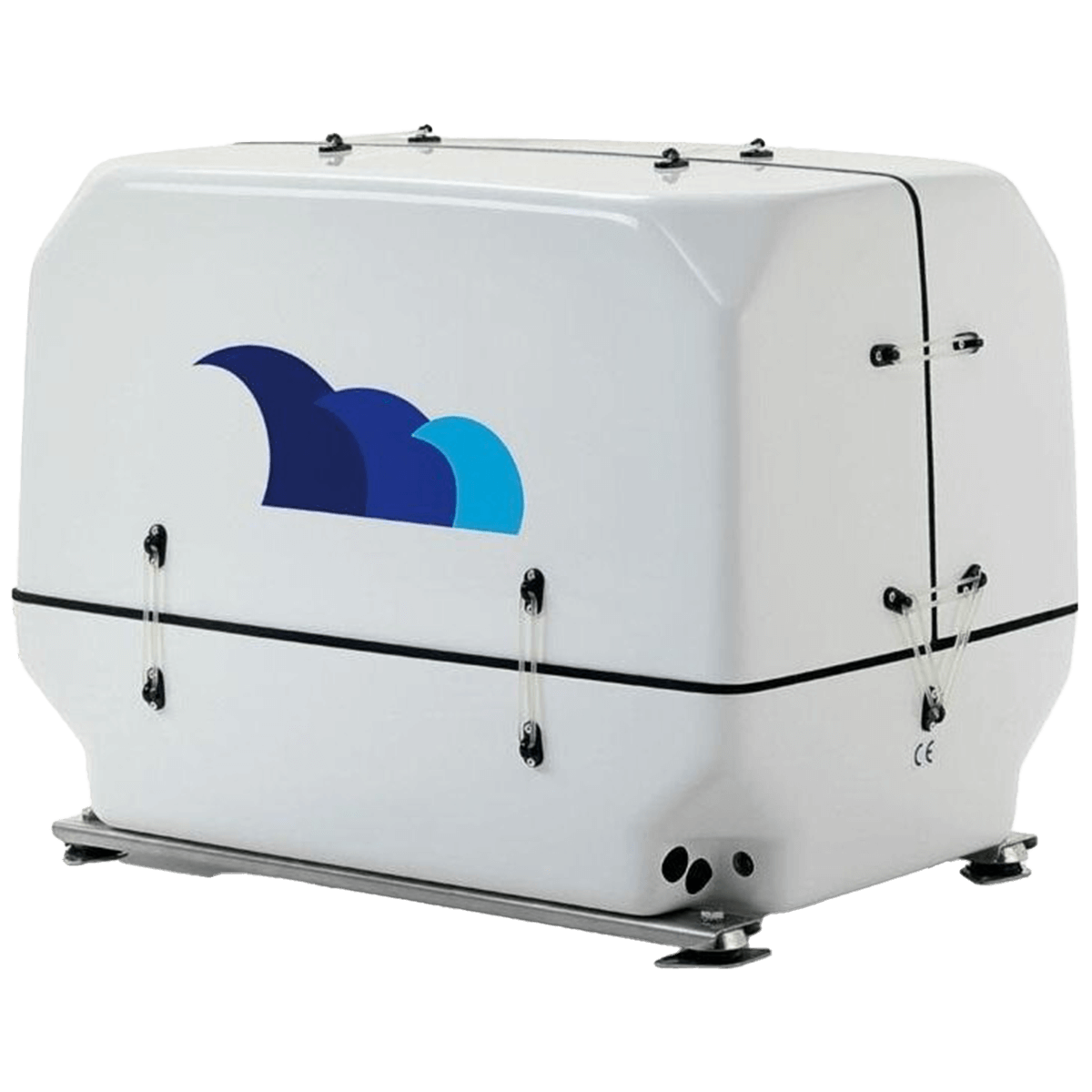

Groupe électrogène Paguro 18000 – 18 kVA

Ref. PGAP18023050S0

VTE's Paguro 18000 is an 18 kVA (18 kW), 3000 rpm, three-phase marine generator set, powered by a 4-cylinder Lombardini engine and a water-cooled Brushless generator.

Quite compact and silent for its power, it incorporates a remote control box. It offers reliable power for large on-board equipment.

Read more Features
€16,666.58
Public price
€17,700.00
Price tax excl. / DOM TOM €16,666.58
Quantity
OUT OF STOCK
By buying this product you can collect up to 16666 loyalty points. Your cart will total 16666 points that can be converted into a voucher of €166.66.
PGAP18023050S0

Data sheet

new
📦 Bulky parcel
Power (kW)
Over 12 kVA
Output voltage
400V three-phase, 230 V
Noise level
Quiet (54-60 dB)
Dimensions
Standard
Start-up type
Electric with remote control
Description

VTE - Paguro 18000 marine generator - Pro marine power and silence

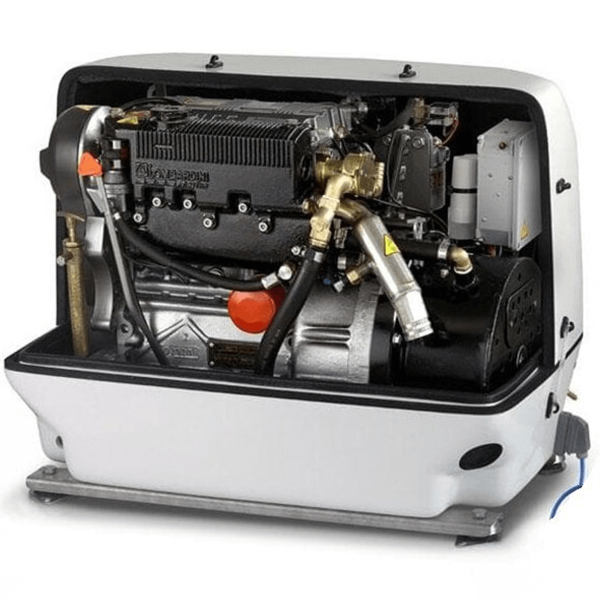

The Paguro 18000 offers 18 kVA (18 kW) with a Lombardini 4-cylinder engine at 3000 rpm and a Brushless synchronous generator cooled by water via a stainless steel heat exchanger. Its fully soundproofed enclosure and remote control box guarantee comfort and safety on board.

Compact despite its power, it features a remote control box (15 m cable), load indicators, frequencies and automatic shutdown in the event of a fault.

⚠️ Technical product: Comptoir Nautique strongly recommends that installation be carried out by a qualified professional.

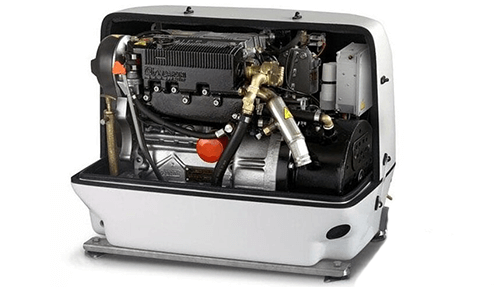

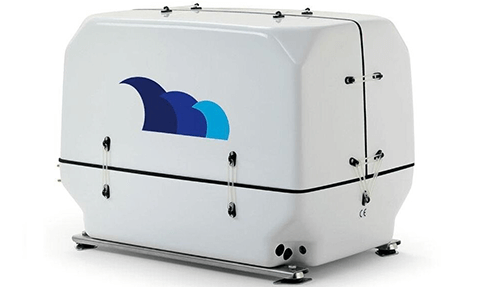

Groupe électrogène marin VTE Paguro 18000 insonorisé et puissant

SILENCE & ROBUSTNESS

Multi-layer GRP acoustic capsule, double anti-vibrations on 4 internal and external supports. Noise level of just 54 dB at 7 m, ideal for restricted environments.

  • ~54 dB at 7 m
  • 2-part removable capsule
  • 4 internal + 4 external silent-blocks
  • AISI 316 L stainless steel components exposed to water

THREE-PHASE POWER & CONTROL

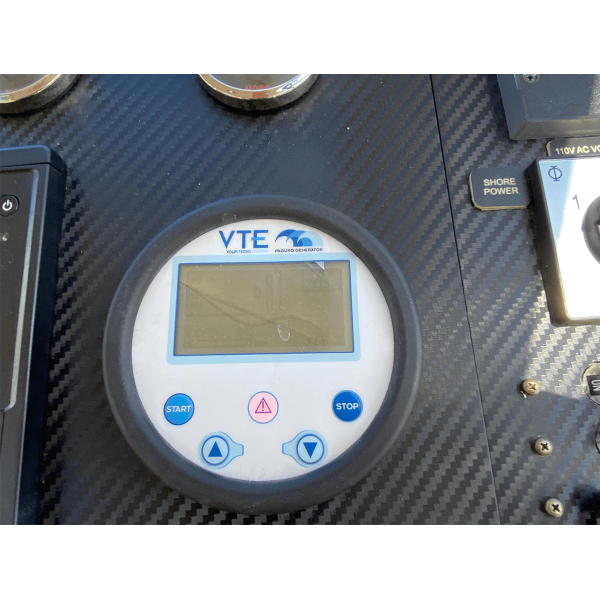

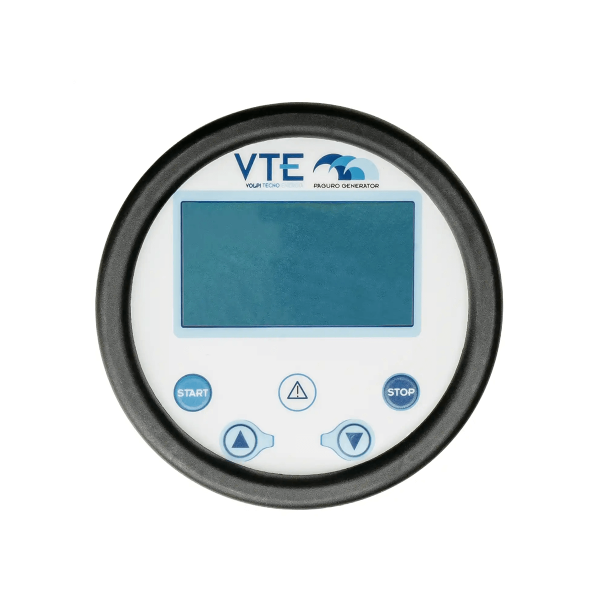

Three-phase 400 V generator with remote-controlled LCD box (15 m). Integrated automatic protection (oil, temperature), load indicator and hour meter.

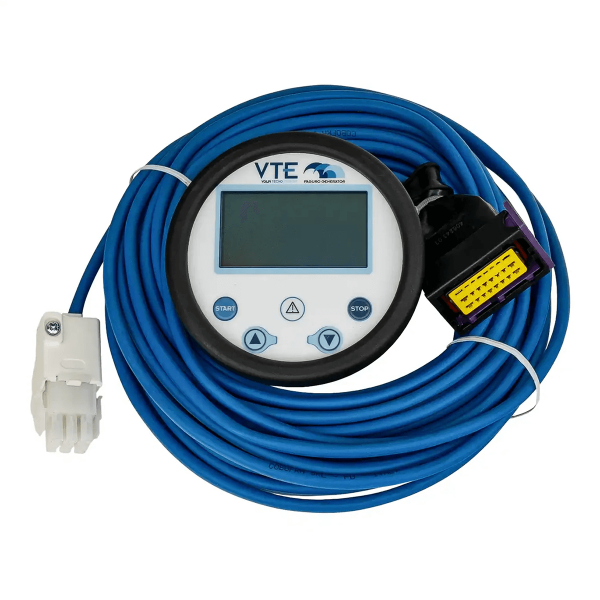

  • Remote control box (15 m cable)
  • Automatic fault shutdown
  • Load & frequency indicators
  • Optional auto start

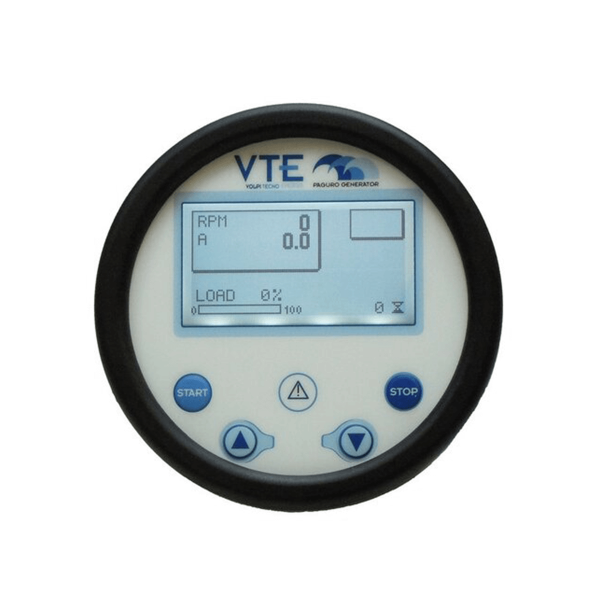

Boitier de commande à distance avec 15m de câble des groupes électrogènes marins VTE Paguro

Groupe électrogène marin VTE Paguro 18000 installation et accès facile pour entretien

EASY INSTALLATION

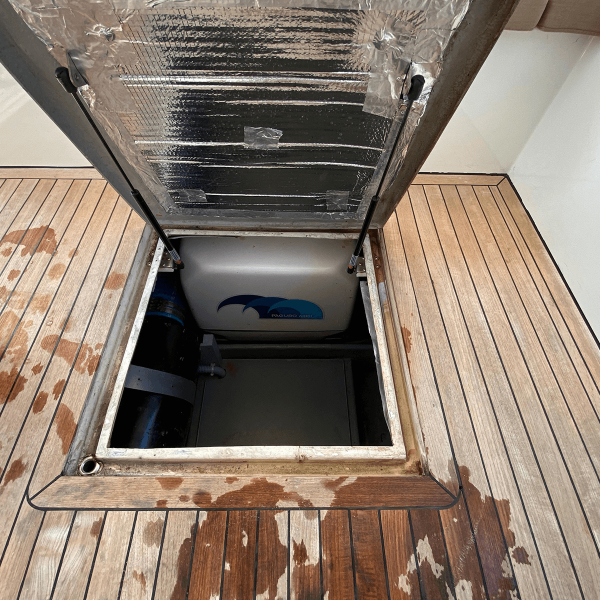

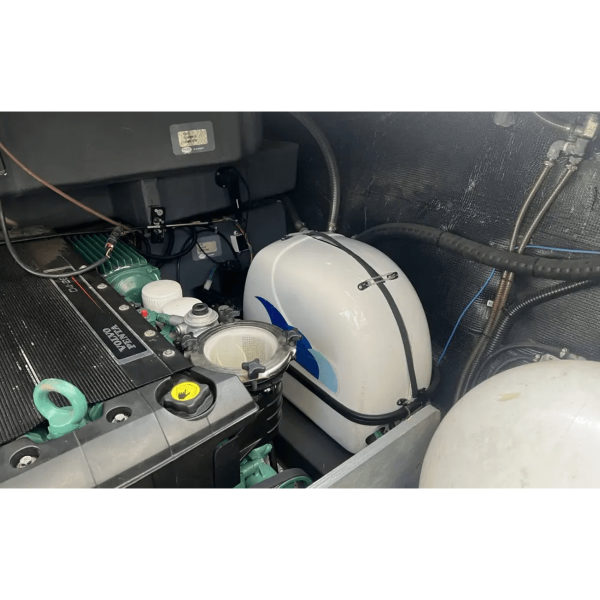

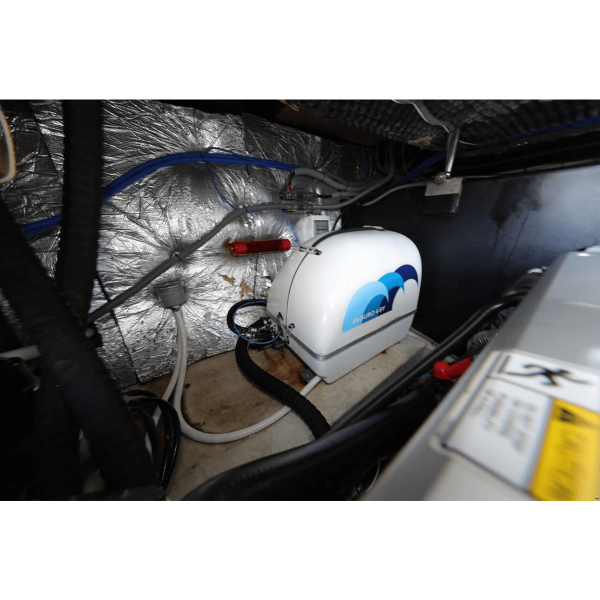

With its dimensions of 970×580×650 mm and a weight of 230 kg, the Paguro 18000 can be installed in technical holds. Self-priming pump-and stainless steel heat exchanger included.

  • 970×580×650 mm
  • Weight: 230 kg
  • Self-priming pump-
  • AISI 316 L stainless steel heat exchanger included

INSTALLATION KITS AVAILABLE

Installation kits are not included and are available in three versions:

Water intake kit :

  • Contents: hoses, grommets, valves, water filters, etc.
  • Function: manages seawater intake.
  • Use: essential for cooling.

Silencer kit :

  • Contents: final silencer, collar, elbows, etc
  • Function: also manages gas evacuation.
  • Use: reduces exhaust noise.

Kit with seawater/exhaust separator:

  • Contents: water/gas separator, silencer, pipes..
  • Function: isolates water from gases.
  • Use: reduces odors, humidity, noise.

Installation kit available on request. On-line soon.

Kits d'installation des groupes électrogènes VTE Paguro

Paguro 18000 technical specifications

Max. power 18 kVA
Continuous power 18 kW
Output voltage 230V - 400V three-phase - 50 Hz
Motor manufacturer Lombardini 1404
Motor speed 3000 rpm
Cooling Engine liquid + generator
Noise level ~54 dB at 7 m
Dimensions 970 × 580 × 650 mm
Weight 230 kg
Starting Electric with remote box
Starting voltage 12 V

MAIN POINTS :

  • Remote control
  • Liquid cooling
  • 4-cylinder Lombardini motor
  • Three-phase brushless generator
  • Removable soundproof enclosure

BOX CONTENTS :

  • 1 - Paguro 18000 generator set
  • 1 - Remote control box (15 m cable)
  • 1 - Silentblocks
  • 1 - Basic connectors
  • 1 - PDF documentation

Download

VTE Paguro 18000 group manual

VTE Paguro 18000 marine generator installation and operating manual (EN)

Download (2.57M)
