D0290 Morse steering box
Ref.
D290
The D0290 Morse mechanical steering gear is a device for controlling boat steering from the steering wheel. It is used on outboard boats with motors up to 185 HP. With this unit, port to starboard is achieved in 3.6 turns of the steering wheel.
The right-hand bracket (D299) must be purchased to use the box.
Read more Features
€148.90
Tax included
Public price
€166.44
🤩
Sales
Public price
€166.44
€141.90
with the code
SOLDES25
-14%
Offre valable encore
Price tax excl. / DOM TOM
€124.08
D290
Data sheet
- Max. motor power
- 185 CV
- Number of revolutions
- 3,6
- Enclosure type
- Management

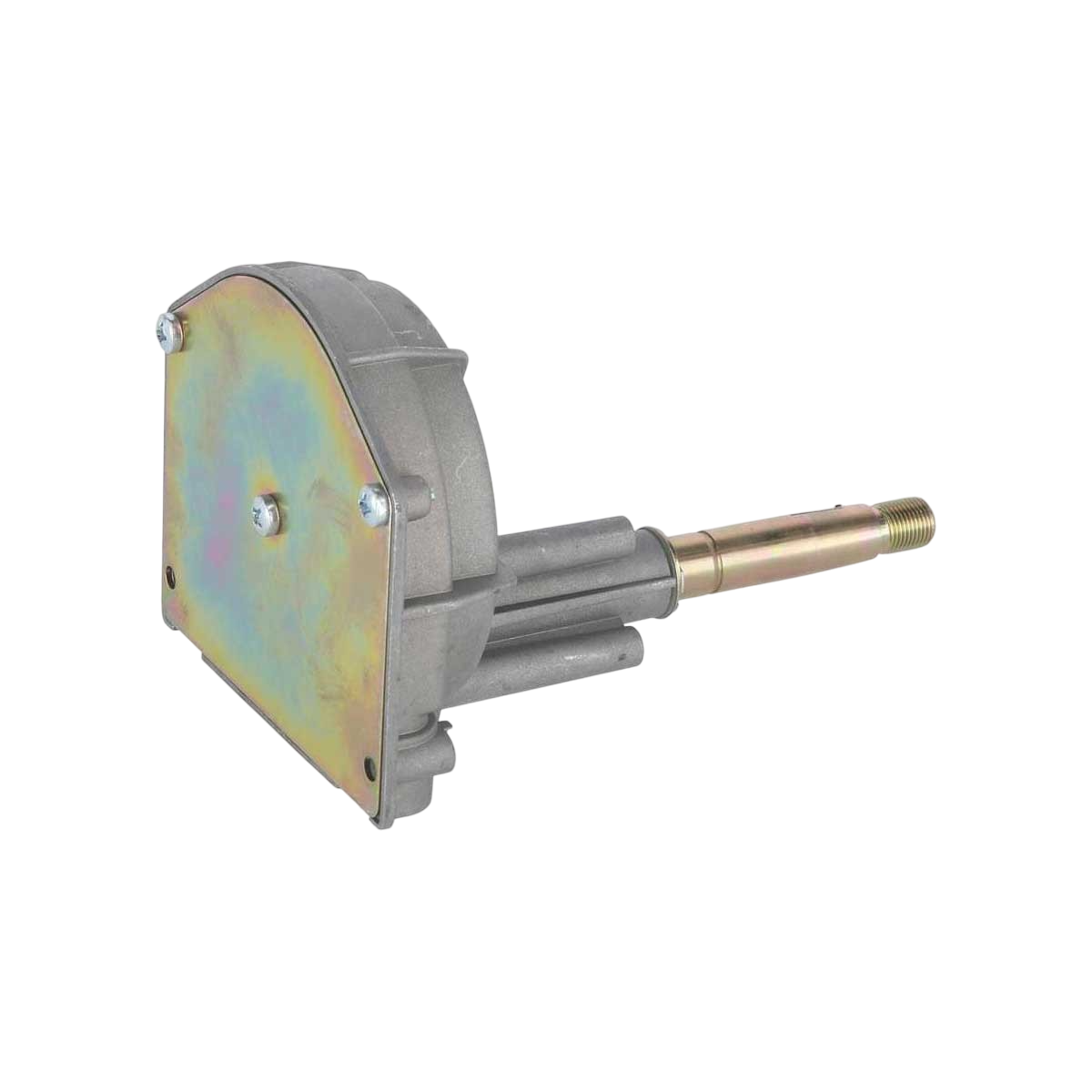

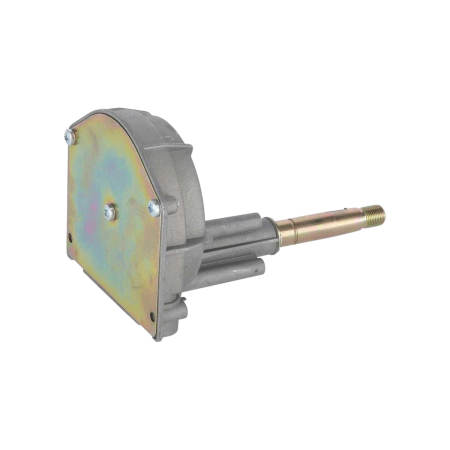

SEASTAR - D0290 Morse steering box for outboard motor max 185HP
It consists of a metal housing which accommodates the steering cable and a 3/4" tapered shaft which attaches to the steering wheel. The steering box mounts on the steering wheel and transmits movement to the rudder or motor.
Technical specifications :
- 3/4" tapered shaft
- Thrust 140 kg
- Port to starboard in 3.6 turns of steering wheel
- Cable: stroke 230mm
- Axle diameter: 6.2 mm
