Mamba WRG12 gearbox
Ref.
89200041
The Lewmar Mamba WRG12 gearbox is designed to give a steadier, more stable helm on Mamba steering systems. Robust and durable in the marine environment, it stays in tune over time thanks to its lifetime lubrication.
Its mounting close to the rudder and its compatibility with a transmission make it an ideal solution for boats from 13 to 20 m, for both new and replacement applications.
Read more Features
€2,770.75
Public price
€2,915.95
❄️
Frozen Price
Public price
€2,915.95
€2,554.75
with the code
DISCOUNT26
-12%
Offre valable encore
89200041
Data sheet
- Product type
- Reducer
LEWMAR - Mamba WRG12 gearbox

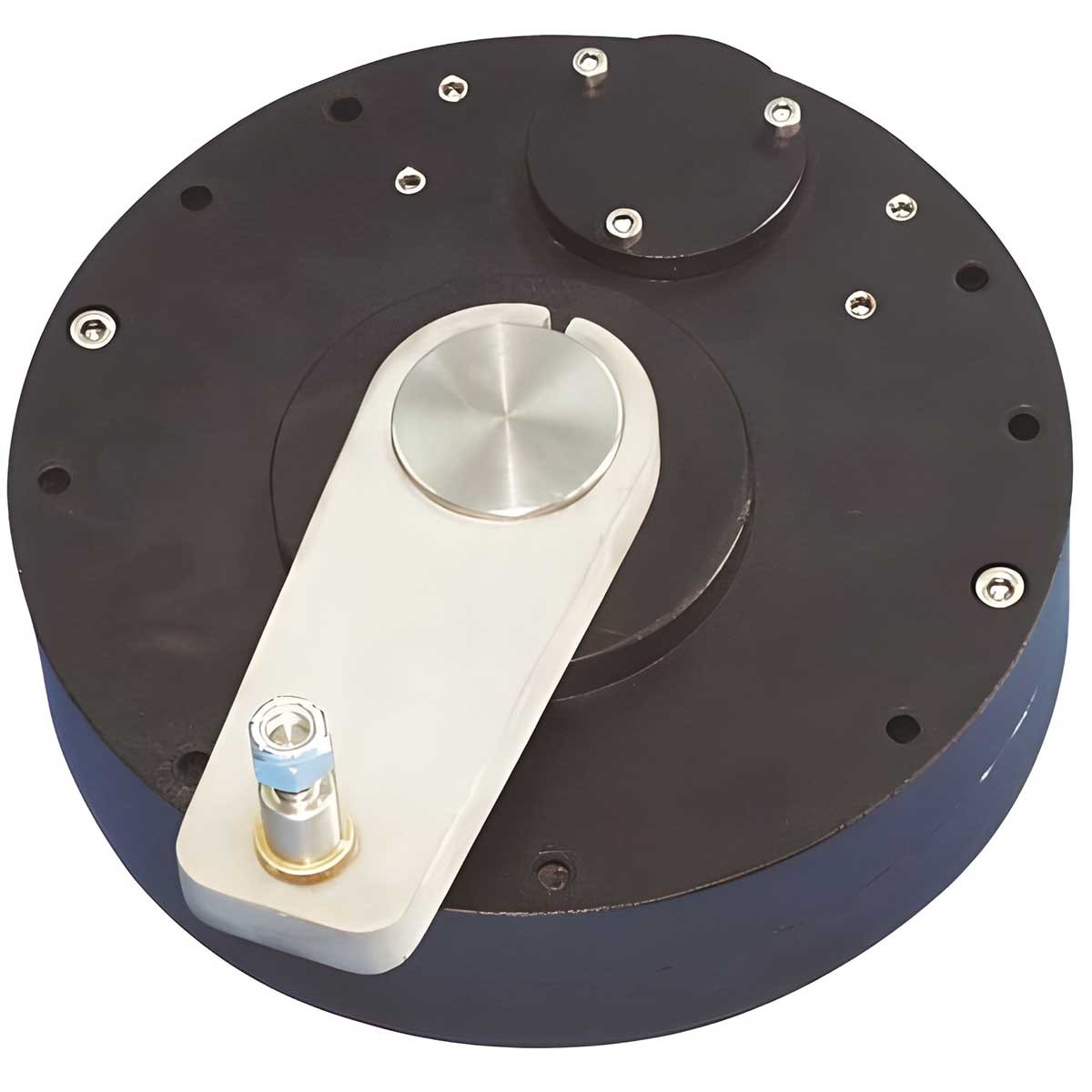

The Mamba WRG12 reducer is the centerpiece of a Lewmar Mamba bar transmission, for units that demand torque and control. It relies on precision spur gears, designed to work cleanly over time.
With a marine-grade aluminum housing, stainless steel or bronze-nickel-aluminum alloy axles and ball and needle bearings, everything is designed to last, without making life difficult for you. The gearbox is lubricated for life and designed to stay in tune, season after season.
 |
Spur gears and precisionThe WRG12 uses precision cut-tooth spur gears. This choice ensures a clean, constant transmission, with a mechanism that can take the strain without becoming slack too quickly.
The gearbox is lubricated for life and designed to guarantee a perfect fit. For you, this means smoother steering and less maintenance. |

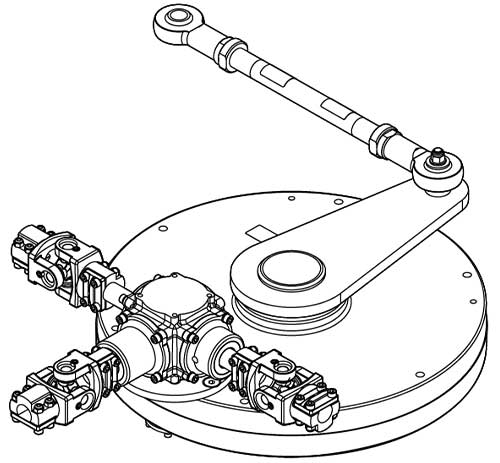

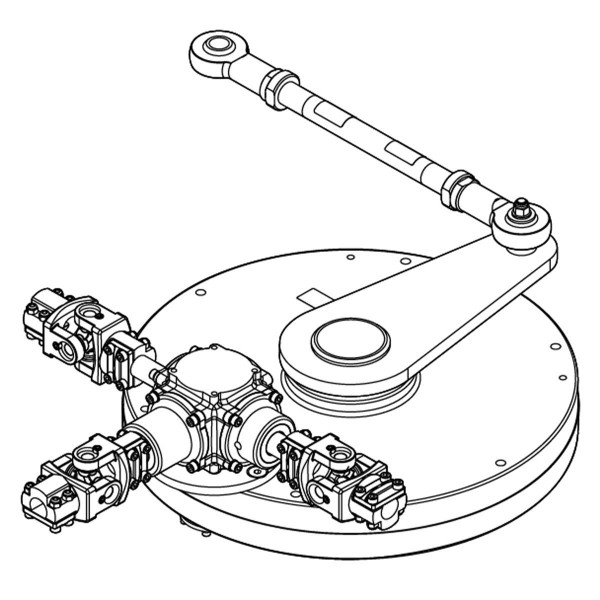

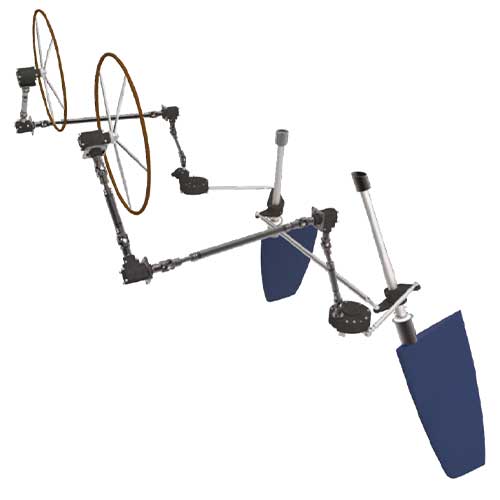

Easy integration into the Mamba systemThe WRG12 fits logically into your boat near the rudder, or can be integrated into existing kinematics. It can be mounted anywhere from 20 cm to 2 m from the rudder, depending on cockpit layout.
The WRG series can be fitted with an integrated gearbox, which can be mounted on either side and rotated to the desired angle. On WRG12 and above, a linkage bar transmits the force directly under the cockpit floor, for consistent, well-guided steering. |
 |
MAMBA WRG12 GEARBOX FEATURES
|
BG12 | |
|---|---|
| Transmission ratio | 7:1 |
| Mid-stroke advantage | 10.8:1 |
| Flywheel turns between two stops | 2.4.8 |
| Max rudder torque | 5150 Nm |
| For boats | Between 13 and 20 m |
MAIN POINTS :
|
BOX CONTENTS :
|
