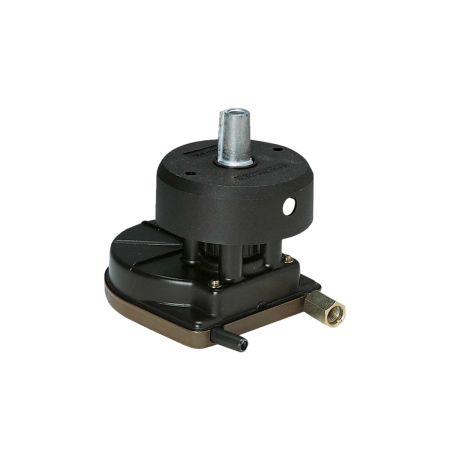

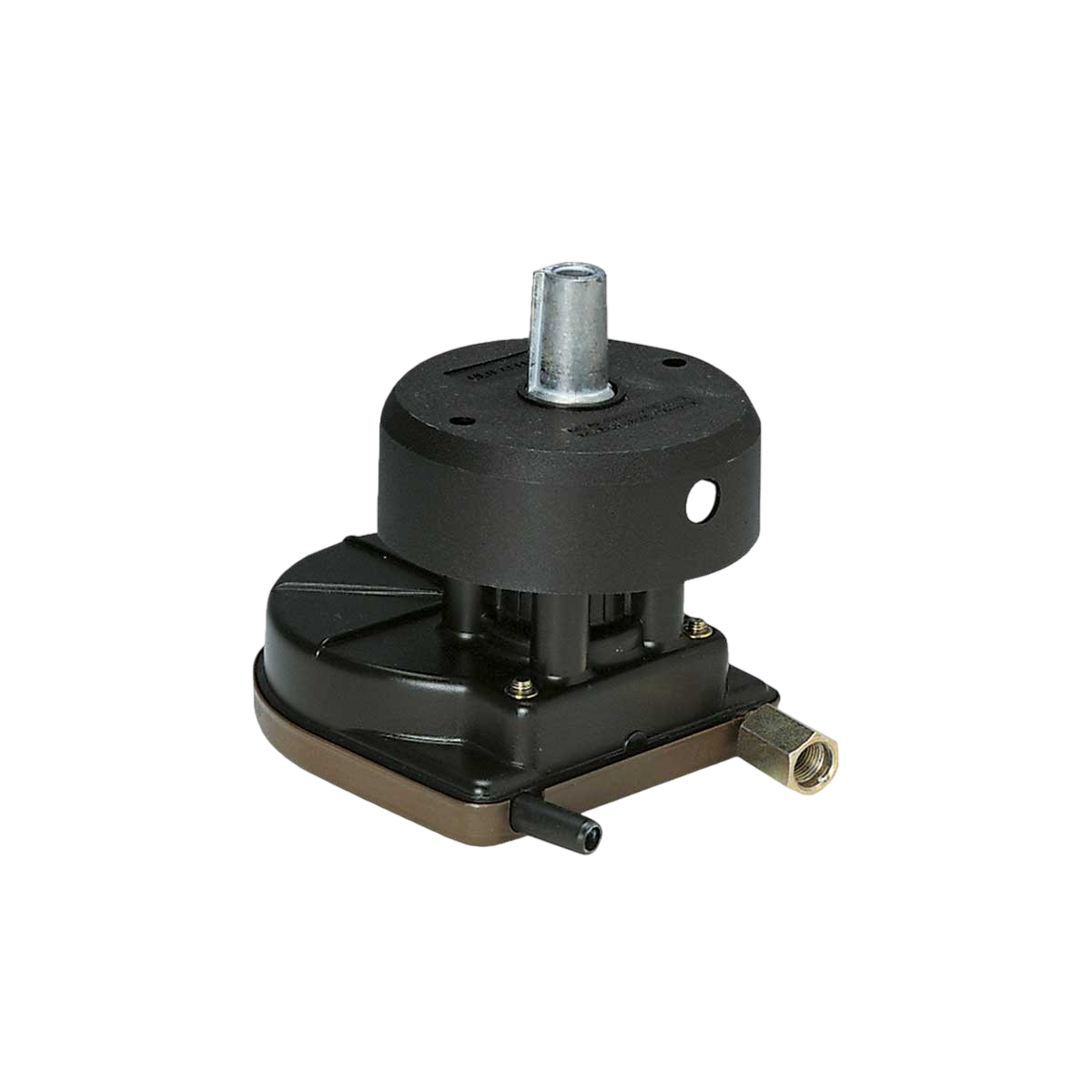

Mechanical steering gear T 67
Ref.
416756
The T 67 mechanical steering gear is a device that controls the boat's steering from the steering wheel. With this unit, port to starboard can be achieved in 2.5 turns of the steering wheel.
It also features an integrated bracket for 90° installation . The box is designed for use on outboard boats with motors of up to 55 HP .
Read more Features
€77.90
Tax included
Public price
€87.04
Price tax excl. / DOM TOM
€64.92
416756
Data sheet
- Max. motor power
- 55 CV
- Number of revolutions
- 2,5
- Enclosure type
- Management
ULTRAFLEX - T67 mechanical steering box
It consists of a stainless steel housing with adjustable friction that accommodates the steering cable and a 3/4" tapered shaft that attaches to the steering wheel. The steering box mounts on the steering wheel and transmits movement to the rudder or motor .
Technical specifications :
- 3/4" tapered shaft
- Port to starboard in 2.5 turns of steering wheel
- Cable: 230mm travel
- Minimum steering cable bend radius: 200 mm
- Maximum steering wheel diameter: 380 mm
Supplied without cable and steering wheel
Complies with EN 29775 & ABYC standards
Compatible with optional M58 cable (416760)
