T 85 mechanical steering gear

Ref. 429440

The T 85 mechanical steering gear is a device that controls the boat's steering from the steering wheel. With this unit, port-to-starboard steering is achieved in just 3 turns of the wheel.

It also features an integrated bracket for 90° installation. The box can be used on outboard, sterndrive or inboard boats with engines up to 300 HP.

Read more Features
€78.88
Public price
€90.10
-12%
Price tax excl. / DOM TOM €78.88
Quantity
IN SUPPLIER STOCK
By buying this product you can collect up to 78 loyalty points. Your cart will total 78 points that can be converted into a voucher of €0.78.
429440

Data sheet

Max. motor power
300 HP
Number of revolutions
3
Enclosure type
Management
Description

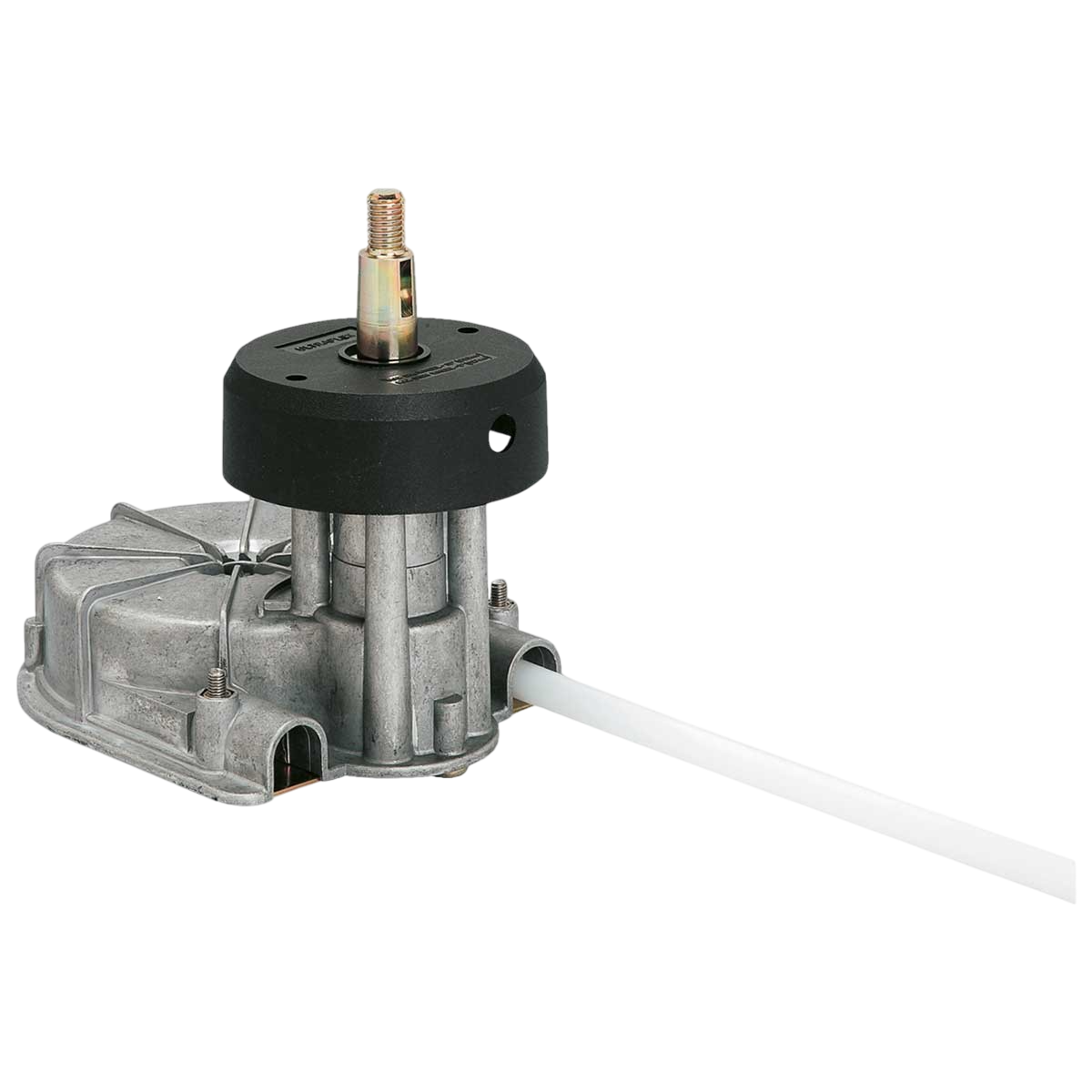

ULTRAFLEX - T85 mechanical steering box

It consists of a stainless steel housing with adjustable friction that accommodates the steering cable and a 3/4" tapered shaft that attaches to the steering wheel. The steering box mounts on the steering wheel and transmits movement to the rudder or motor.

Technical specifications :

  • 3/4" tapered shaft
  • Port to starboard in 3 turns of steering wheel
  • Cable: 228 mm travel
  • Minimum steering cable bending radius: 200 mm
  • Maximum steering wheel diameter: 406 mm

Supplied without cable and steering wheel

Complies with EN 28848 & ABYC P17 standards

Compatible with optional M66 cable (429441)
