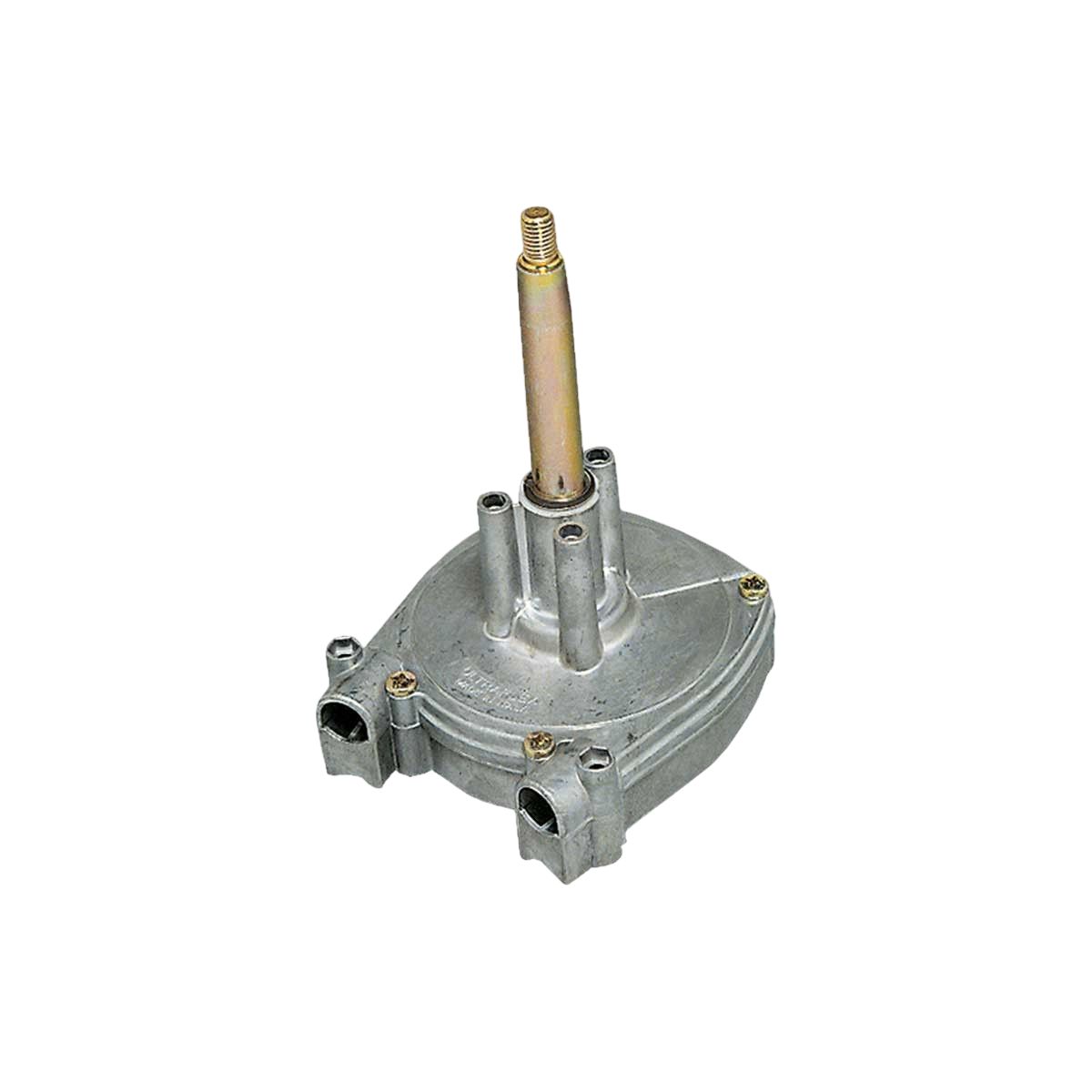

T 71FC mechanical steering gear
Ref.
416539
The T 71FC mechanical steering gear with flexible planetary gearing is a device that controls the boat's steering from the steering wheel. With this gearbox, port to starboard is achieved in 3.8 turns of the steering wheel.
It also features an integrated bracket for 90° installation . The box can be used on inboard or Z-drive boats up to 10.50 m and outboards with engines up to 235 HP .
Read more Features
€104.90
Tax included
Public price
€116.88
Price tax excl. / DOM TOM
€87.42
416539
Data sheet
- Max. motor power
- 235 CV
- Number of revolutions
- 3,8
- Enclosure type
- Management
ULTRAFLEX - Mechanical steering gear T 71FC
The steering gear is mounted on the steering wheel and transmits movement to the rudder or motor . It fits perfectly into a small space . It consists of a stainless steel housing with adjustable friction that accommodates the steering cable and a 3/4" tapered shaft that attaches to the steering wheel.
Technical specifications :
- 3/4" tapered shaft
- Port to starboard in 3.8 turns of steering wheel
- Cable: 228 mm travel
- Minimum steering cable bend radius: 200 mm
- Maximum steering wheel diameter: 406 mm
Supplied without cable, steering wheel and cover
Complies with EN 28848 & ABYC P17 standards
Compatible with optional M66 cable (429441)
